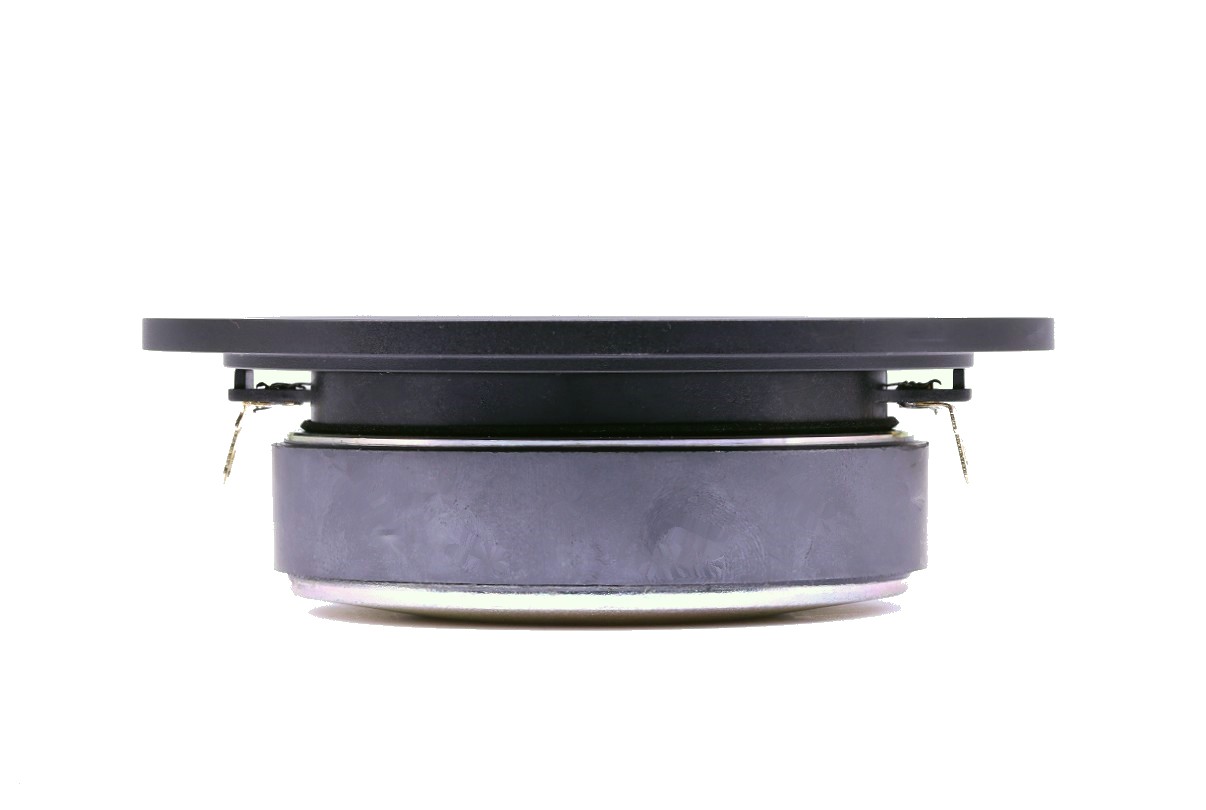

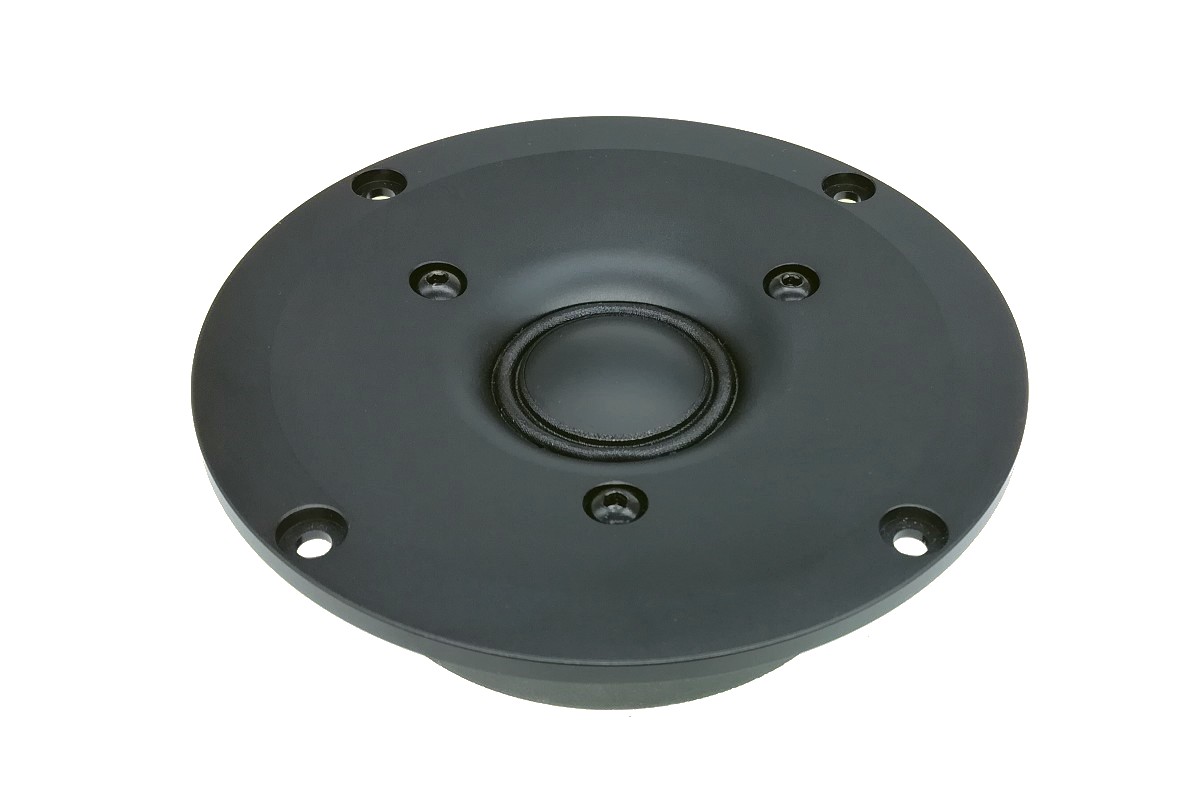

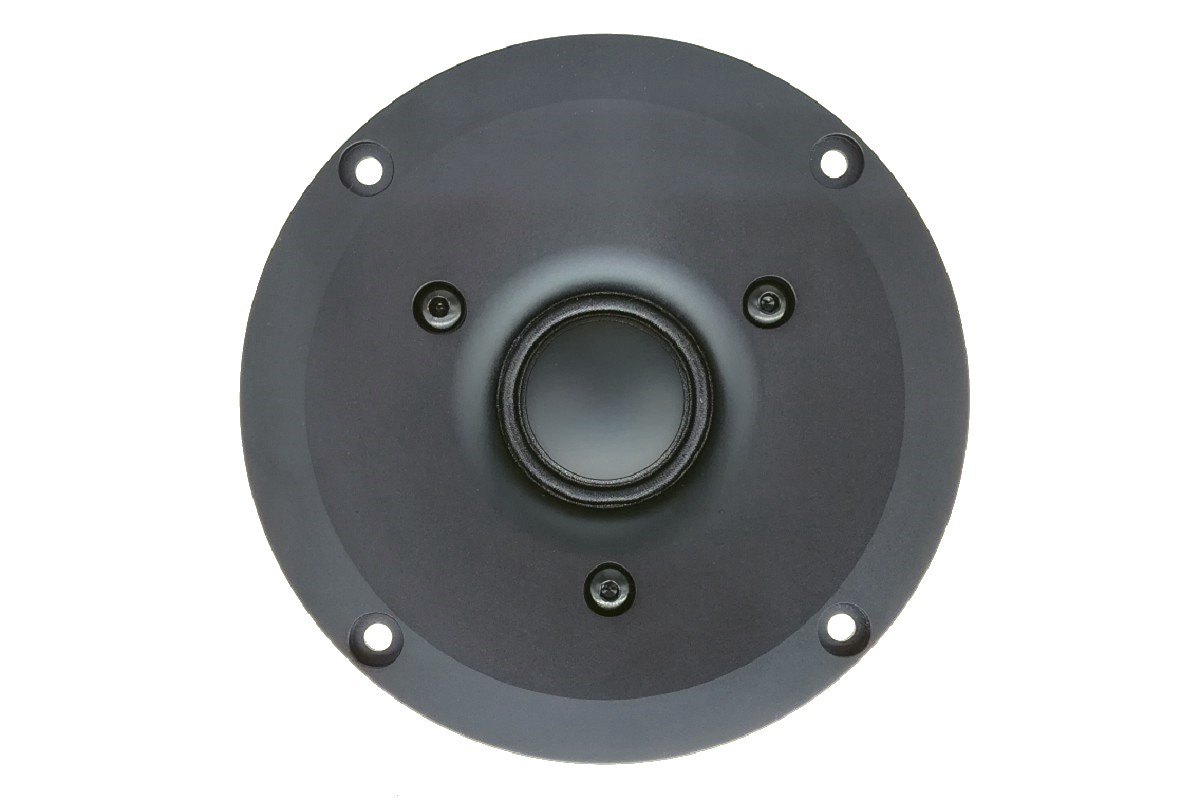

1" Aluminum Dome Tweeter
AUGDL0003-JN05
Category - Tweeter
Characteristics - Aluminum Alloy Diaphragm
AUGDL0003-JN05
AUGDL0003-JN05
AUGDL0003-JN05

1" Aluminum Dome Tweeter

AUGDL0003-JN05

Category - Tweeter
Characteristics - Aluminum Alloy Diaphragm
AUGDL0003-JN05
AUGDL0003-JN05
AUGDL0003-JN05
AUGDL0003-JN05
AUGDL0003-JN05
AUGDL0003-JN05
Description

This 1 inch Tweeter, features 4 inch Aluminum alloy front panel, Al-Mg alloy dome with soft surround, and ferrite magnet motor system. It has good process ability and high yield for mass production. Because of this special raw material structure and unique processing technology, the attributes of Aluminum offer high strength, good rigidity, good heat resistance, low density and so on.

1" Aluminum Dome Tweeter

AUGDL0003-JN05

Category - Tweeter
Characteristics - Aluminum Alloy Diaphragm
Features
  • 4”, Aluminum Alloy Front Panel
  • 1” CCAW Voice Coil, Aluminum Former
  • Al-Mg Alloy Dome, Soft Surround
  • Ferrite Magnet Motor System
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
1 Inch
655 Hz
4 Ohms
90 dB
0.65 Qts
20 W
Description

This 1 inch Tweeter, features 4 inch Aluminum alloy front panel, Al-Mg alloy dome with soft surround, and ferrite magnet motor system. It has good process ability and high yield for mass production. Because of this special raw material structure and unique processing technology, the attributes of Aluminum offer high strength, good rigidity, good heat resistance, low density and so on.

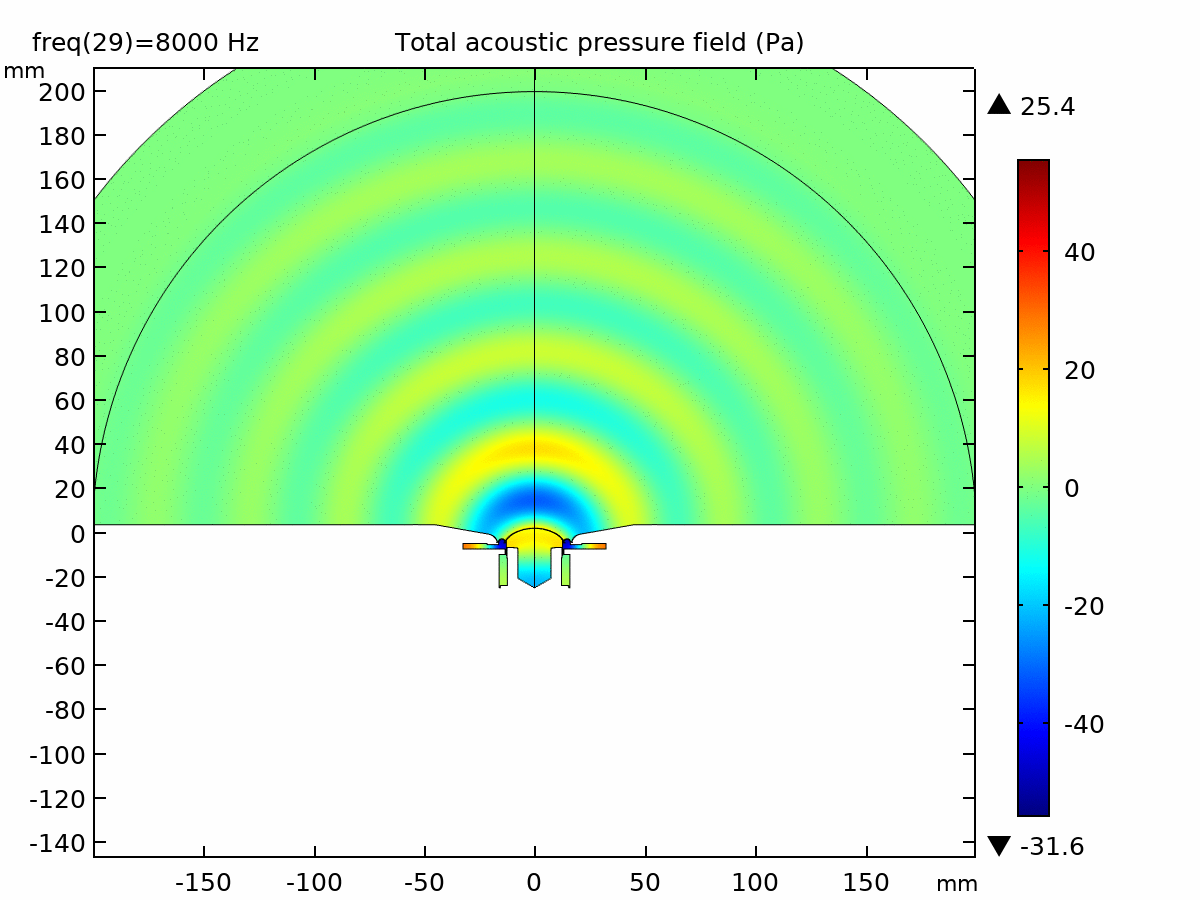

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 656 Hz
Mechanical Q factor [Qms] 1.403
Electrical Q factor [Qes] 1.212
Total Q factor [Qts]  0.65
Force factor [Bl] 2.258 Tm
Mechanical resistance [Rms] 1.083 kg/s
Moving mass [Mms]  0.369 g
Compliance [Cms] 0.16 mm/N
Effective diaph. diameter [D]  30 mm
Effective piston area [Sd] 7.07 cm²
Equivalent volume [Vas] 0.0113 l
Sensitivity (2.83V/1m)  90 dB
Ratio Bl/√Re 1.20 N/√W
Ratio fs/Qts 1009.2 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.95 Ω
Maximum impedance [Zo] 6.82 Ω
DC resistance [Re] 3.53 Ω
Voice coil inductance [Le]  0.016 mH
Power Handling
100h RMS noise test (IEC 18.4) 20 W
Long-term max power (IEC 18.2) 30 W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 2.1 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 0.2 mm
Max mech. excursion ± - mm
Unit weight 0.66 kg
