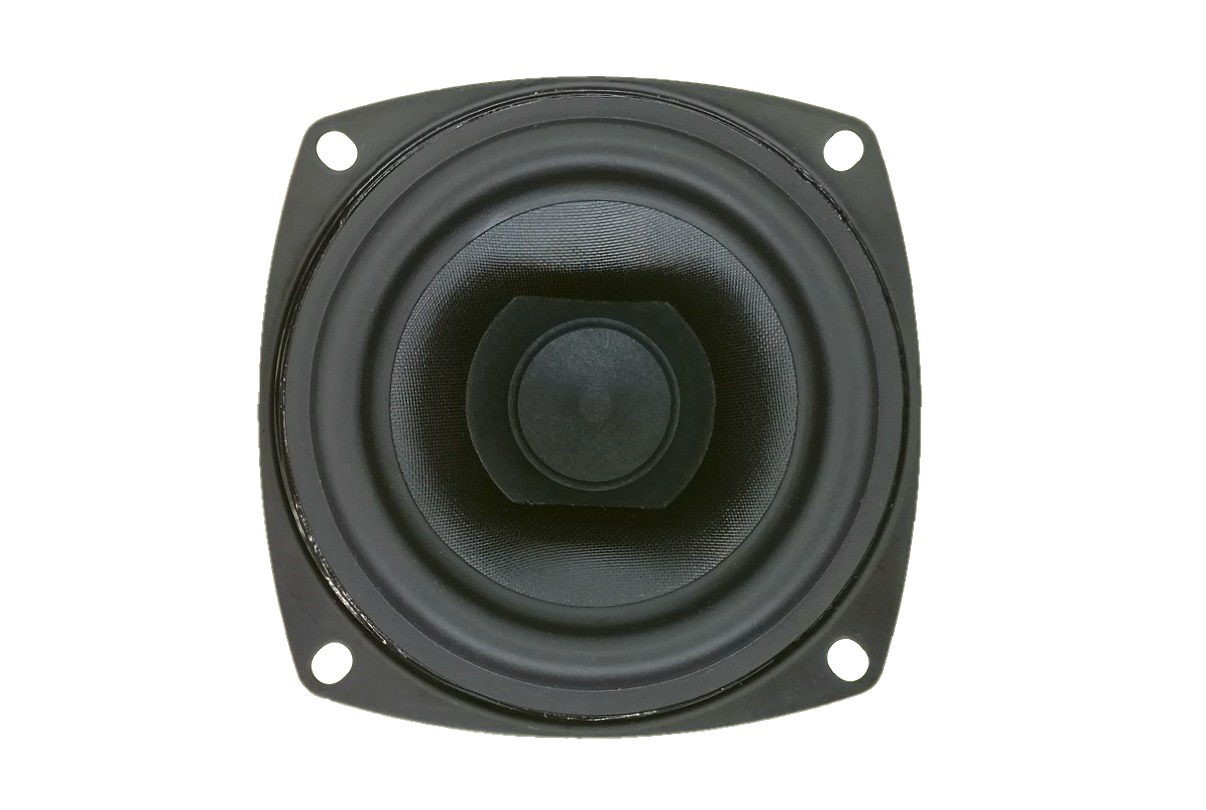

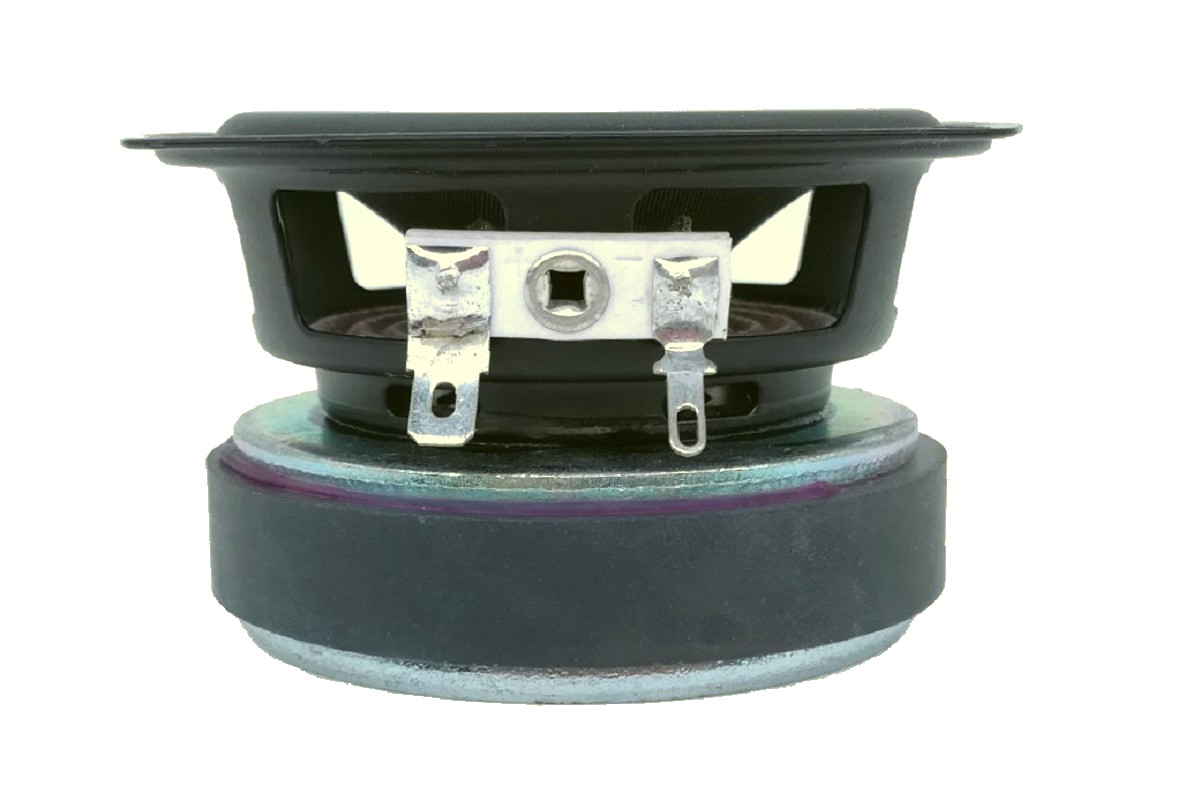

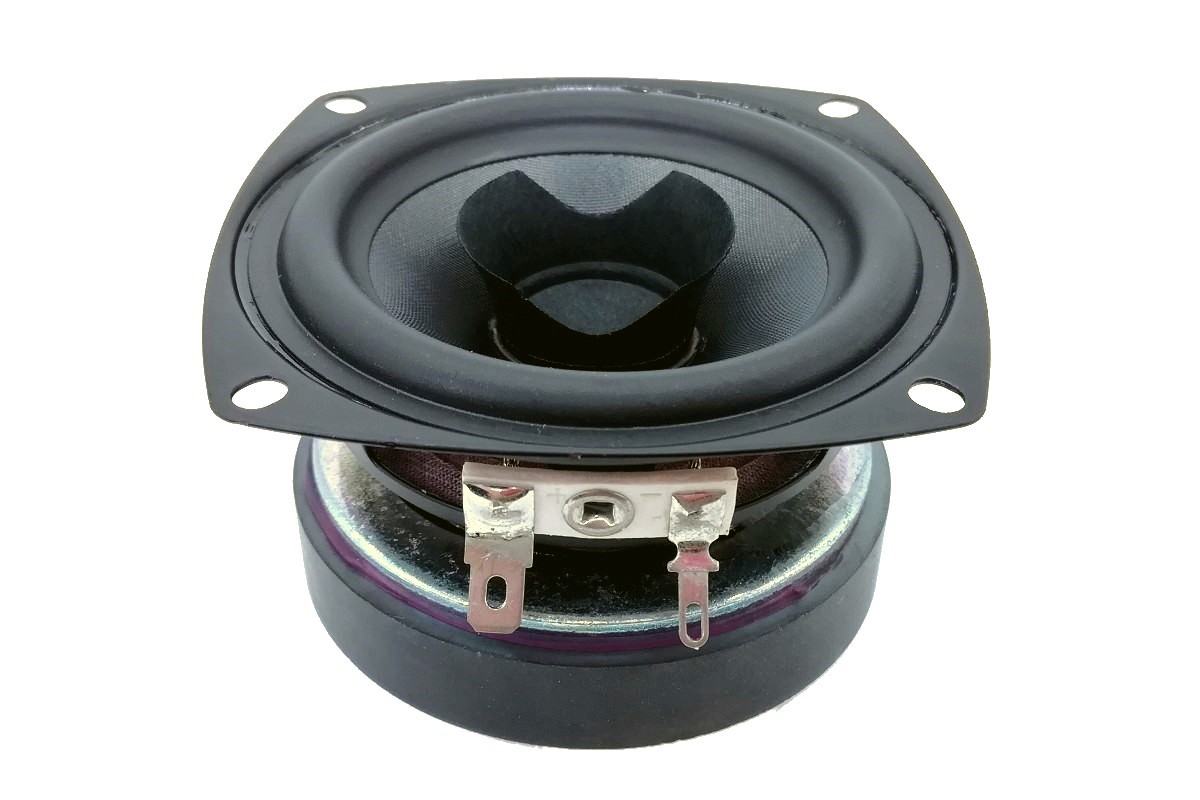

This 3 inch 8 ohm Fullrange driver, with 0.8 inch voice coil copper clad Aluminum wire, Aluminum former, damping glue coated glass fiber cone and rubber surround. It contains copper shorting cap on pole piece, which reduces coil inductance, thus providing both extended frequency response performance and reduce distortion. Whizzer cone in center can increase HF output. The Aluminum former, bottom plate and basket under spider are all vented hole so as to reduce air compression effects and aid cooling of the motor under high excursion conditions.
- 3", Steel Frame
- 0.8" CCAW Voice Coil, Aluminum Former
- Damped Glass Fiber Cone, Rubber Surround
- Strong Ferrite Magnet Motor System, Pole Piece Vent
- Wide Frequency Range, Whizzer Cone
- Extended Copper Cap on the Pole Piece, Low Distortion (<3%)
This 3 inch 8 ohm Fullrange driver, with 0.8 inch voice coil copper clad Aluminum wire, Aluminum former, damping glue coated glass fiber cone and rubber surround. It contains copper shorting cap on pole piece, which reduces coil inductance, thus providing both extended frequency response performance and reduce distortion. Whizzer cone in center can increase HF output. The Aluminum former, bottom plate and basket under spider are all vented hole so as to reduce air compression effects and aid cooling of the motor under high excursion conditions.
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 120 Hz |
| Mechanical Q factor [Qms] | 2.62 |
| Electrical Q factor [Qes] | 1.06 |
| Total Q factor [Qts] | 0.75 |
| Force factor [Bl] | 4.12 Tm |
| Mechanical resistance [Rms] | 0.98 kg/s |
| Moving mass [Mms] | 3.42 g |
| Compliance [Cms] | 0.52 mm/N |
| Effective diaph. diameter [D] | 60 mm |
| Effective piston area [Sd] | 28.27 cm² |
| Equivalent volume [Vas] | 0.59 l |
| Sensitivity (2.83V/1m) | 83 dB |
| Ratio Bl/√Re | 1.561 N/√W |
| Ratio fs/Qts | 158.8 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 8 Ω |
| Minimum impedance [Zmin] | 7.1 Ω |
| Maximum impedance [Zo] | 32.49Ω |
| DC resistance [Re] | 6.96 Ω |
| Voice coil inductance [Le] | 0.071 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 20 W |
| Long-term max power (IEC 18.2) | - W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 20.3 mm |
| Voice coil height | 8.1 mm |
| Voice coil layers | 4 |
| Height of gap | 3.5 mm |
| Linear excursion | ± 2.3 mm |
| Max mech. excursion | ± 5.0 mm |
| Unit weight | 0.433 kg |
