4" Paper Cone Woofer
FSB022540-0402
Category - Woofer
Characteristics -
FSB022540-0402
FSB022540-0402
FSB022540-0402

4" Paper Cone Woofer

FSB022540-0402

Category - Woofer
Characteristics -
FSB022540-0402
FSB022540-0402
FSB022540-0402
FSB022540-0402
FSB022540-0402
FSB022540-0402
Description

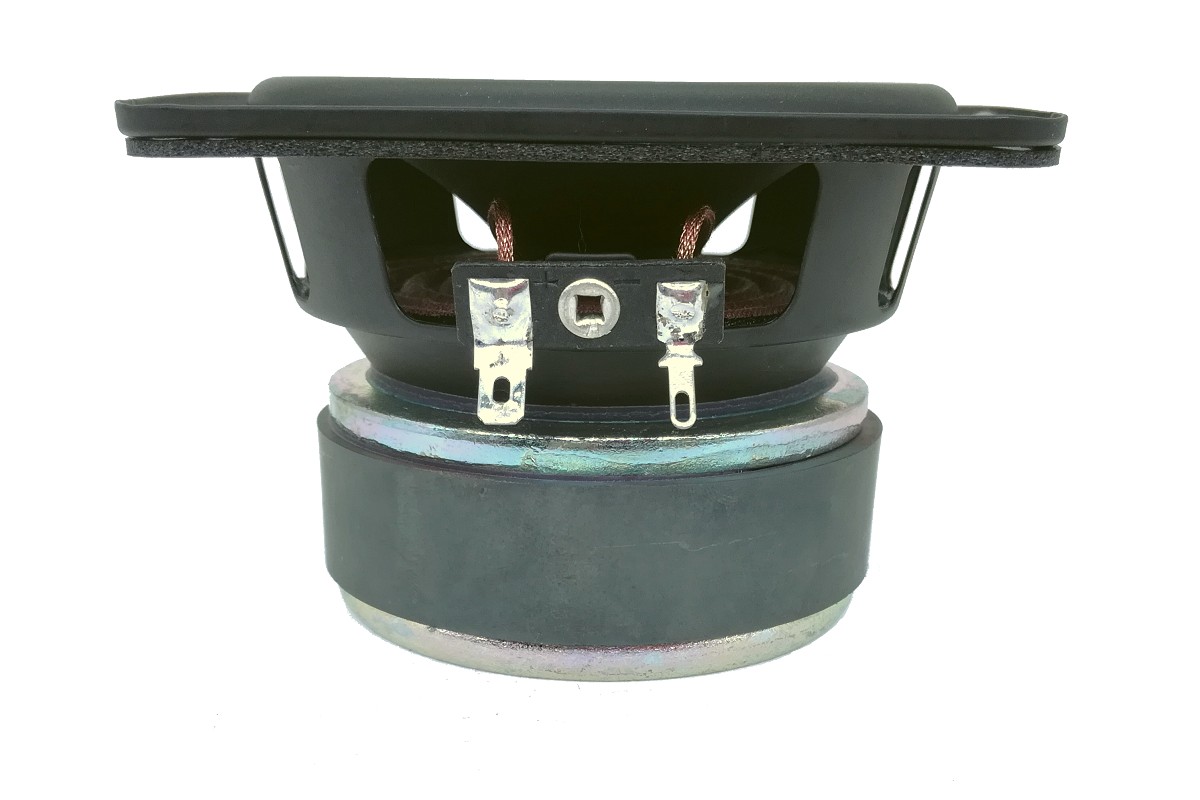

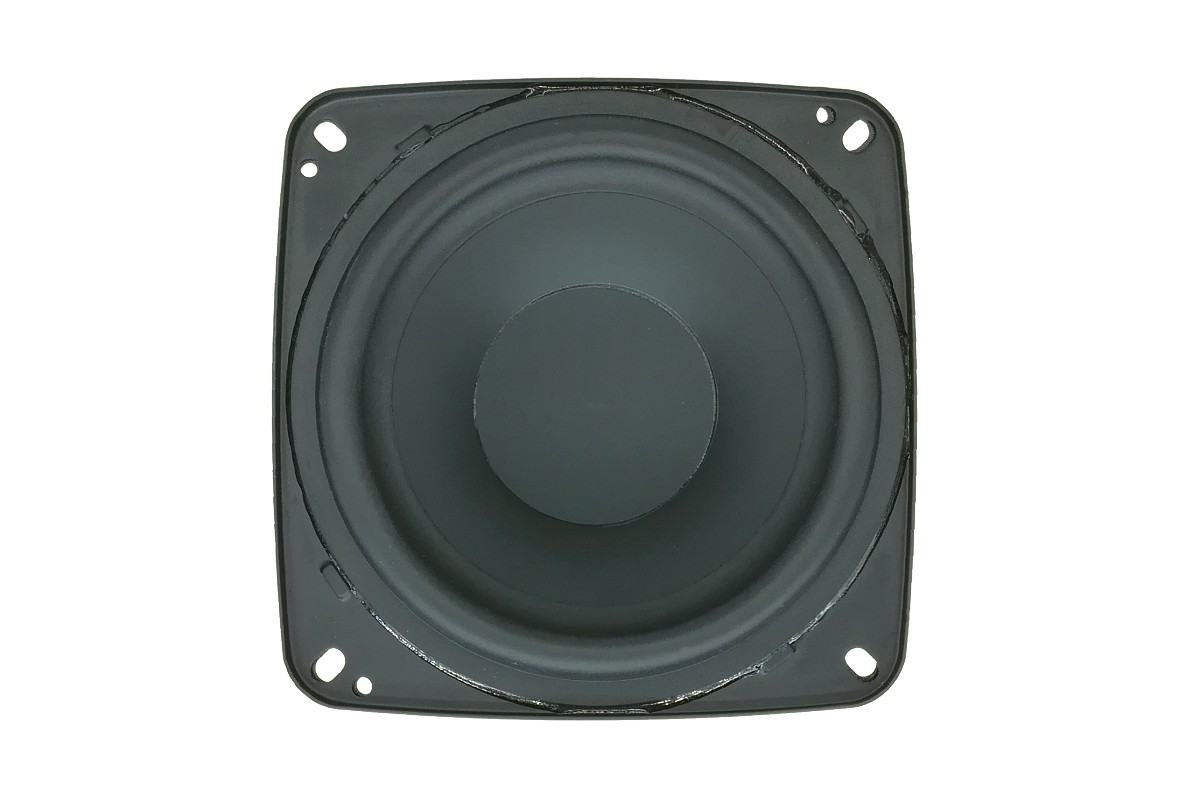

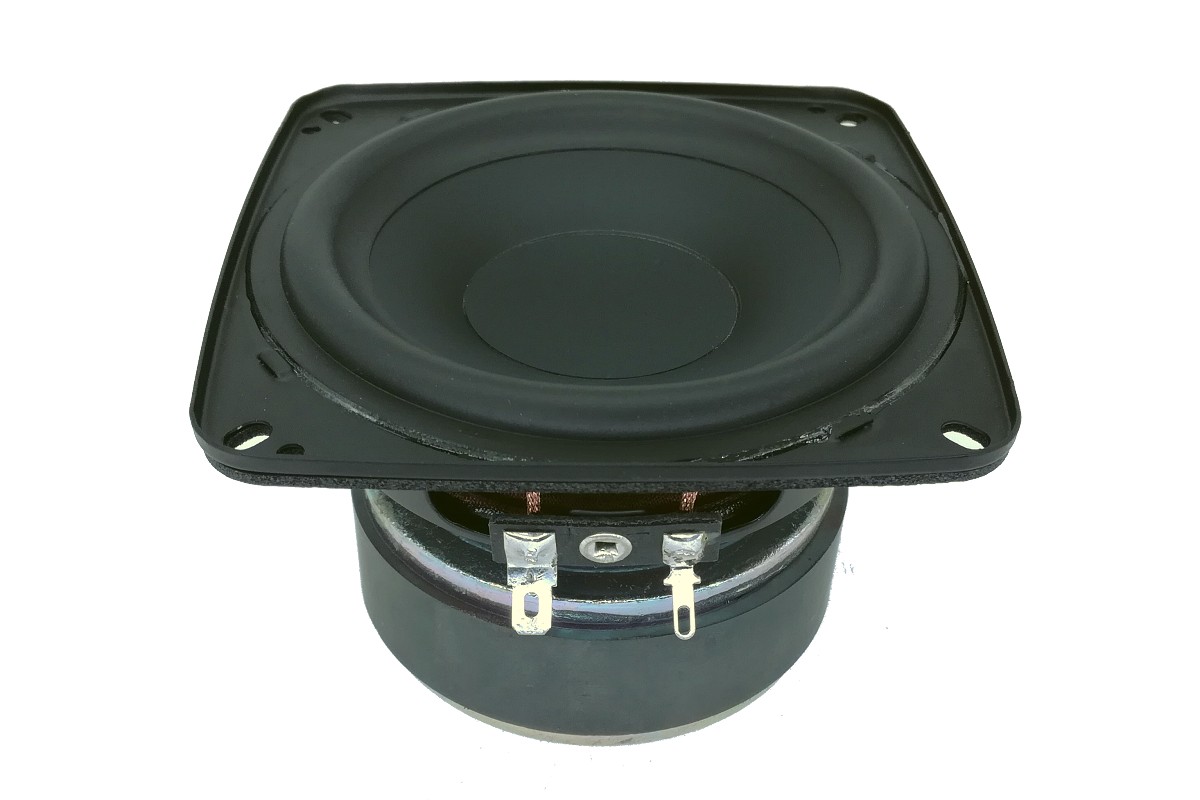

This 4 inch 4 ohm Woofer driver, with 1 inch voice coil copper wire, Aluminum former, damping glue coated PULP cone and  rubber surround. The long-throw voice coil ensures linear high excursion. The Aluminum former are vented holes so as to reduce air compression effects. Additionally, coated paper cones come equipped with special-designed roll rubber surrounds can get smooth response curve.

4" Paper Cone Woofer

FSB022540-0402

Category - Woofer
Characteristics -
Features
  • 4”, Steel Frame
  • 1” PESVW Voice Coil, Aluminum Former
  • PULP Diaphragm and Coating Black Dust Cap
  • Ferrite Magnet Motor System
  • Long Excursion(±3.6mm)
  • Low Distortion (<3%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
4 Inch
80 Hz
4 Ohms
88 dB
0.52 Qts
25 W
Description

This 4 inch 4 ohm Woofer driver, with 1 inch voice coil copper wire, Aluminum former, damping glue coated PULP cone and  rubber surround. The long-throw voice coil ensures linear high excursion. The Aluminum former are vented holes so as to reduce air compression effects. Additionally, coated paper cones come equipped with special-designed roll rubber surrounds can get smooth response curve.

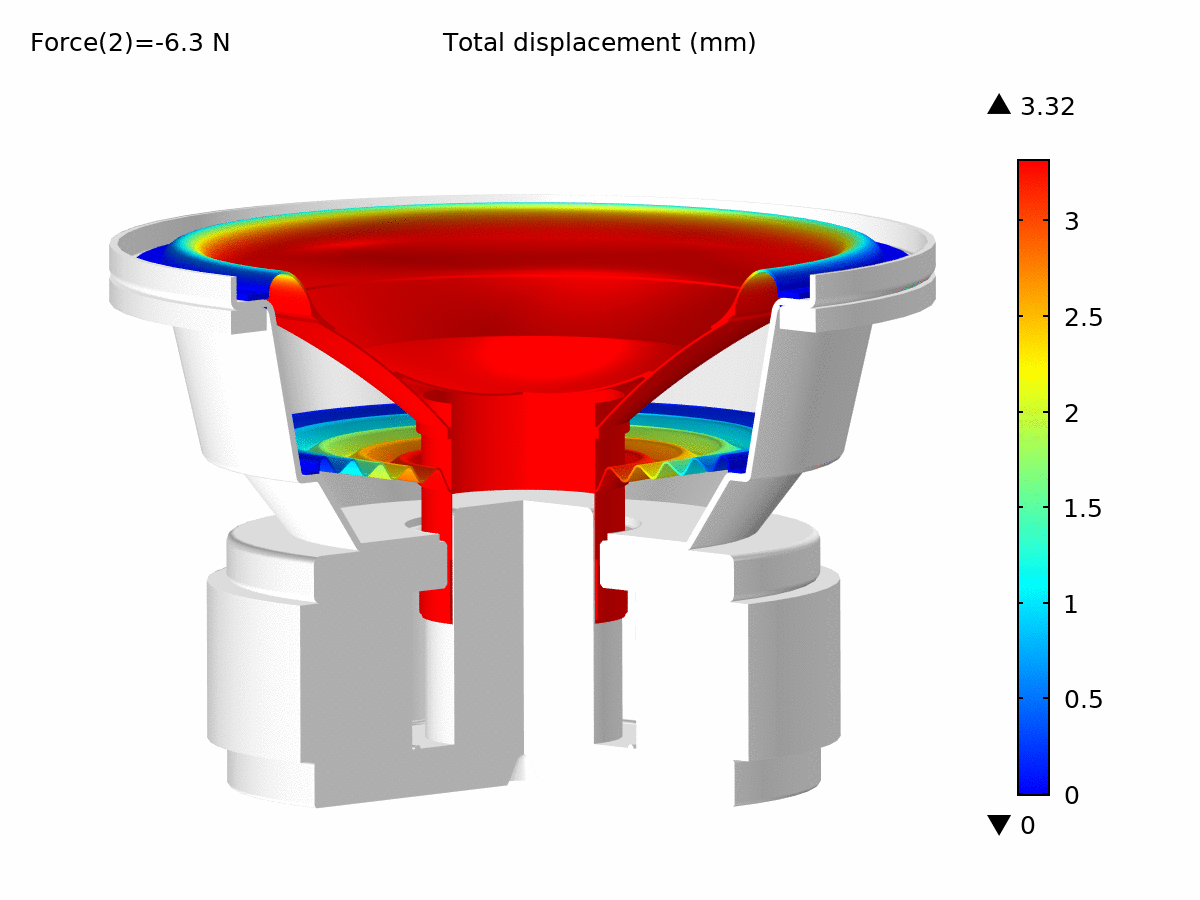

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 78.8 Hz
Mechanical Q factor [Qms] 5.221
Electrical Q factor [Qes] 0.578
Total Q factor [Qts]  0.520
Force factor [Bl] 5.031 Tm
Mechanical resistance [Rms] 0.709 kg/s
Moving mass [Mms]  7.473 g
Compliance [Cms] 0.546 mm/N
Effective diaph. diameter [D]  85 mm
Effective piston area [Sd] 56.75 cm²
Equivalent volume [Vas] 2.4877 l
Sensitivity (2.83V/1m)  88 dB
Ratio Bl/√Re 2.52 N/√W
Ratio fs/Qts 151.53 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  4.2 Ω
Maximum impedance [Zo] 27.26 Ω
DC resistance [Re] 3.95 Ω
Voice coil inductance [Le]  0.29 mH
Power Handling
100h RMS noise test (IEC 18.4) 25 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 13.2 mm
Voice coil layers 2
Height of gap 6 mm
Linear excursion ± 3.6 mm
Max mech. excursion ± 9.5 mm
Unit weight 0.915 kg
