Description

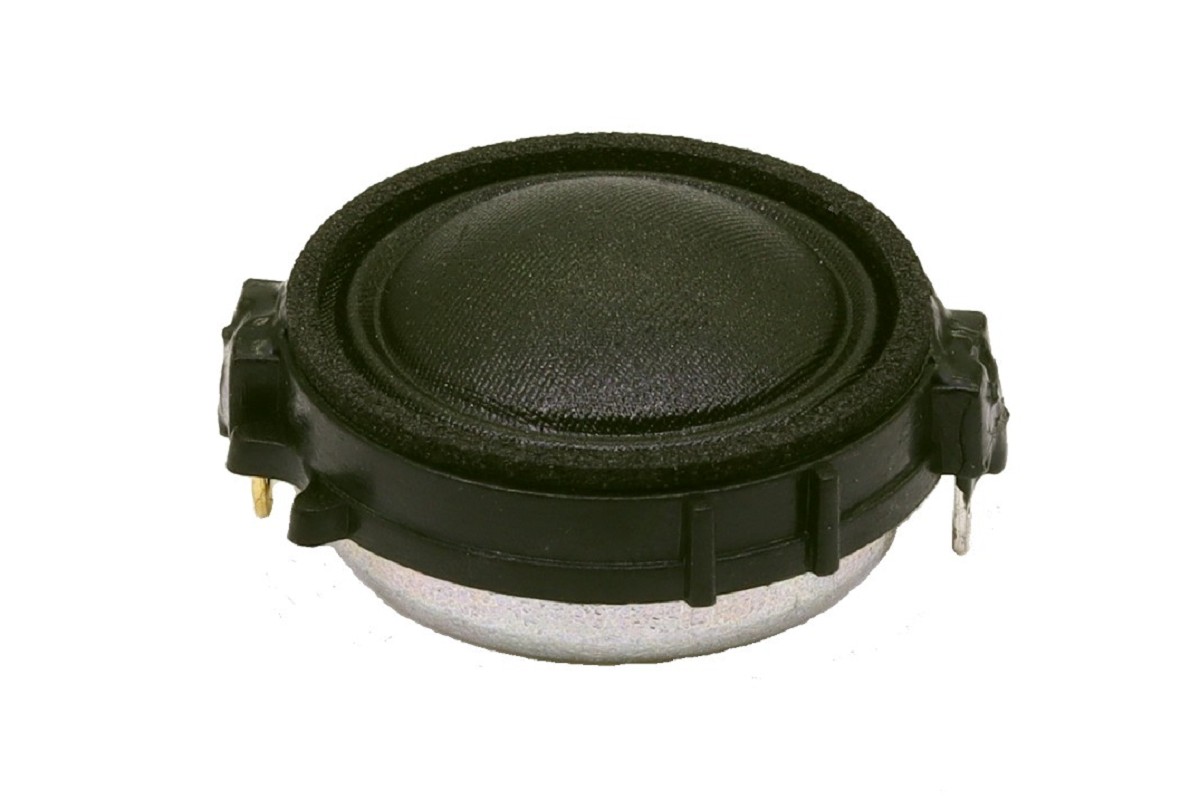

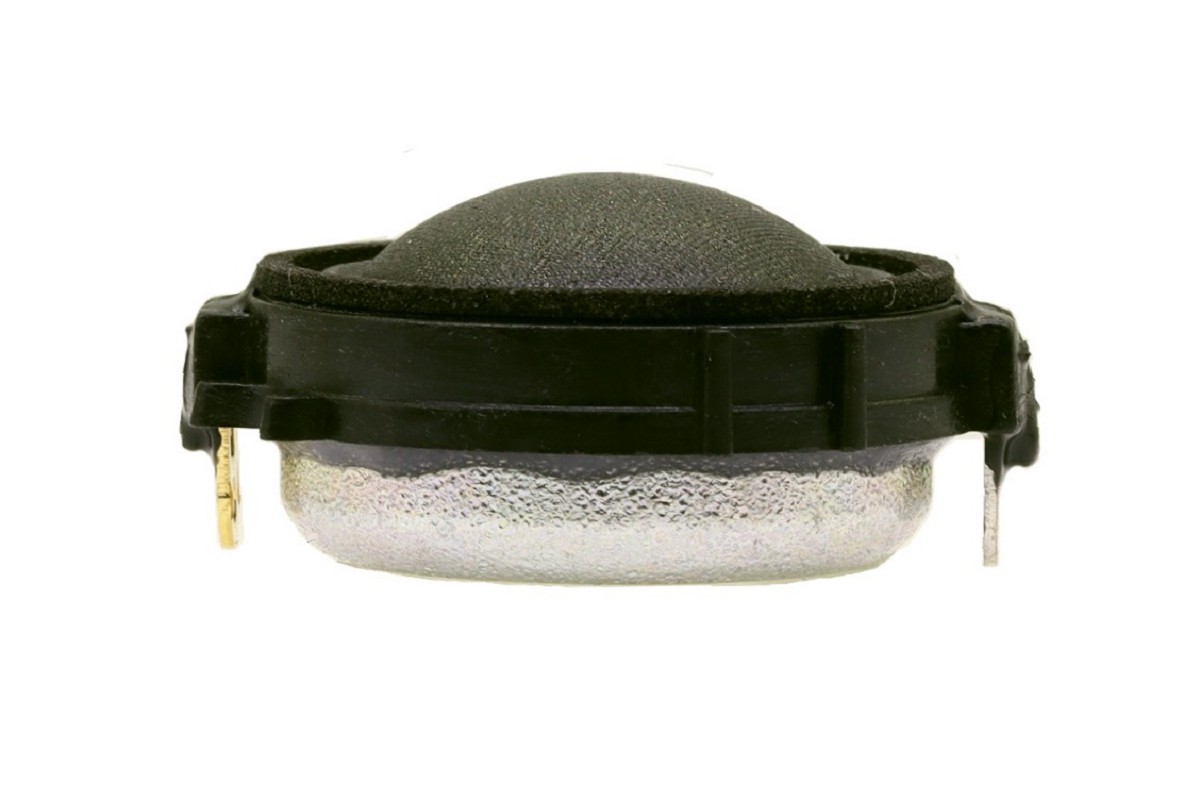

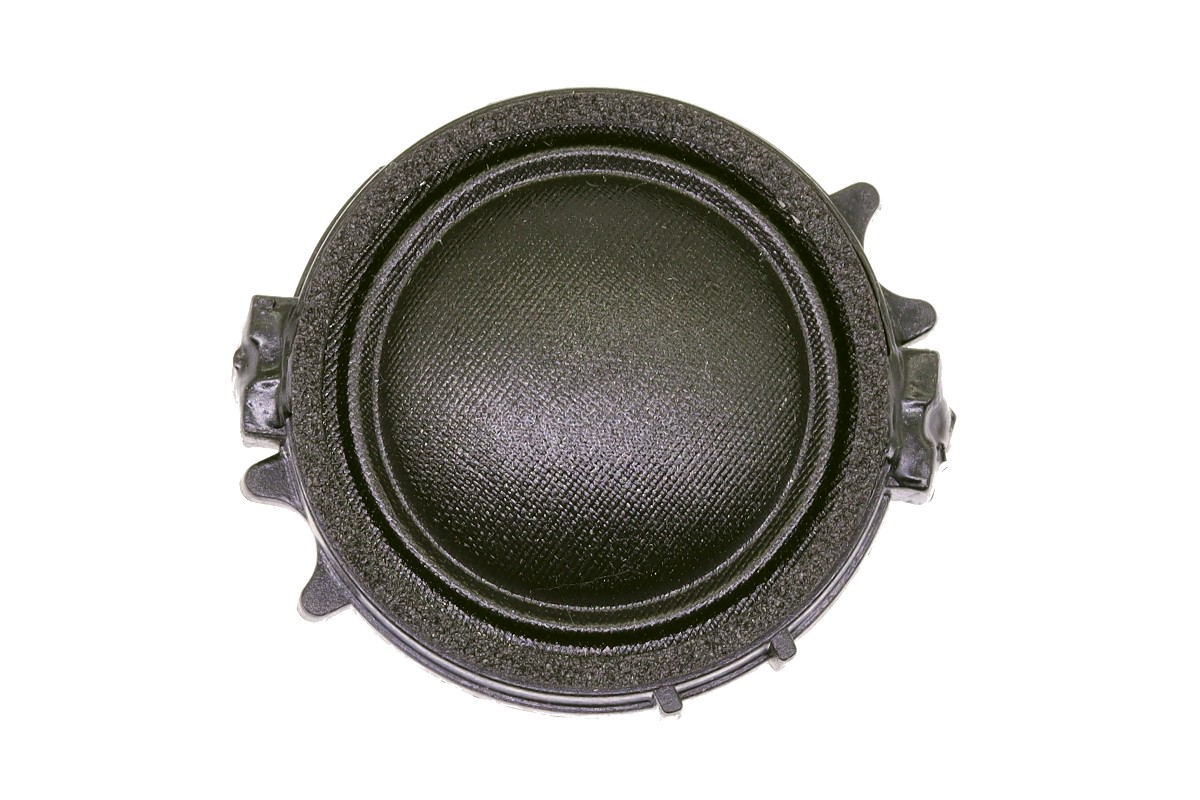

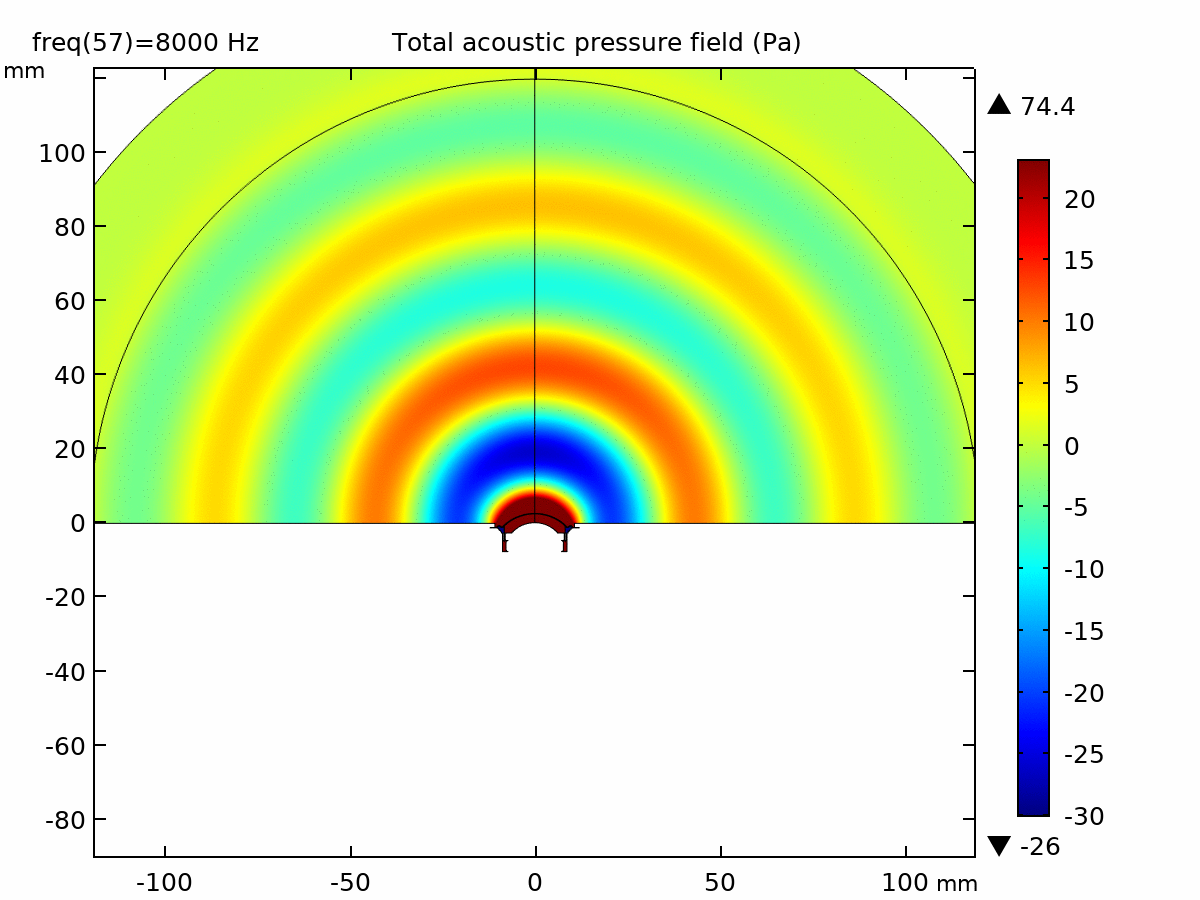

This compact Tweeter features an 4 ohm 0.6 inch voice coil, a textile dome diaphragm and Neodymium magnet motor system. This Tweeter features CCAW which further extend the high frequency response. This Tweeter comes with a round frame to allow for easy installation into customized faceplates.
Features
- 0.6", Plastic Frame
- Textile Dome Diaphragm
- Neodymium Magnet Motor System
- With Ferrofluid-Cooled
- Low Distortion(<3%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
0.6 Inch
1940 Hz
4 Ohms
87 dB
1.69 Qts
15 W
Description
This compact Tweeter features an 4 ohm 0.6 inch voice coil, a textile dome diaphragm and Neodymium magnet motor system. This Tweeter features CCAW which further extend the high frequency response. This Tweeter comes with a round frame to allow for easy installation into customized faceplates.
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 1940 Hz |
| Mechanical Q factor [Qms] | 3.348 |
| Electrical Q factor [Qes] | 3.449 |
| Total Q factor [Qts] | 1.699 |
| Force factor [Bl] | 1.485 Tm |
| Mechanical resistance [Rms] | 0.52 kg/s |
| Moving mass [Mms] | 0.143 g |
| Compliance [Cms] | 0.047 mm/N |
| Effective diaph. diameter [D] | 18.5 mm |
| Effective piston area [Sd] | 2.69 cm² |
| Equivalent volume [Vas] | 0.0005 l |
| Sensitivity (2.83V/1m) | 87 dB |
| Ratio Bl/√Re | 0.71 N/√W |
| Ratio fs/Qts | 1142.2 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 4 Ω |
| Minimum impedance [Zmin] | 3.8 Ω |
| Maximum impedance [Zo] | 6.76 Ω |
| DC resistance [Re] | 4.37 Ω |
| Voice coil inductance [Le] | 0.029 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 15 W |
| Long-term max power (IEC 18.2) | - W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 16.4 mm |
| Voice coil height | 2 mm |
| Voice coil layers | 2 |
| Height of gap | 2 mm |
| Linear excursion | ± 0 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 0.021 kg |
