Description

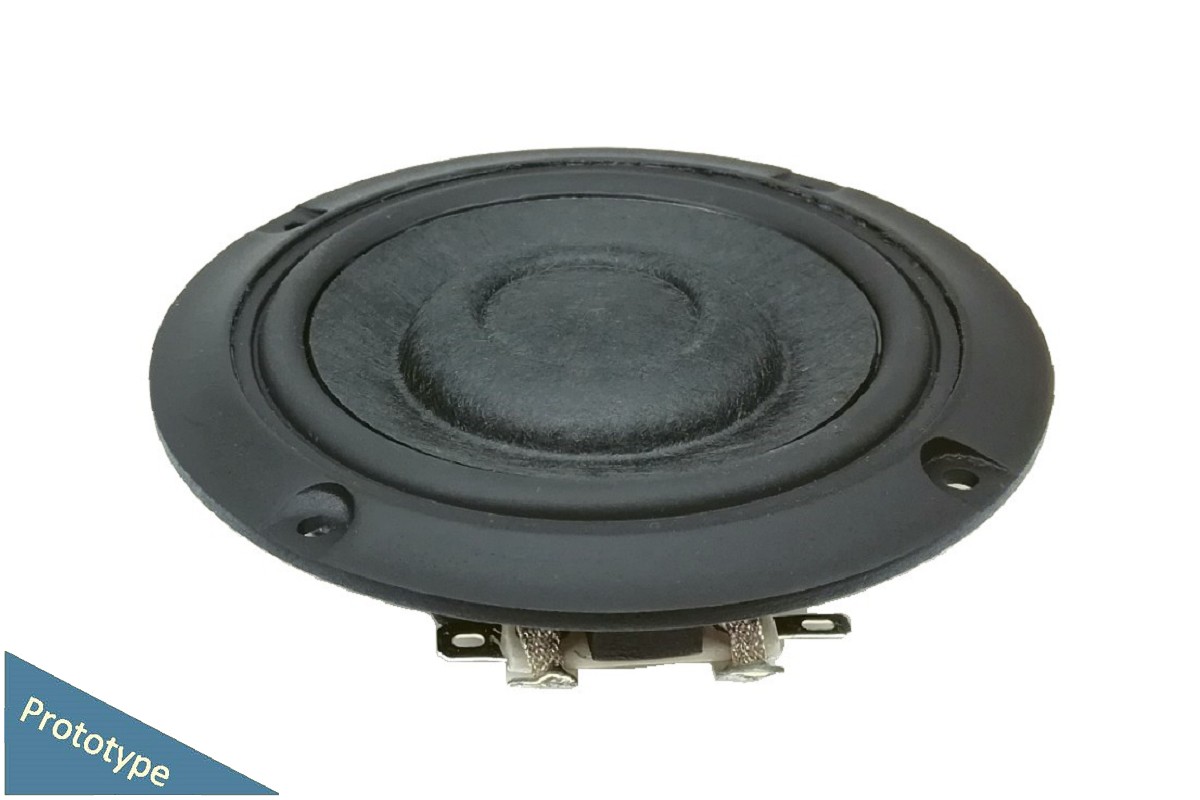

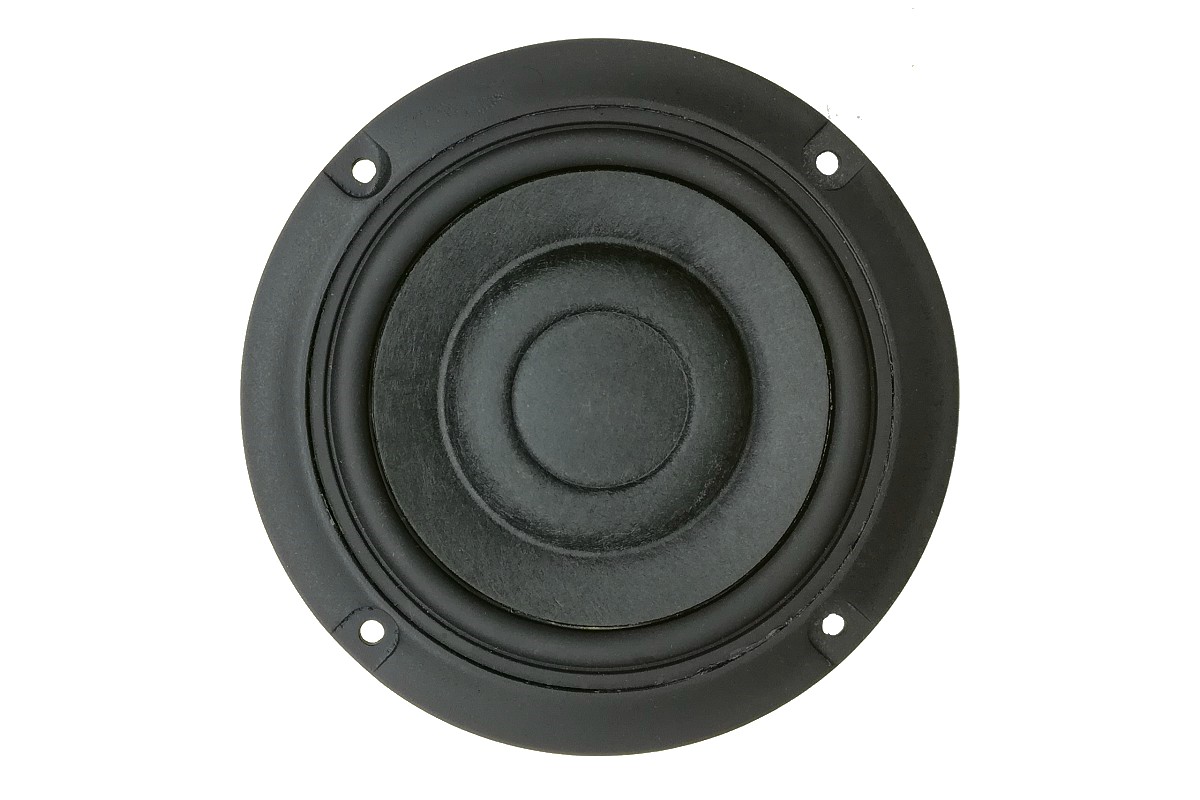

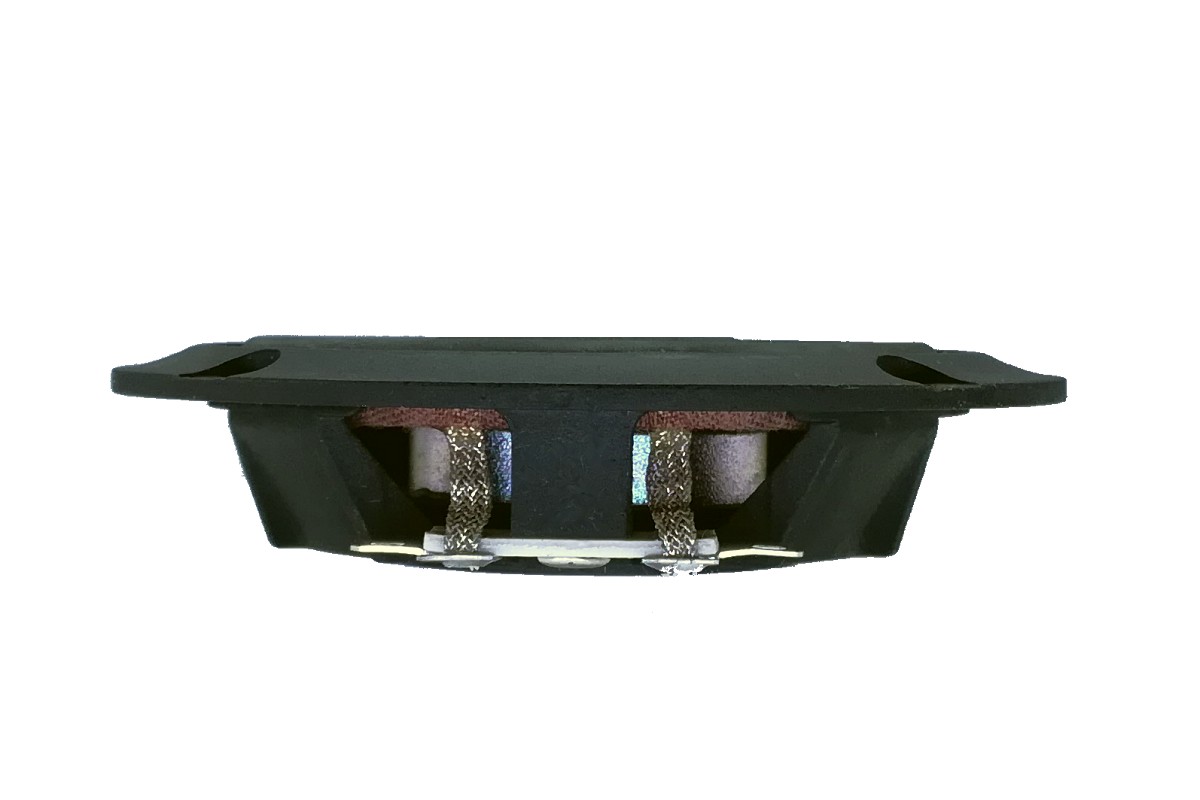

This 2.5 inch Woofer, features 1 inch voice coil with CCAW, Aluminum former, and Neodymium magnet motor system. The main cone body uses PULP with the carbon fiber to make sure the driver has a better stiffness and lower distortion. What’s more, U-yoke is embedded in the bracket to reduce overall height without affecting amplitude, and the overall design meets the requirements for ultra-thin performance.

2.5" Ultra-Thin Series Woofer

AUGWL0065-JN03

Category - Woofer
Features
  • 2.5”, Plastic Frame
  • 1” CCAW Voice Coil, Aluminum Former
  • PULP and Carbon Cone Design
  • Neodymium Magnet Motor System
  • Slim Design (Patented)
  • Low Distortion (<3%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
2.5 Inch
150 Hz
8 Ohms
84 dB
0.68 Qts
5 W
Description

This 2.5 inch Woofer, features 1 inch voice coil with CCAW, Aluminum former, and Neodymium magnet motor system. The main cone body uses PULP with the carbon fiber to make sure the driver has a better stiffness and lower distortion. What’s more, U-yoke is embedded in the bracket to reduce overall height without affecting amplitude, and the overall design meets the requirements for ultra-thin performance.

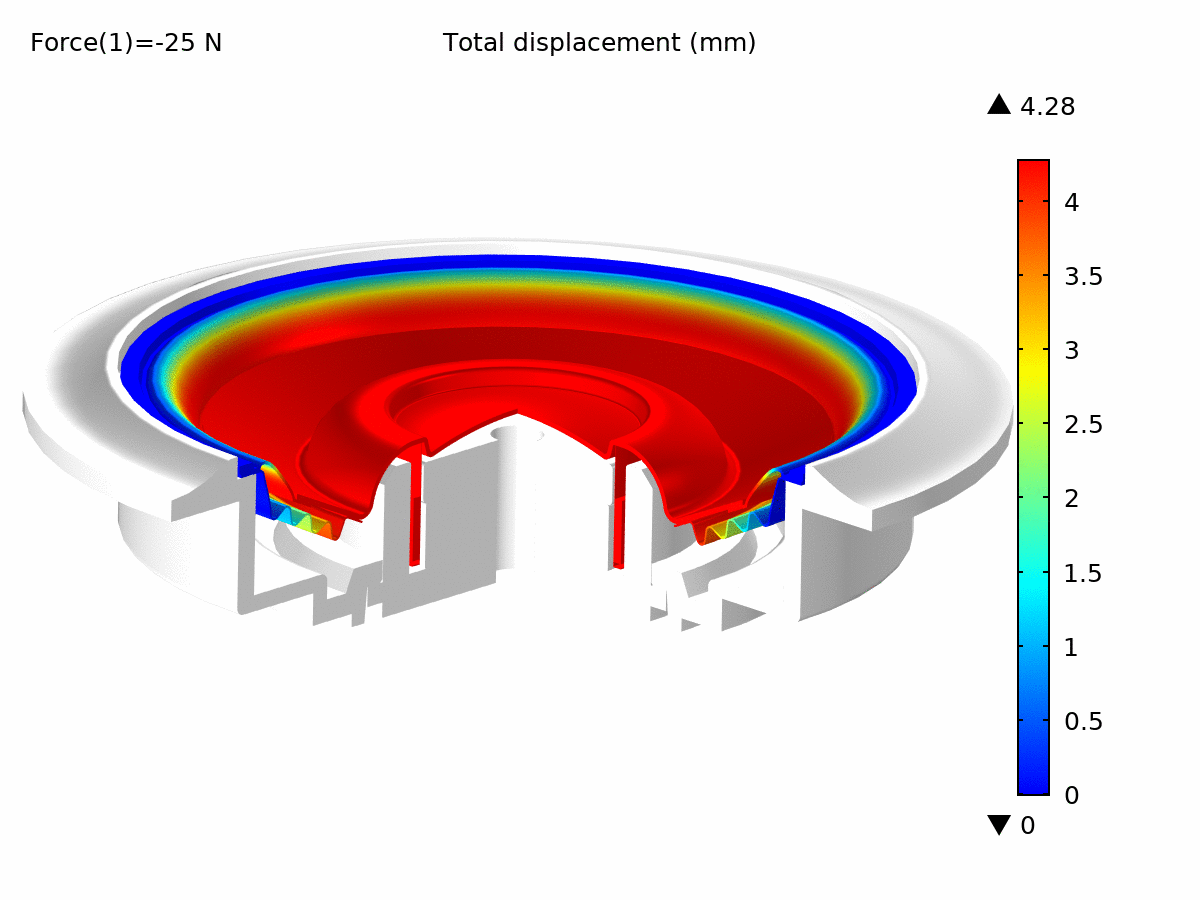

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 150.9 Hz
Mechanical Q factor [Qms] 5.607
Electrical Q factor [Qes] 0.772
Total Q factor [Qts]  0.679
Force factor [Bl] 5.494 Tm
Mechanical resistance [Rms] 0.61 kg/s
Moving mass [Mms]  3.606 g
Compliance [Cms] 0.309 mm/N
Effective diaph. diameter [D]  64 mm
Effective piston area [Sd] 32.17 cm²
Equivalent volume [Vas] 0.452 l
Sensitivity (2.83V/1m)  84 dB
Ratio Bl/√Re 2.104 N/√W
Ratio fs/Qts 225.93 Hz
Electrical Data
Nominal impedance [Zn]  8 Ω
Minimum impedance [Zmin]  6.8 Ω
Maximum impedance [Zo] 47.77 Ω
DC resistance [Re] 6.82 Ω
Voice coil inductance [Le]  0.411 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2) 10 W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 6.3 mm
Voice coil layers 4
Height of gap 4 mm
Linear excursion ± 1.1 mm
Max mech. excursion ± 4.0 mm
Unit weight 0.116 kg
