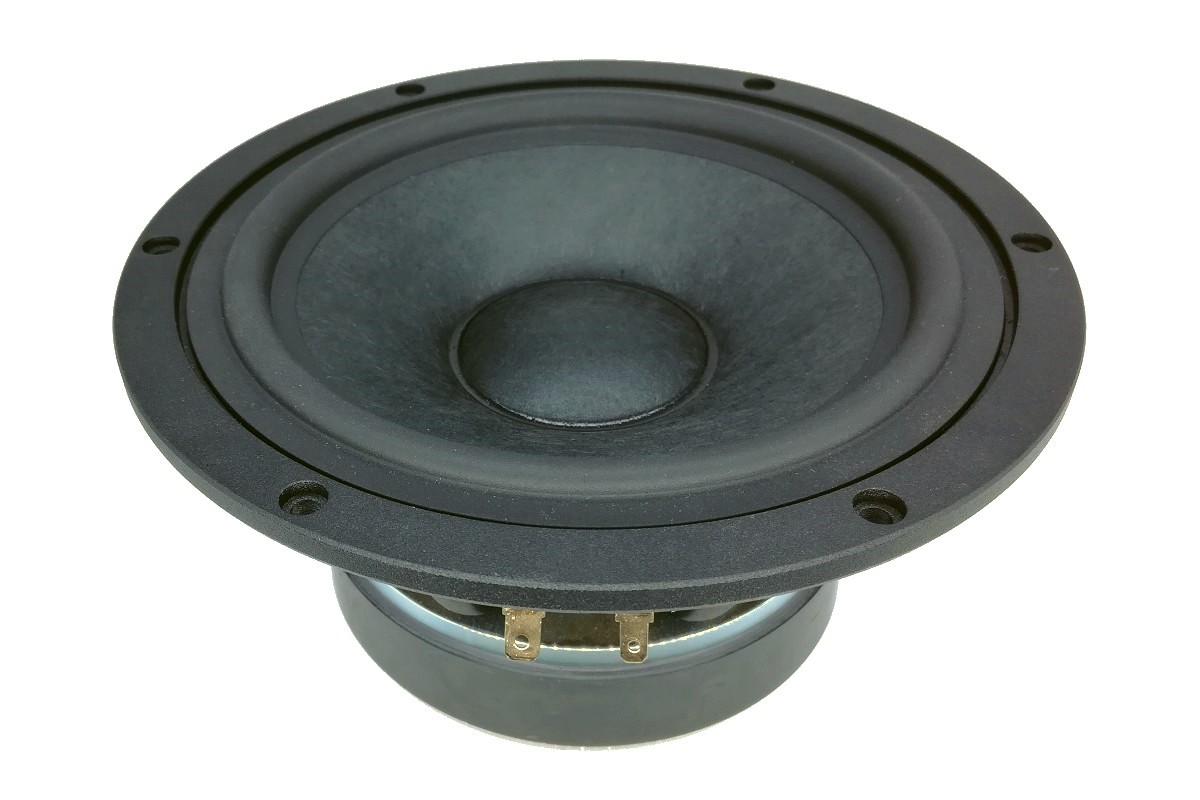

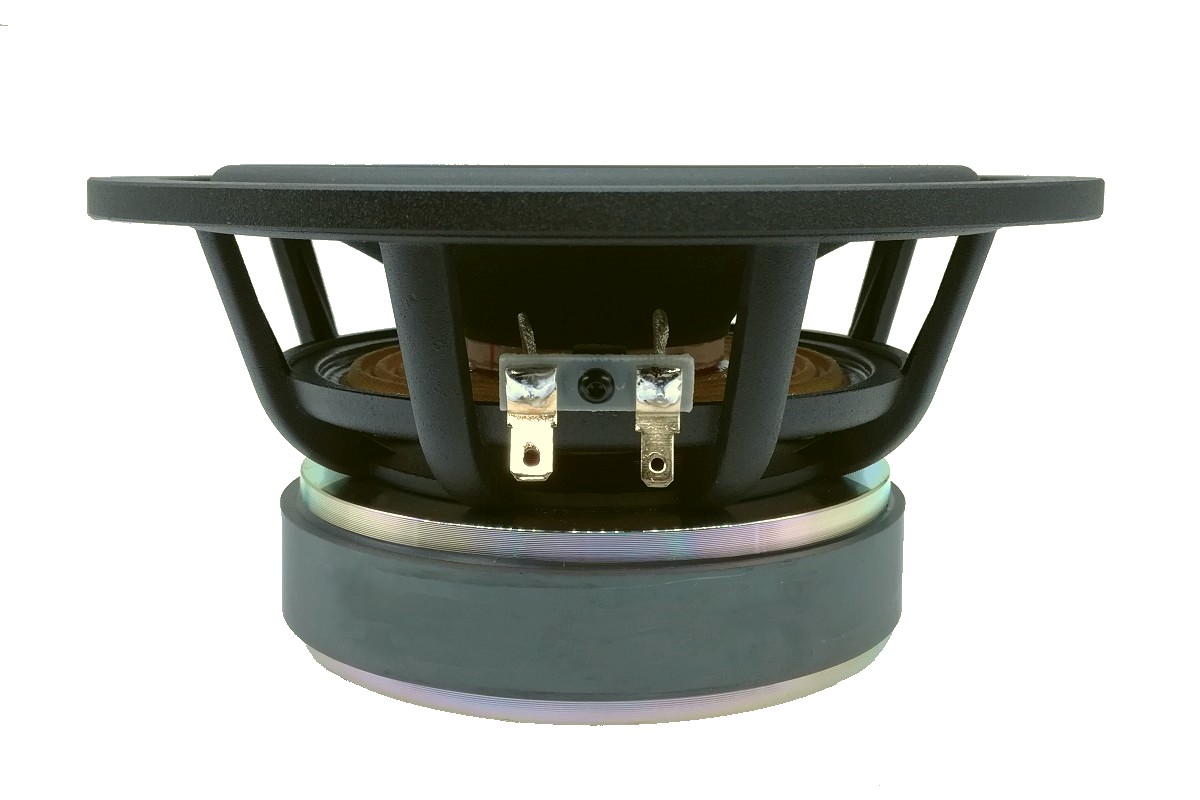

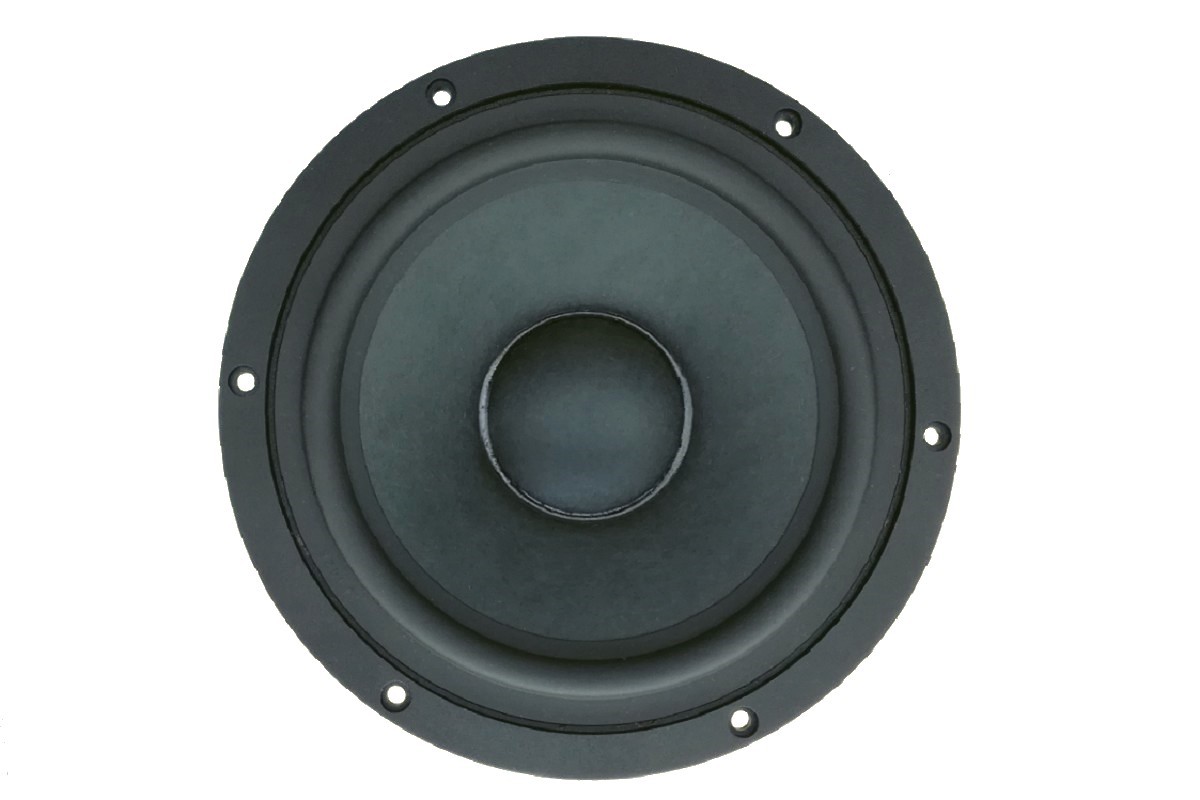

6.5" Carbon Pulp Woofer
AUGWL0016-JN03
Category - Woofer
Characteristics - Carbon Pulp Diaphragm
AUGWL0016-JN03
AUGWL0016-JN03
AUGWL0016-JN03

6.5" Carbon Pulp Woofer

AUGWL0016-JN03

Category - Woofer
Characteristics - Carbon Pulp Diaphragm
AUGWL0016-JN03
AUGWL0016-JN03
AUGWL0016-JN03
AUGWL0016-JN03
AUGWL0016-JN03
AUGWL0016-JN03
Description

This 6.5 inch Woofer, features 2 inch voice coil, pulp with carbon fiber cone, and ferrite magnet motor system. As for the selection of material, this series of driver uses a new mixed material with pulp and 60% carbon fiber, it can greatly enhance the stiffness of the cone body and control range of the internal damping.

6.5" Carbon Pulp Woofer

AUGWL0016-JN03

Category - Woofer
Characteristics - Carbon Pulp Diaphragm
Features
  • 6.5”, Aluminum Die-cast Frame
  • 2” CCAW Voice Coil, Aluminum Former
  • Pulp and Carbon Fiber Cone, Rubber Surround
  • Ferrite Magnet Motor System
  • Conex Spider
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
6.5 Inch
40 Hz
4 Ohms
89 dB
0.31 Qts
80 W
Description

This 6.5 inch Woofer, features 2 inch voice coil, pulp with carbon fiber cone, and ferrite magnet motor system. As for the selection of material, this series of driver uses a new mixed material with pulp and 60% carbon fiber, it can greatly enhance the stiffness of the cone body and control range of the internal damping.

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 40.2 Hz
Mechanical Q factor [Qms] 2.298
Electrical Q factor [Qes] 0.364
Total Q factor [Qts]  0.314
Force factor [Bl] 6.726 Tm
Mechanical resistance [Rms] 2.116 kg/s
Moving mass [Mms]  19.265 g
Compliance [Cms] 0.815 mm/N
Effective diaph. diameter [D]  134 mm
Effective piston area [Sd] 141.03 cm²
Equivalent volume [Vas] 22.93 l
Sensitivity (2.83V/1m)  89 dB
Ratio Bl/√Re 3.65 N/√W
Ratio fs/Qts 128 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.99 Ω
Maximum impedance [Zo] 20.4 Ω
DC resistance [Re] 3.39 Ω
Voice coil inductance [Le]  0.156 mH
Power Handling
100h RMS noise test (IEC 18.4) 80 W
Long-term max power (IEC 18.2) 100 W
Voice Coil & Magnet Data
Voice coil diameter 49.55 mm
Voice coil height 16 mm
Voice coil layers 2
Height of gap 6 mm
Linear excursion ± 5 mm
Max mech. excursion ± 12.5 mm
Unit weight 2.4 kg
