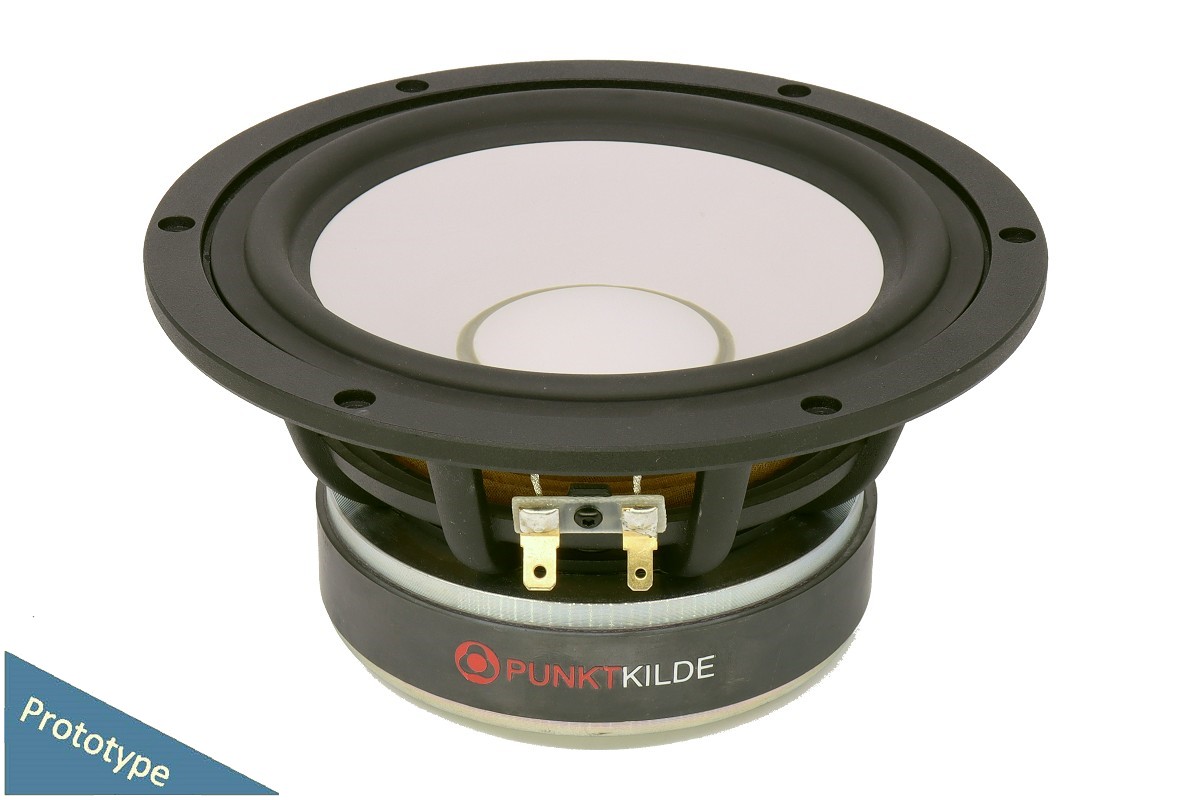

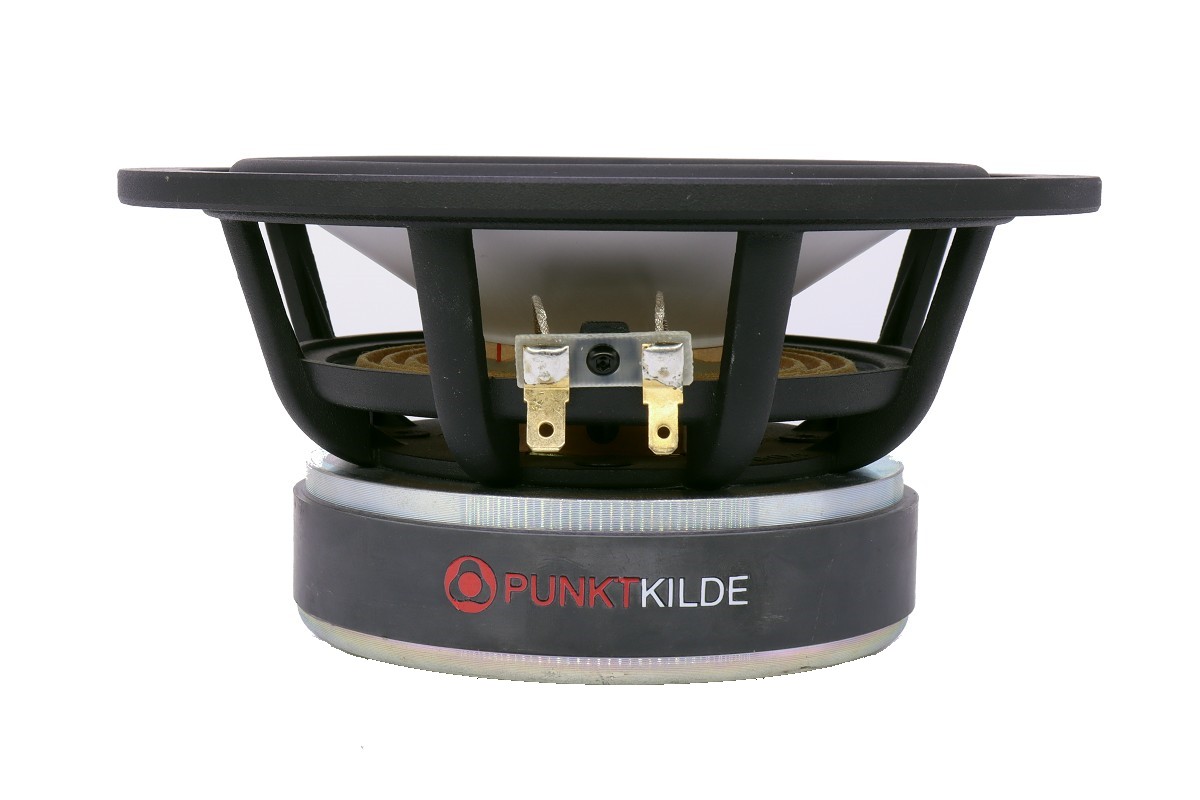

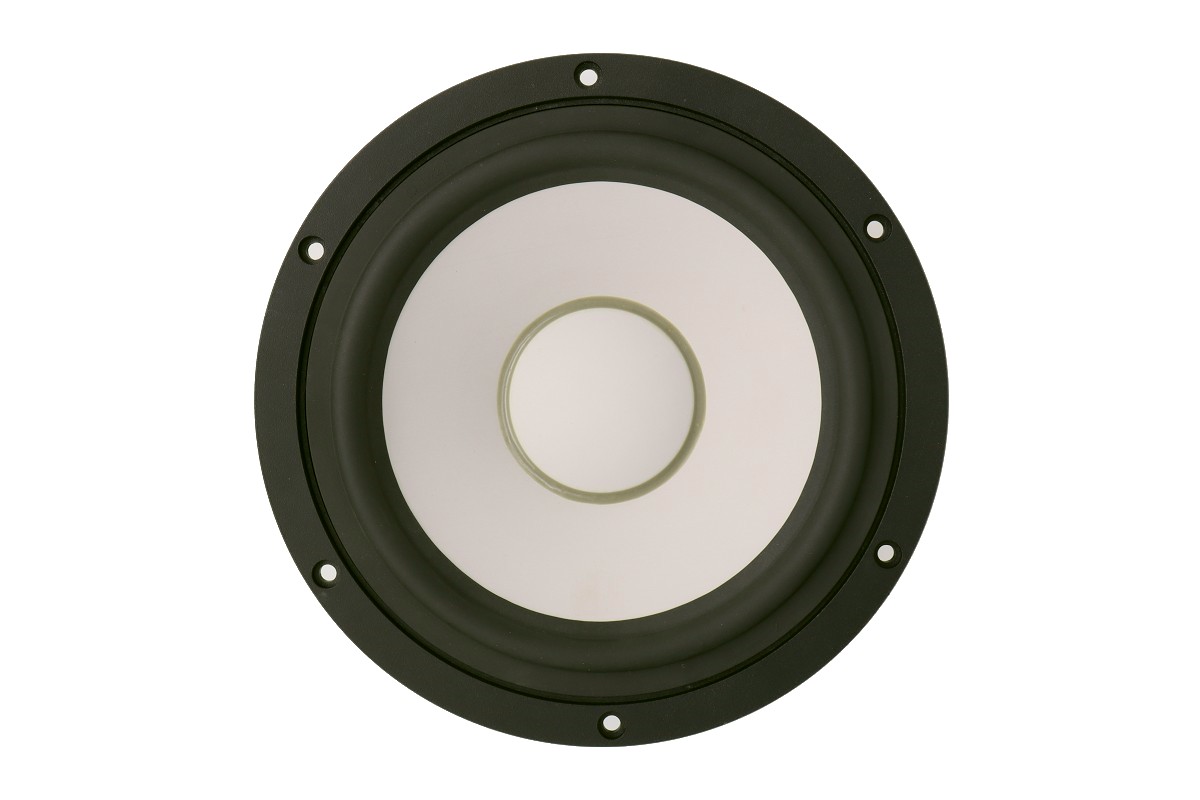

6.5” Magnesium-Lithium Woofer
AUGWL0016-JN02
Category - Woofer
Characteristics - Mg-Li Diaphragm
AUGWL0016-JN02
AUGWL0016-JN02
AUGWL0016-JN02

6.5” Magnesium-Lithium Woofer

AUGWL0016-JN02

Category - Woofer
Characteristics - Mg-Li Diaphragm
AUGWL0016-JN02
AUGWL0016-JN02
AUGWL0016-JN02
AUGWL0016-JN02
AUGWL0016-JN02
AUGWL0016-JN02
Description

This 6.5 inch Aluminum Alloy Woofer, Aluminum Die-Cast Frame with Mg-Li Alloy cone. It has good
process ability and high yield for mass production. Because of this special raw material structure and
unique processing technology, from magnesium lithium metal foil, the attributes of  Magnesium Lithium
offer high strength, good rigidity, good heat resistance, low density and so on.

6.5” Magnesium-Lithium Woofer

AUGWL0016-JN02

Category - Woofer
Characteristics - Mg-Li Diaphragm
Features
  • 6.5”, Aluminum Die-cast  Frame
  • 2” CCAW Voice Coil, Aluminum Former
  • Mg-Li Alloy Cone, Rubber Surround
  • Ferrite Magnet Motor System
  • Target Frequency 30Hz~4KHz
  • Low Distortion (<1%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
6.5 Inch
40 Hz
4 Ohms
90 dB
0.32 Qts
80 W
Description

This 6.5 inch Aluminum Alloy Woofer, Aluminum Die-Cast Frame with Mg-Li Alloy cone. It has good
process ability and high yield for mass production. Because of this special raw material structure and
unique processing technology, from magnesium lithium metal foil, the attributes of  Magnesium Lithium
offer high strength, good rigidity, good heat resistance, low density and so on.

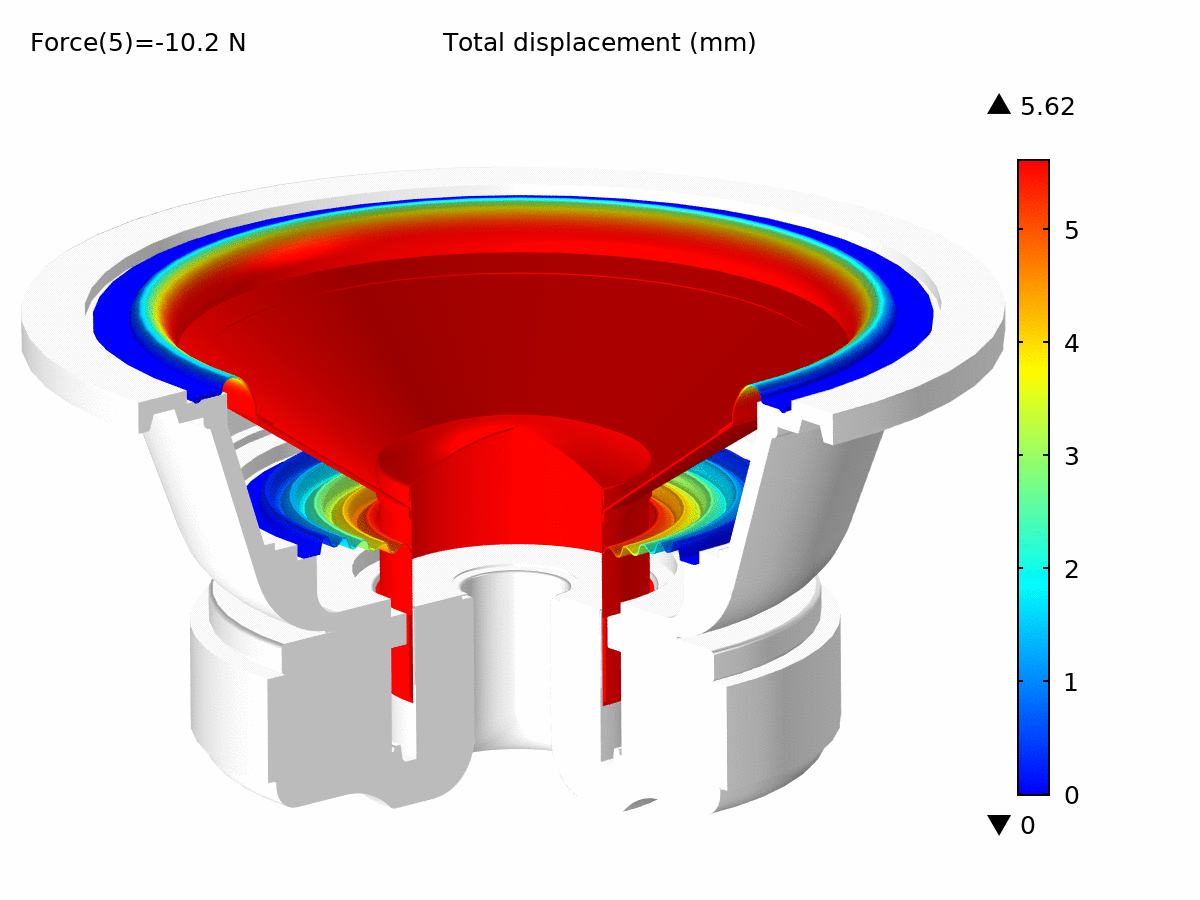

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 42.2 Hz
Mechanical Q factor [Qms] 2.374
Electrical Q factor [Qes] 0.372
Total Q factor [Qts]  0.322
Force factor [Bl] 7.065 Tm
Mechanical resistance [Rms]  2.31kg/s
Moving mass [Mms]   20.69 g
Compliance [Cms]  0.686mm/N
Effective diaph. diameter [D]   132.6 mm
Effective piston area [Sd]  138.09 cm²
Equivalent volume [Vas] 18.51 l
Sensitivity (2.83V/1m)   90 dB
Ratio Bl/√Re  3.84N/√W
Ratio fs/Qts  131.05 Hz
Electrical Data
Nominal impedance [Zn]   4 Ω
Minimum impedance [Zmin]   4.3 Ω
Maximum impedance [Zo]  24.1 Ω
DC resistance [Re]  3.38 Ω
Voice coil inductance [Le]   0.08 mH
Power Handling
100h RMS noise test (IEC 18.4) 80 W
Long-term max power (IEC 18.2) 100 W
Voice Coil & Magnet Data
Voice coil diameter  49.55 mm
Voice coil height  16 mm
Voice coil layers  2
Height of gap  6 mm
Linear excursion ± 5 mm
Max mech. excursion ± 12.5 mm
Unit weight 2.4  kg
