AUGWL0013-JN05
AUGWL0013-JN05
AUGWL0013-JN05

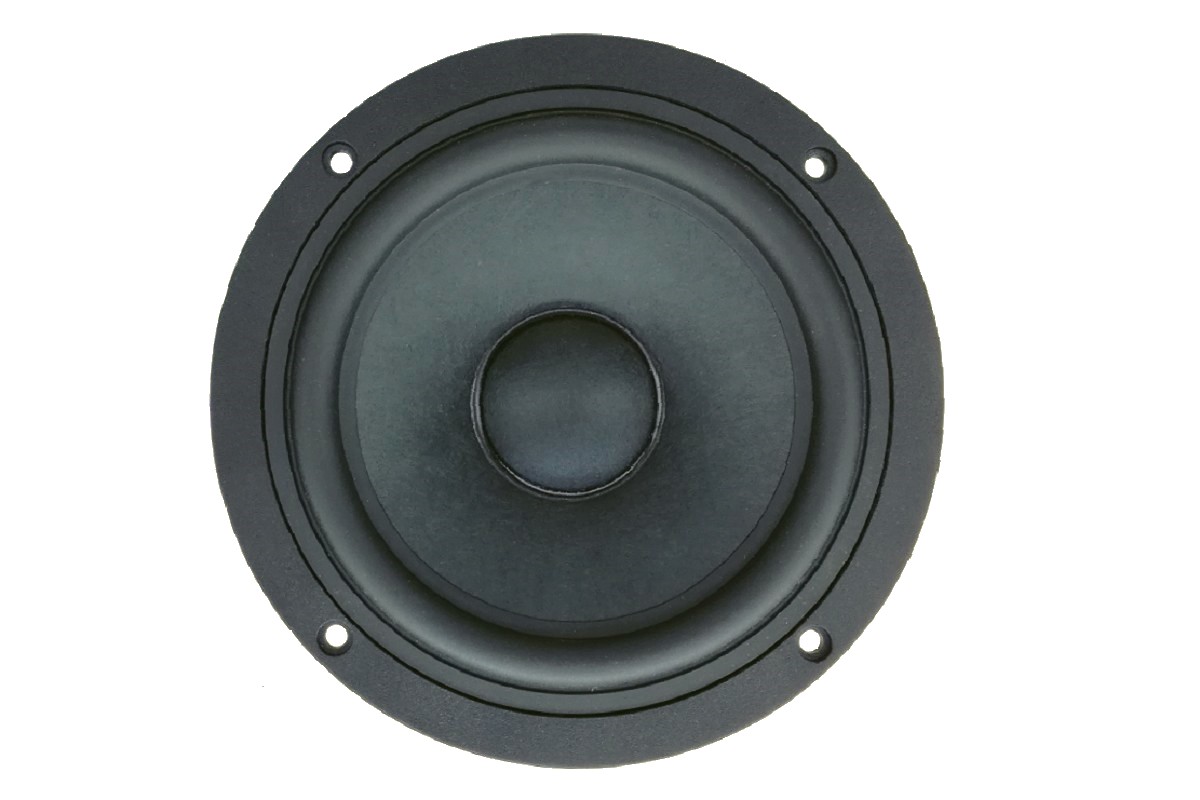

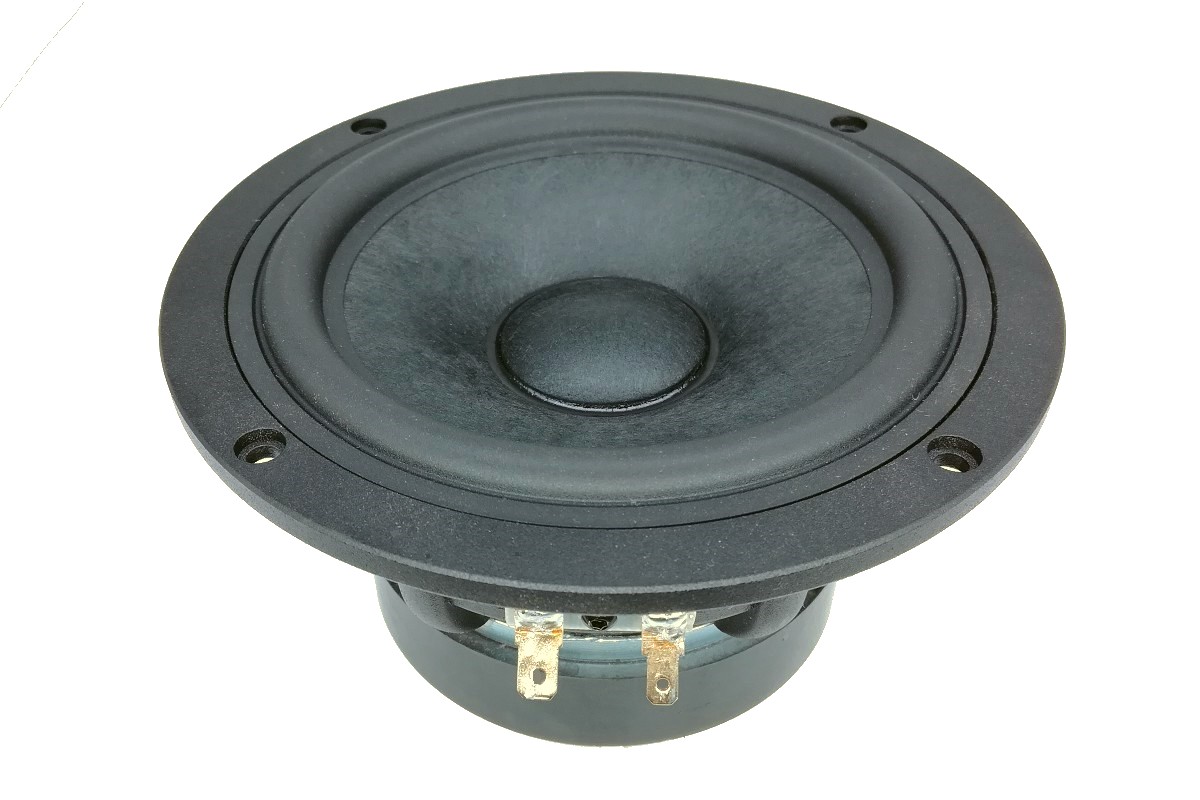

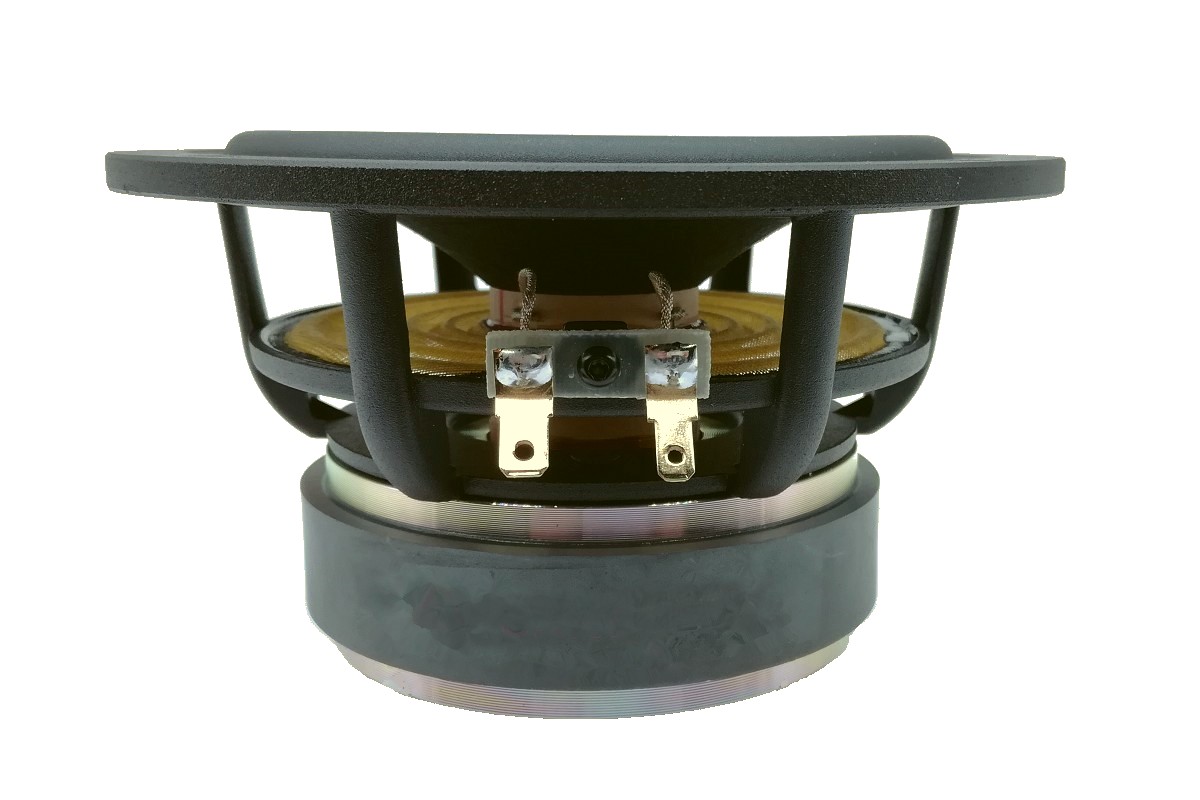

5.25" Carbon Pulp Woofer
AUGWL0013-JN05
Category - Woofer
Characteristics - Carbon Pulp Diaphragm
AUGWL0013-JN05
AUGWL0013-JN05
AUGWL0013-JN05

5.25" Carbon Pulp Woofer

AUGWL0013-JN05

Category - Woofer
Characteristics - Carbon Pulp Diaphragm
AUGWL0013-JN05
AUGWL0013-JN05
AUGWL0013-JN05
AUGWL0013-JN05
AUGWL0013-JN05
AUGWL0013-JN05
Description

This 5.25 inch Woofer, features 1.5 inch voice coil, pulp with carbon fiber cone, and ferrite magnet motor
system. As for the selection of material, this series of driver uses a new mixed material with pulp and
60% carbon fiber, it can greatly enhance the stiffness of the cone body and control range of the internal damping.

5.25" Carbon Pulp Woofer

AUGWL0013-JN05

Category - Woofer
Characteristics - Carbon Pulp Diaphragm
Features
  • 5.25”, Aluminum Die-cast Frame
  • 1.5” CCAW Voice Coil, Aluminum Former
  • Pulp and Carbon Fiber Cone, Rubber Surround
  • Ferrite Magnet Motor System
  • Conex Spider
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
5.25 Inch
50 Hz
4 Ohms
88 dB
0.34 Qts
50 W
Description

This 5.25 inch Woofer, features 1.5 inch voice coil, pulp with carbon fiber cone, and ferrite magnet motor
system. As for the selection of material, this series of driver uses a new mixed material with pulp and
60% carbon fiber, it can greatly enhance the stiffness of the cone body and control range of the internal damping.

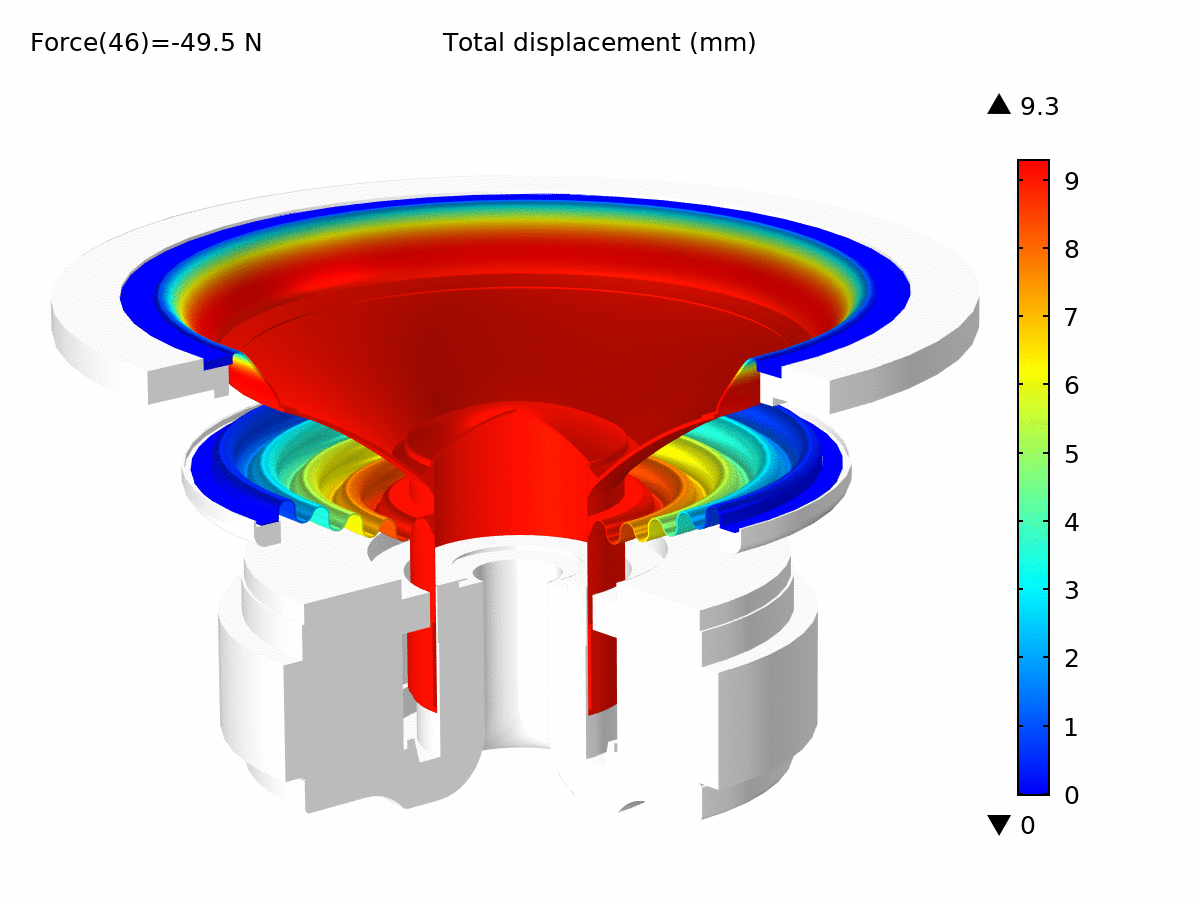

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 48.6 Hz
Mechanical Q factor [Qms] 2.076
Electrical Q factor [Qes] 0.409
Total Q factor [Qts]  0.341
Force factor [Bl] 5.714 Tm
Mechanical resistance [Rms] 1.825 kg/s
Moving mass [Mms]  12.414 g
Compliance [Cms] 0.865 mm/N
Effective diaph. diameter [D]  110 mm
Effective piston area [Sd] 95.03 cm²
Equivalent volume [Vas] 11.05 l
Sensitivity (2.83V/1m)  88 dB
Ratio Bl/√Re 3.05 N/√W
Ratio fs/Qts 142.52 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  4.14 Ω
Maximum impedance [Zo] 18.06 Ω
DC resistance [Re] 3.52 Ω
Voice coil inductance [Le]  0.129 mH
Power Handling
100h RMS noise test (IEC 18.4) 50 W
Long-term max power (IEC 18.2) 80 W
Voice Coil & Magnet Data
Voice coil diameter 35.5 mm
Voice coil height 15 mm
Voice coil layers 2
Height of gap 6 mm
Linear excursion ± 4.5 mm
Max mech. excursion ± 15.5 mm
Unit weight 1.53 kg
