Description

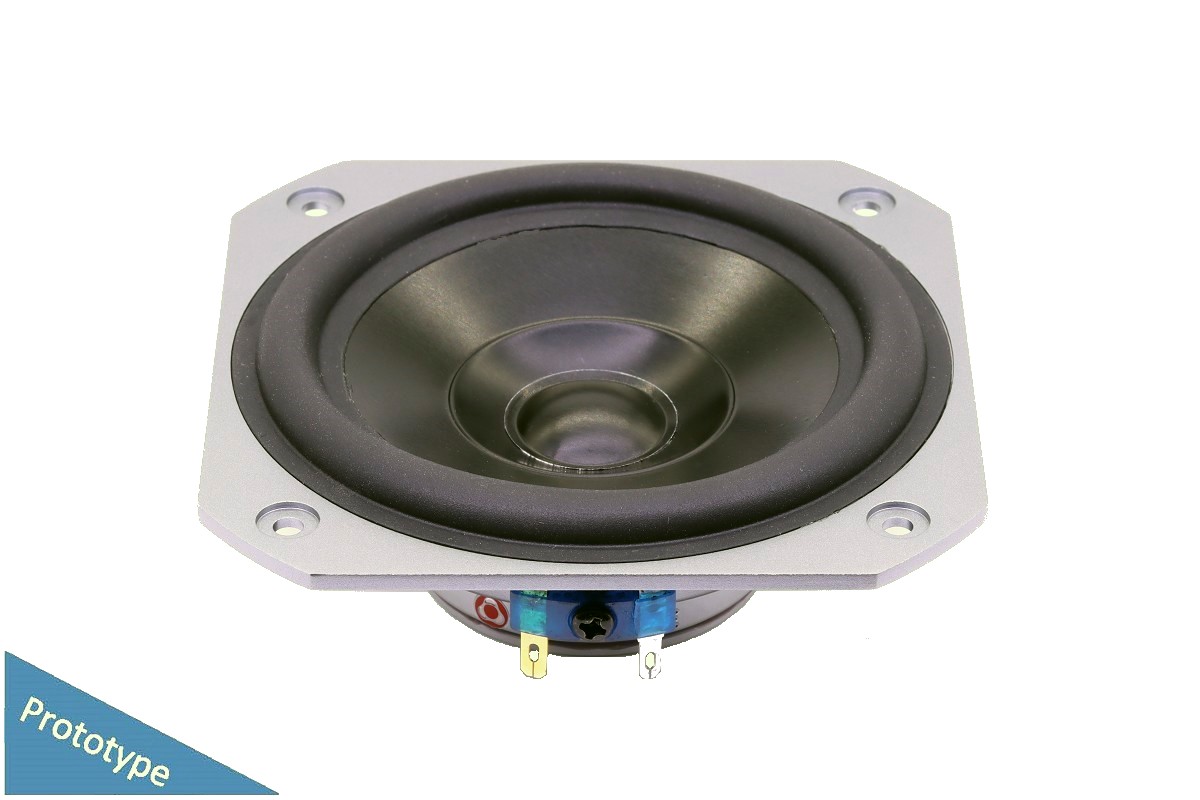

The 3.5 inch ultra-thin Woofer uses a Die-cast Aluminum frame and an oversized voice coil with short coil width is connected to the cone. This double radial and long magnet system provides high excursion and no stray magnetic field, while a large hole is punched in the bottom of the U-yoke to reduce air pressure at the high excursion. The black anodized cone and dust cap extend the frequency response to high frequency.

3.5" Radial Magnet Woofer

AUGWL0009-JN04

Category - Woofer
Features
  • 3.5", Aluminum Die-cast Frame
  • 1.4" CCAW Voice Coil, Aluminum Former

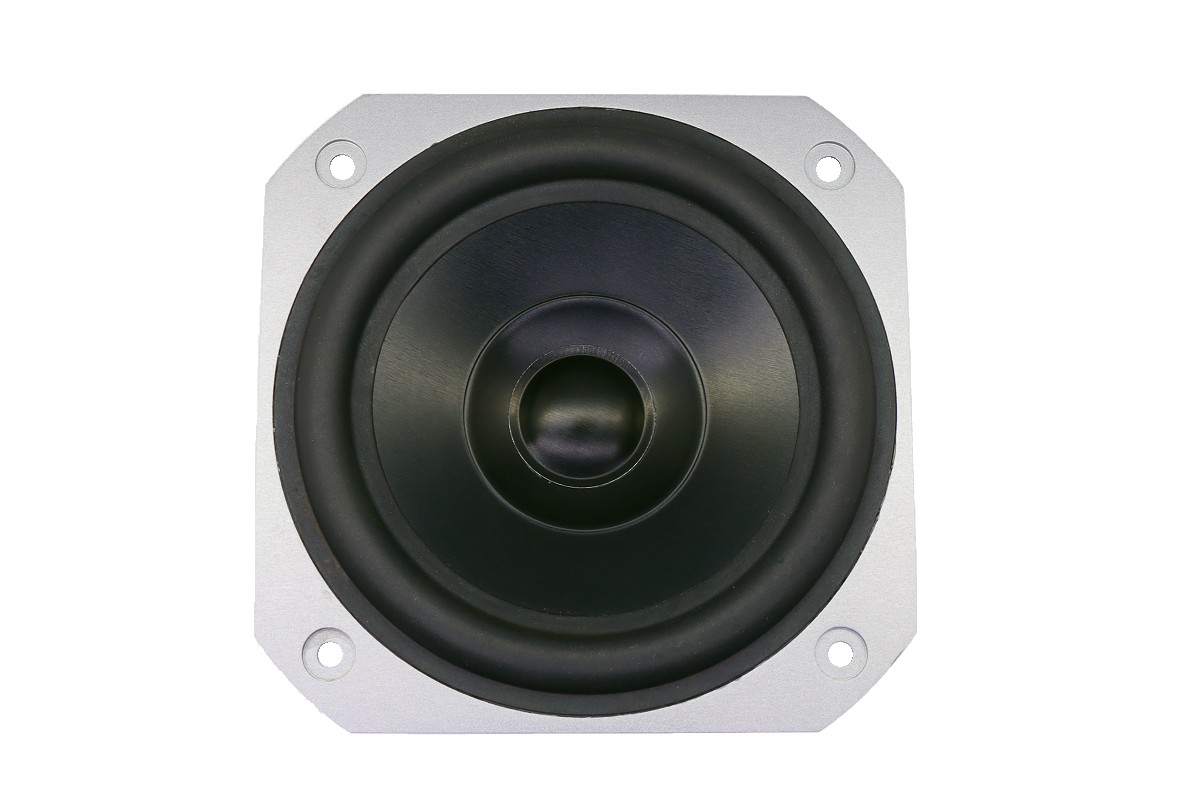

  • Aluminum Cone, Rubber Surround

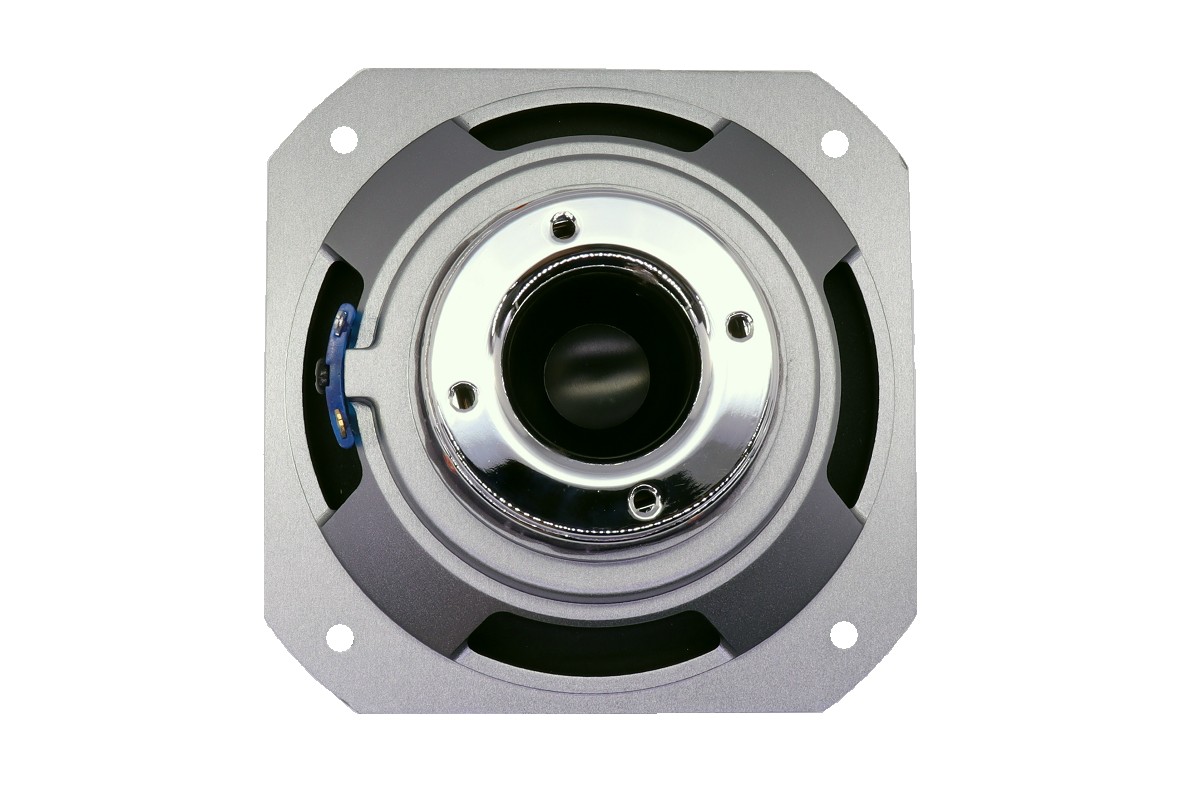

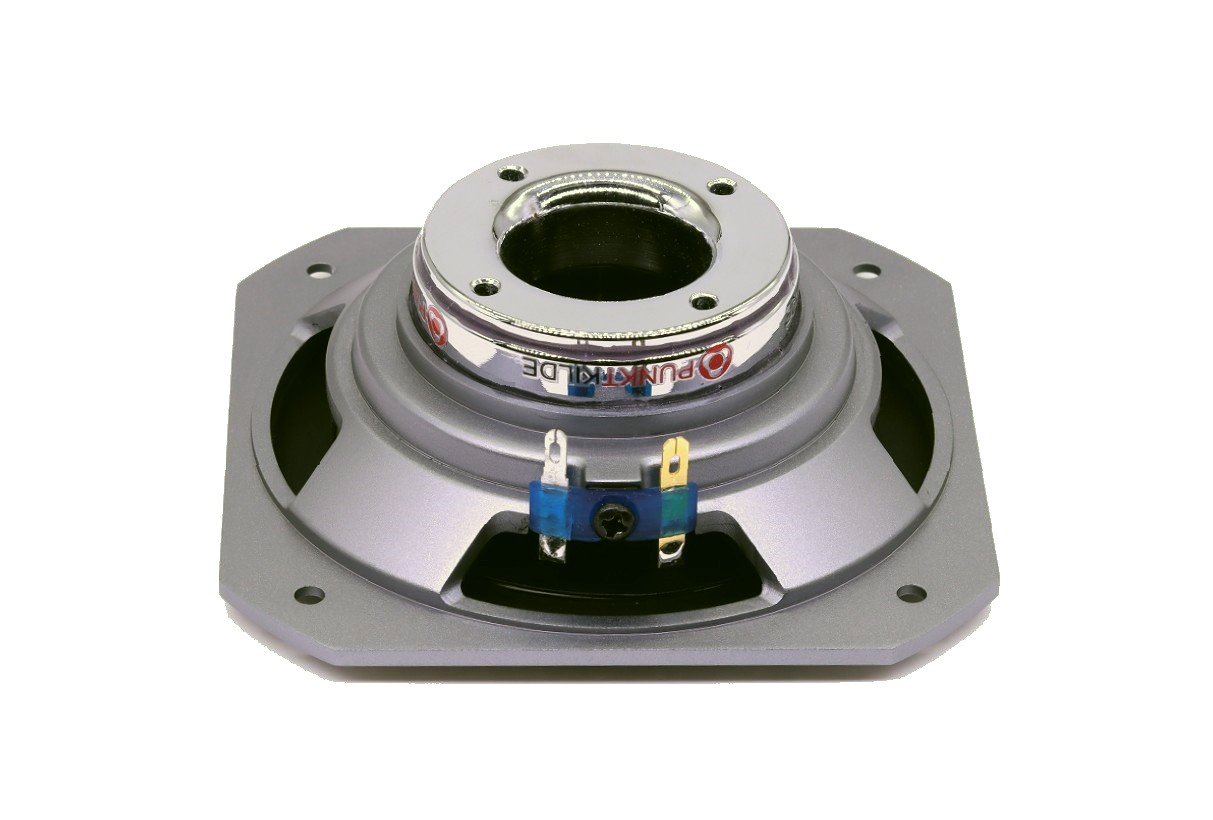

  • Radial Neodymium Magnet Motor System

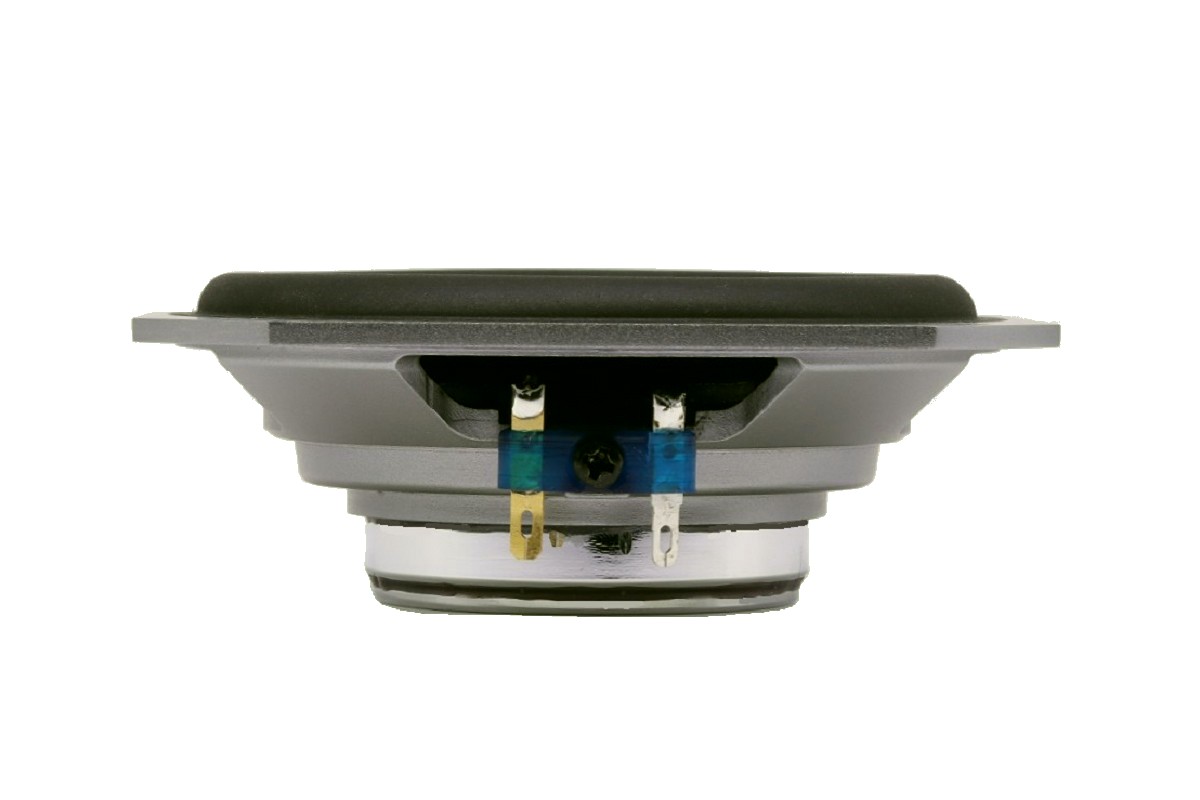

  • Slim Design
  • Low Distortion(<2%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
3.5 Inch
90 Hz
4 Ohms
88 dB
0.53 Qts
10 W
Description

The 3.5 inch ultra-thin Woofer uses a Die-cast Aluminum frame and an oversized voice coil with short coil width is connected to the cone. This double radial and long magnet system provides high excursion and no stray magnetic field, while a large hole is punched in the bottom of the U-yoke to reduce air pressure at the high excursion. The black anodized cone and dust cap extend the frequency response to high frequency.

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 92.4 Hz
Mechanical Q factor [Qms] 3.606
Electrical Q factor [Qes] 0.633
Total Q factor [Qts]  0.538
Force factor [Bl] 3.821 Tm
Mechanical resistance [Rms] 0.753 kg/s
Moving mass [Mms]  4.676 g
Compliance [Cms] 0.634 mm/N
Effective diaph. diameter [D]  76 mm
Effective piston area [Sd] 45.36 cm²
Equivalent volume [Vas] 1.85 l
Sensitivity (2.83V/1m)  88 dB
Ratio Bl/√Re 2.07 N/√W
Ratio fs/Qts 171.7 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.67 Ω
Maximum impedance [Zo] 25.22 Ω
DC resistance [Re] 3.4 Ω
Voice coil inductance [Le]  0.133 mH
Power Handling
100h RMS noise test (IEC 18.4) 10 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 35.55 mm
Voice coil height 3.6 mm
Voice coil layers 4
Height of gap 8 mm
Linear excursion ± 2.2 mm
Max mech. excursion ± 5.0 mm
Unit weight 0.171 kg
