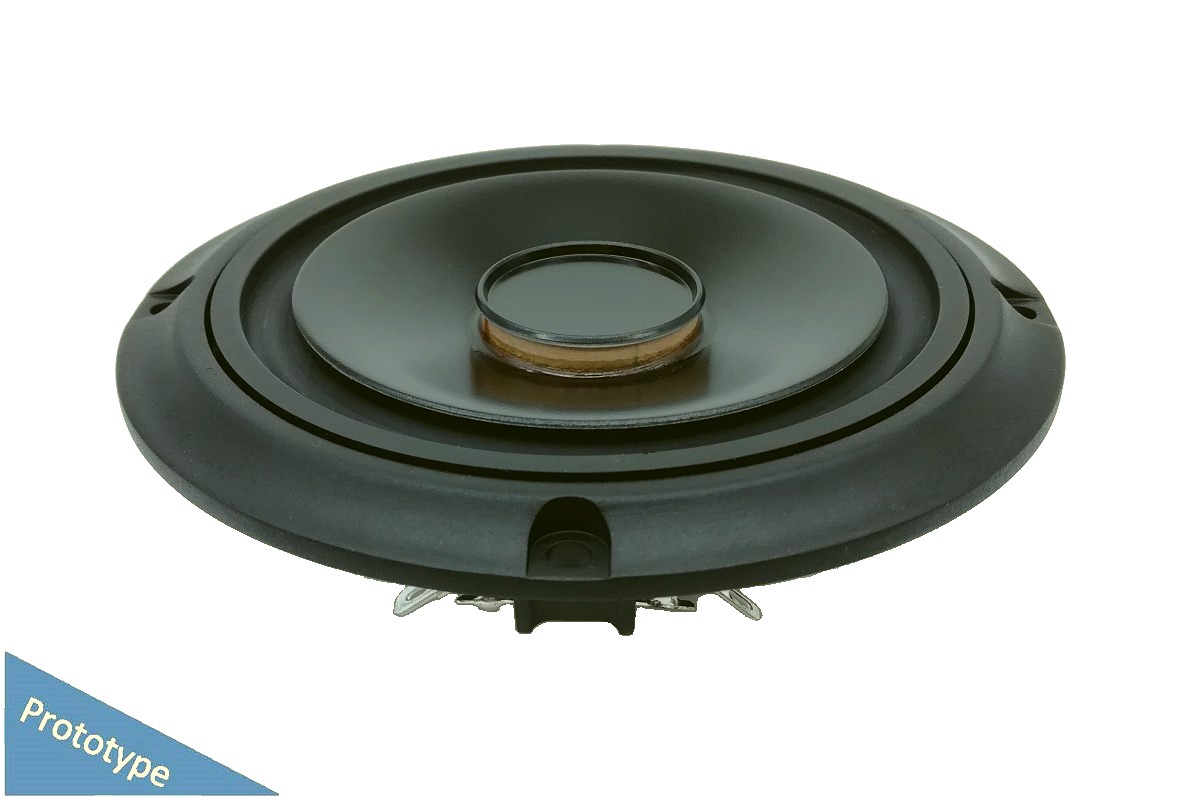

3.5" Ultra-Thin Series Woofer
AUGWL0009-JN01
This 3.5 inch Woofer, The main design features include a mineral-filled plastic basket, and a venting dual Neodymium magnet motor system. Ferro-fluid cooled to further lowering the distortion level. The main cone body uses black Anodized Aluminium cone , with one piece Anodized Aluminium dust cap, which is directly couple to voice coil. This product is designed for portable and compact applications.

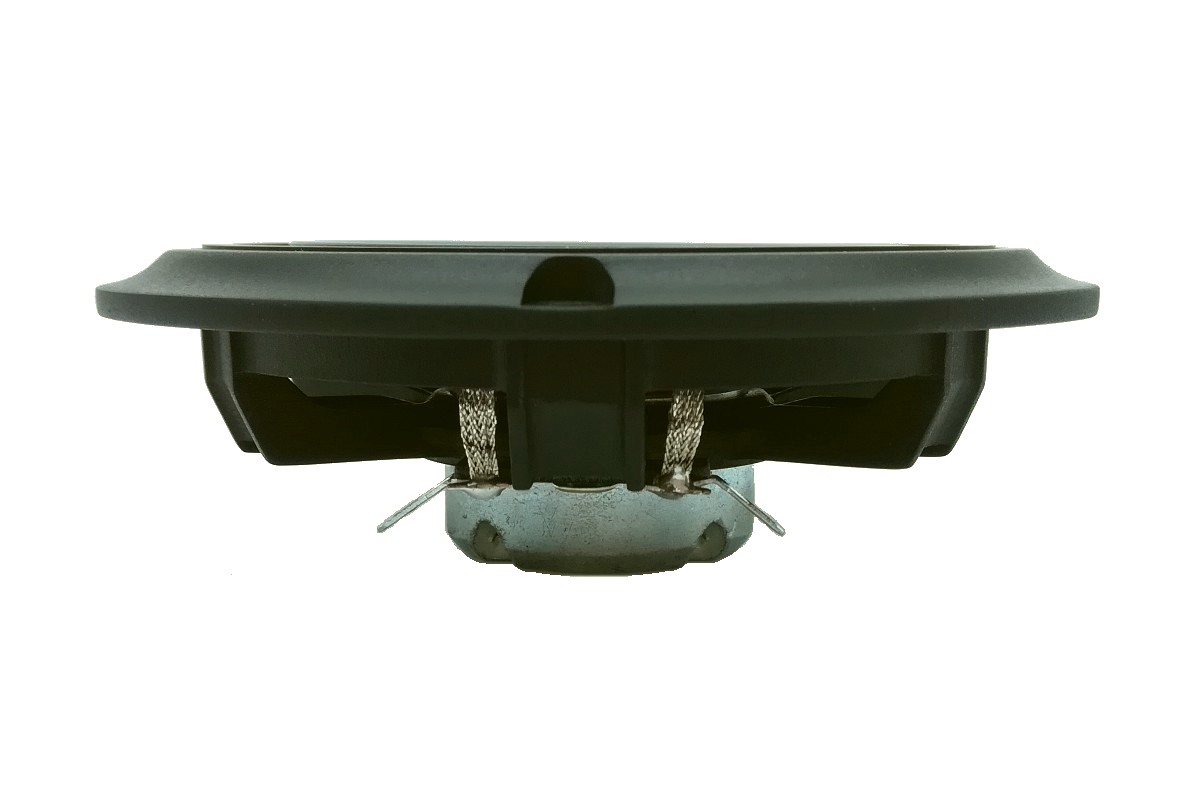

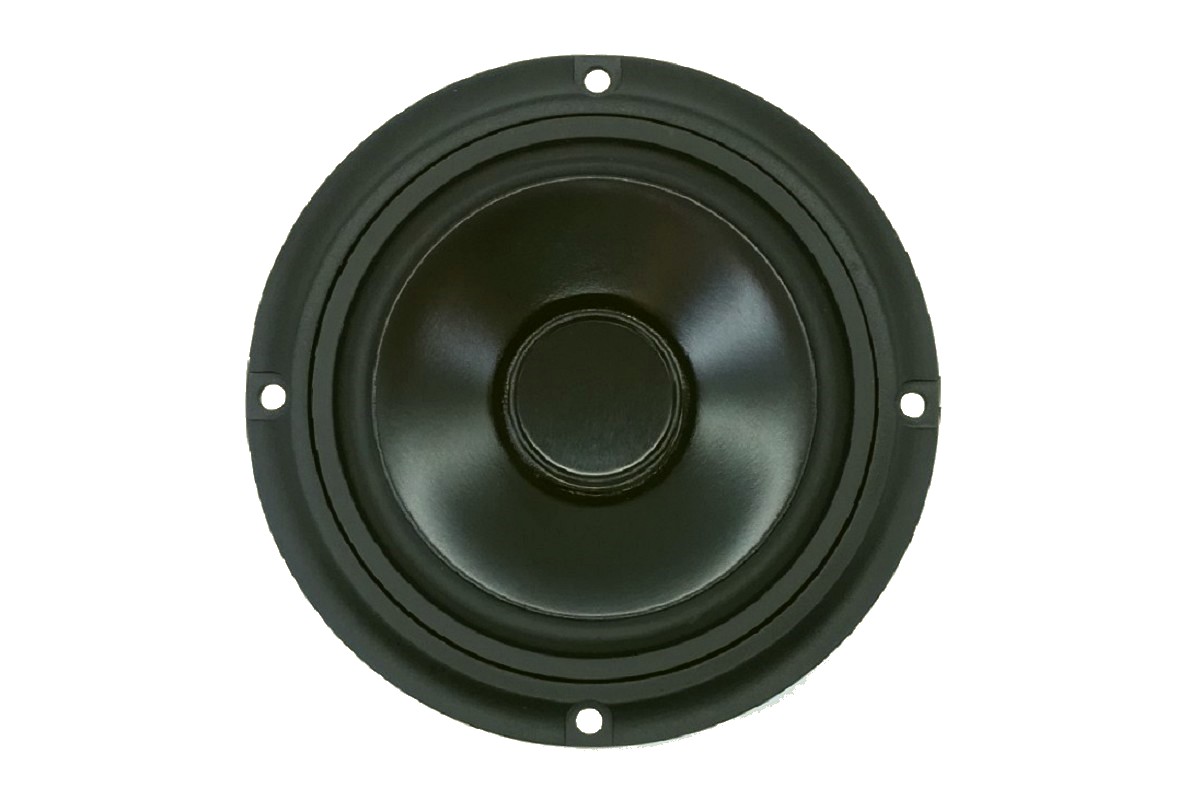

3.5" Ultra-Thin Series Woofer
AUGWL0009-JN01
- 3.5", Plastic Frame
- 1" CCAW Voice Coil, Aluminum Former
- Aluminum Cone, Rubber Surround
- Dual Neodymium Magnet Motor System
- Slim Design (Patented)
- Pole Piece Vent, Low Distortion(<3%)
This 3.5 inch Woofer, The main design features include a mineral-filled plastic basket, and a venting dual Neodymium magnet motor system. Ferro-fluid cooled to further lowering the distortion level. The main cone body uses black Anodized Aluminium cone , with one piece Anodized Aluminium dust cap, which is directly couple to voice coil. This product is designed for portable and compact applications.
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 94.7 Hz |
| Mechanical Q factor [Qms] | 3.894 |
| Electrical Q factor [Qes] | 0.54 |
| Total Q factor [Qts] | 0.477 |
| Force factor [Bl] | 5.019 Tm |
| Mechanical resistance [Rms] | 1.416 kg/s |
| Moving mass [Mms] | 9.267 g |
| Compliance [Cms] | 0.305 mm/N |
| Effective diaph. diameter [D] | 74 mm |
| Effective piston area [Sd] | 43.01 cm² |
| Equivalent volume [Vas] | 0.7977 l |
| Sensitivity (2.83V/1m) | 87 dB |
| Ratio Bl/√Re | 3.19 N/√W |
| Ratio fs/Qts | 198.5 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 3 Ω |
| Minimum impedance [Zmin] | 2.45 Ω |
| Maximum impedance [Zo] | 11.18 Ω |
| DC resistance [Re] | 2.48 Ω |
| Voice coil inductance [Le] | 0.378 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 10 W |
| Long-term max power (IEC 18.2) | 15 W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 25.4 mm |
| Voice coil height | 11.5 mm |
| Voice coil layers | 4 |
| Height of gap | 4.0 mm |

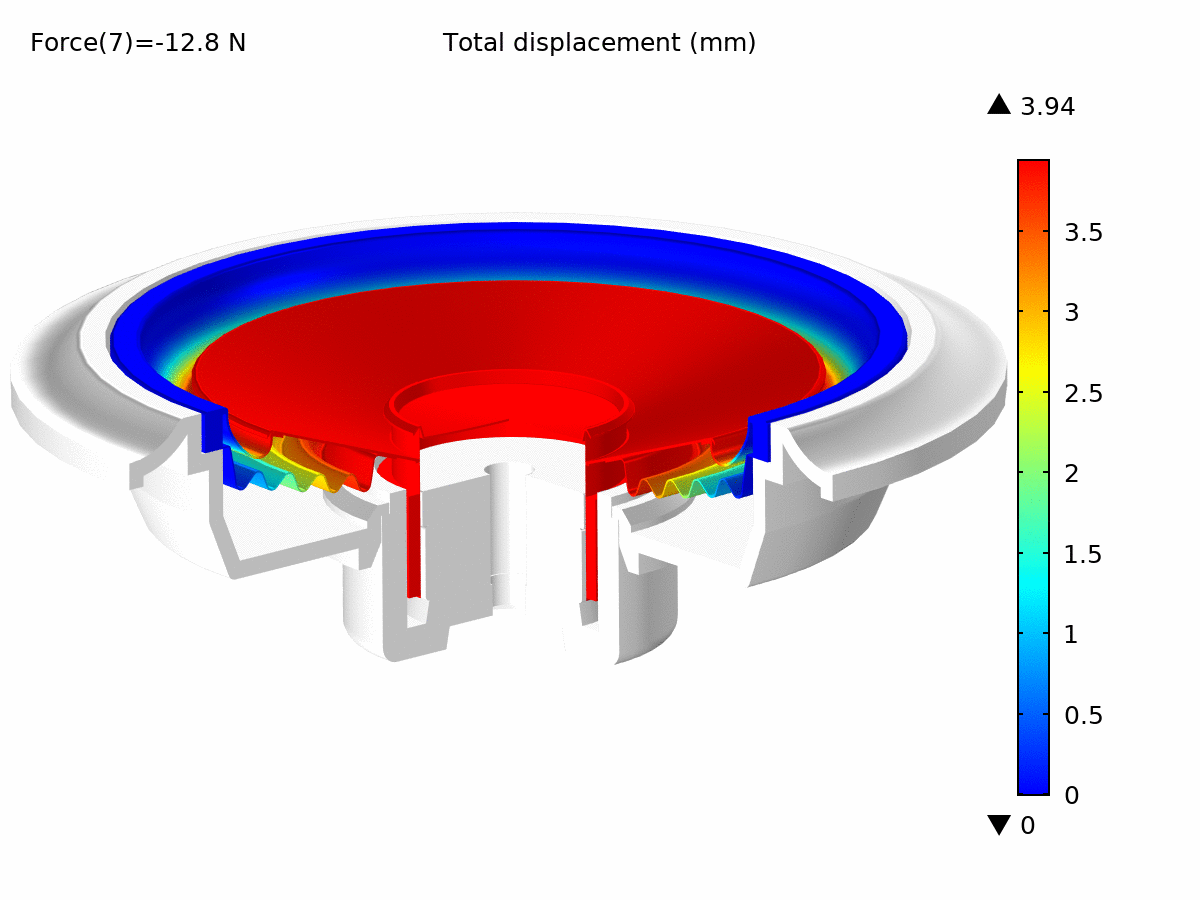

| Linear excursion | ± 3.75 mm |
| Max mech. excursion | ± 5.5 mm |
| Unit weight | 0.175 kg |
