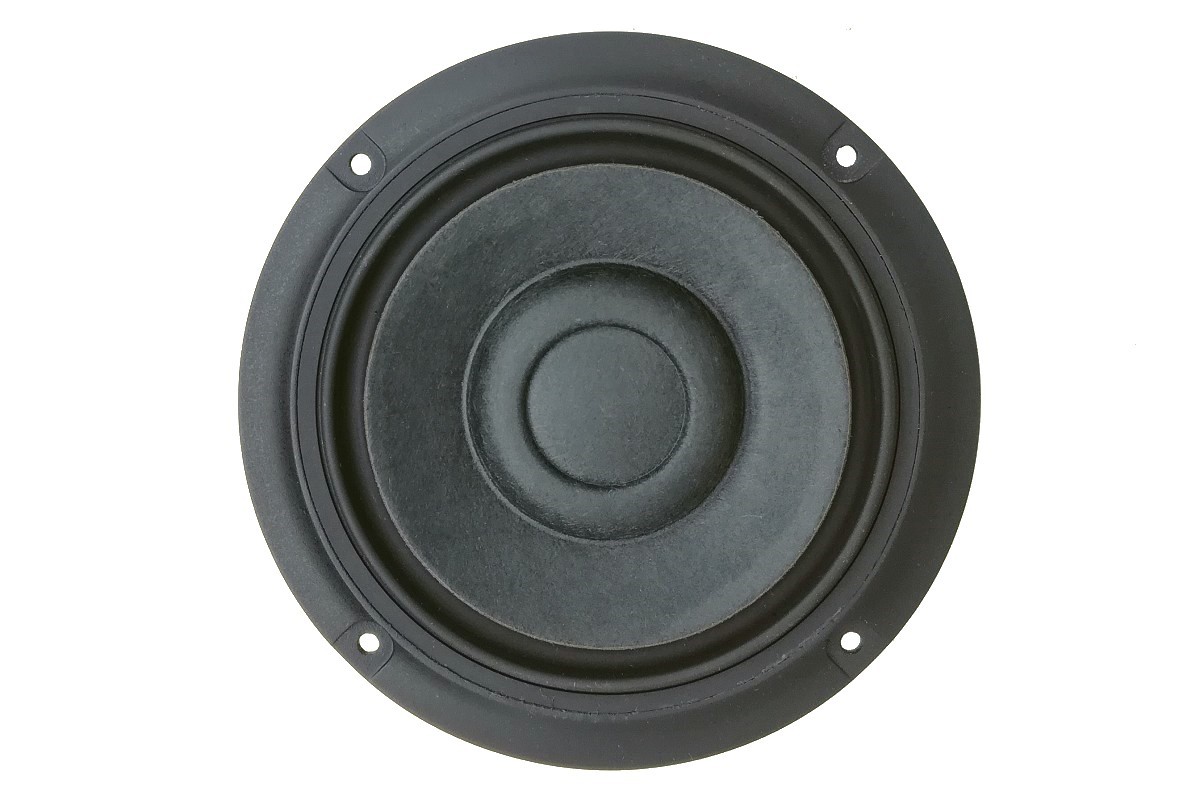

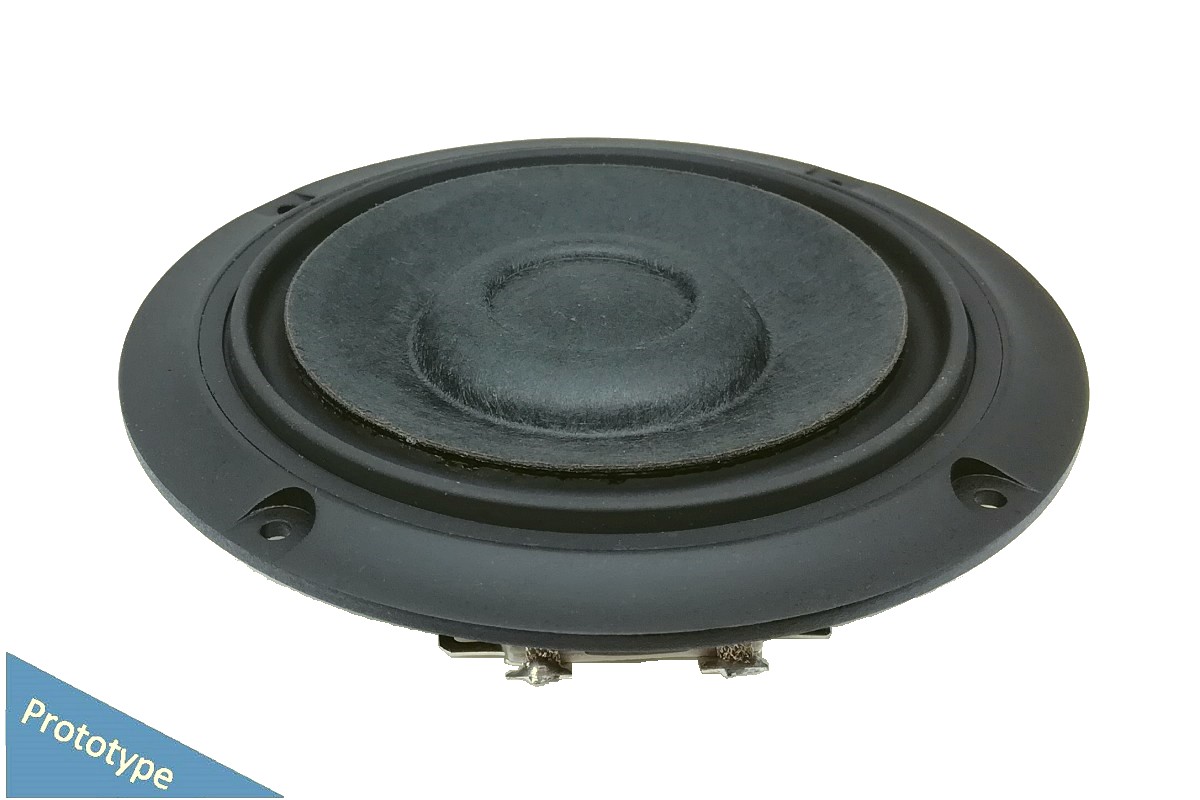

3" Ultra-Thin Series Woofer
AUGWL0008-JN06
This 3 inch Woofer, features 1 inch voice coil with CCAW, Aluminum former, and Neodymium magnet motor system. The main cone body uses PULP with the carbon fiber to make sure the driver has a better stiffness and lower distortion. What’s more, U-yoke is embedded in the bracket to reduce overall height without affecting amplitude, and the overall design meets the requirements for ultra-thin performance.
3" Ultra-Thin Series Woofer
AUGWL0008-JN06
- 3”, Plastic Frame
- 1” CCAW Voice Coil, Aluminum Former
- PULP and Carbon Cone Design
- Neodymium Magnet Motor System

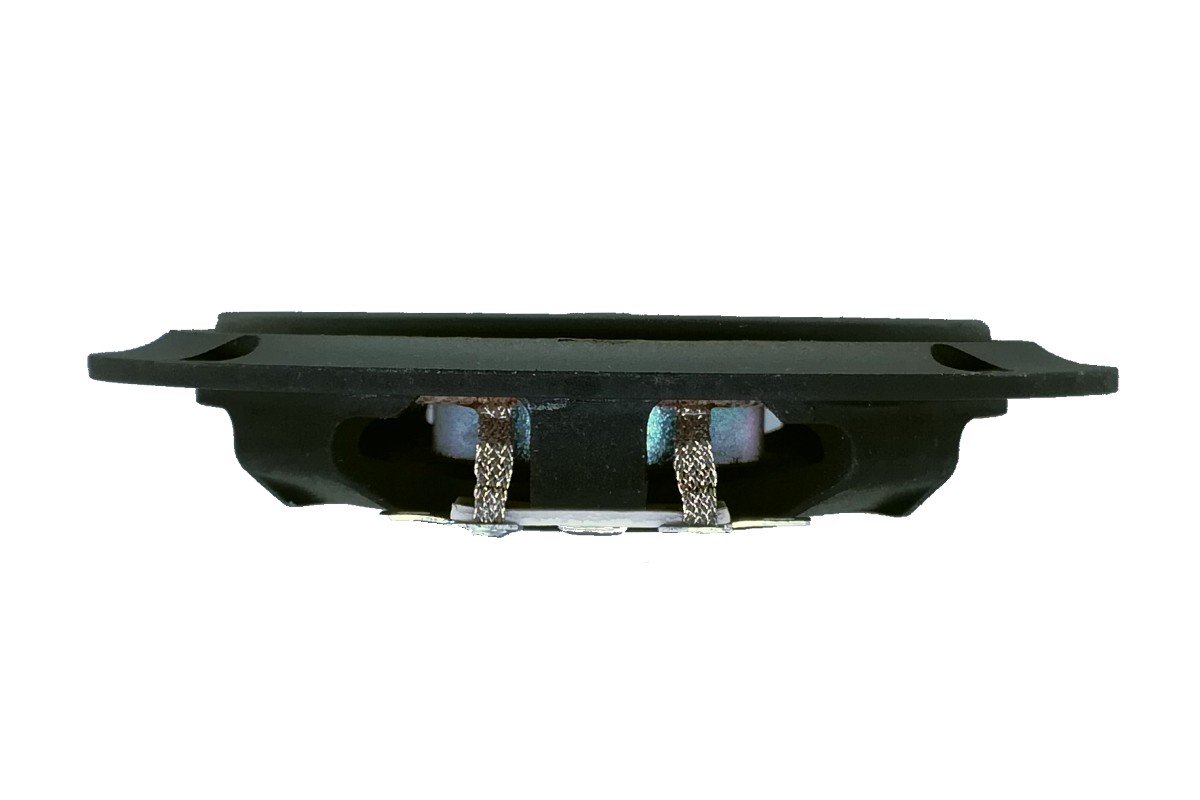

- Slim Design (Patented)
- Low Distortion (<3%)
This 3 inch Woofer, features 1 inch voice coil with CCAW, Aluminum former, and Neodymium magnet motor system. The main cone body uses PULP with the carbon fiber to make sure the driver has a better stiffness and lower distortion. What’s more, U-yoke is embedded in the bracket to reduce overall height without affecting amplitude, and the overall design meets the requirements for ultra-thin performance.
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 136.3 Hz |
| Mechanical Q factor [Qms] | 7.064 |
| Electrical Q factor [Qes] | 1.122 |
| Total Q factor [Qts] | 0.968 |
| Force factor [Bl] | 5.185 Tm |
| Mechanical resistance [Rms] | 0.638 kg/s |
| Moving mass [Mms] | 5.265 g |
| Compliance [Cms] | 0.259 mm/N |
| Effective diaph. diameter [D] | 72 mm |
| Effective piston area [Sd] | 40.72 cm² |
| Equivalent volume [Vas] | 0.6073 l |
| Sensitivity (2.83V/1m) | 84 dB |
| Ratio Bl/√Re | 2.006 N/√W |
| Ratio fs/Qts |
140.81 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 8 Ω |
| Minimum impedance [Zmin] | 6.46 Ω |
| Maximum impedance [Zo] | 38.09 Ω |
| DC resistance [Re] | 6.82 Ω |
| Voice coil inductance [Le] | 0.487 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 5 W |
| Long-term max power (IEC 18.2) | 10 W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 25.4 mm |
| Voice coil height | 6.3 mm |
| Voice coil layers | 4 |
| Height of gap | 4 mm |

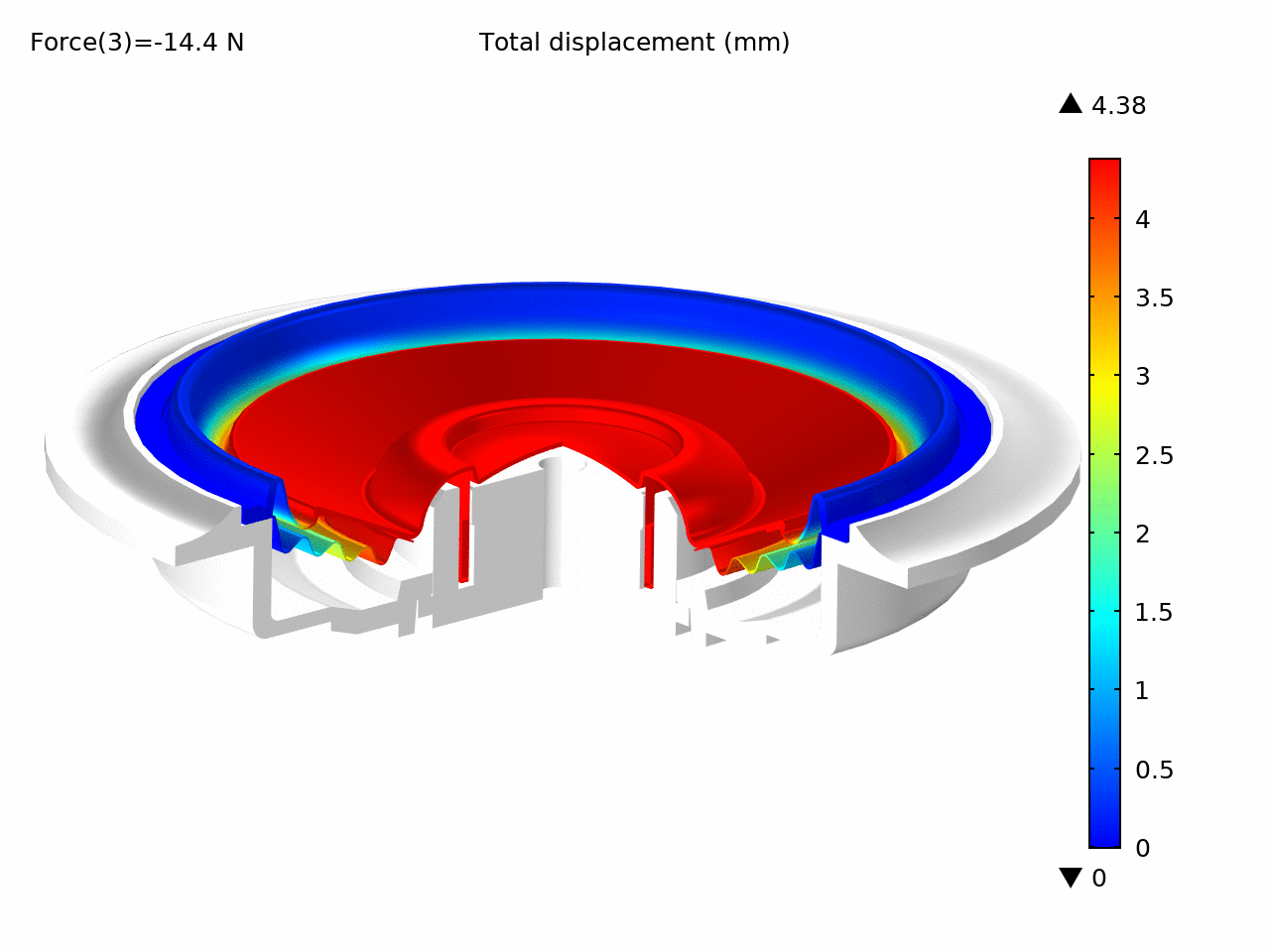

| Linear excursion | ± 1.1 mm |
| Max mech. excursion | ± 4.0 mm |
| Unit weight | 0.126 kg |
