Description

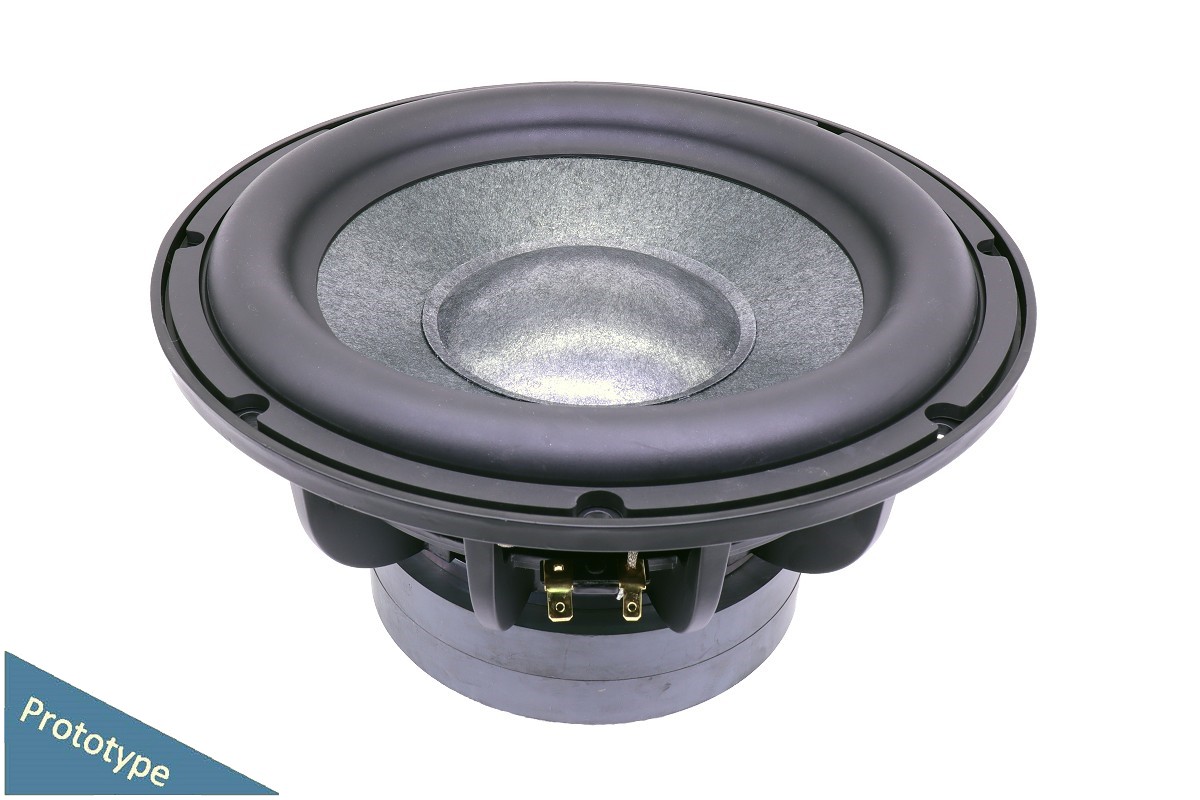

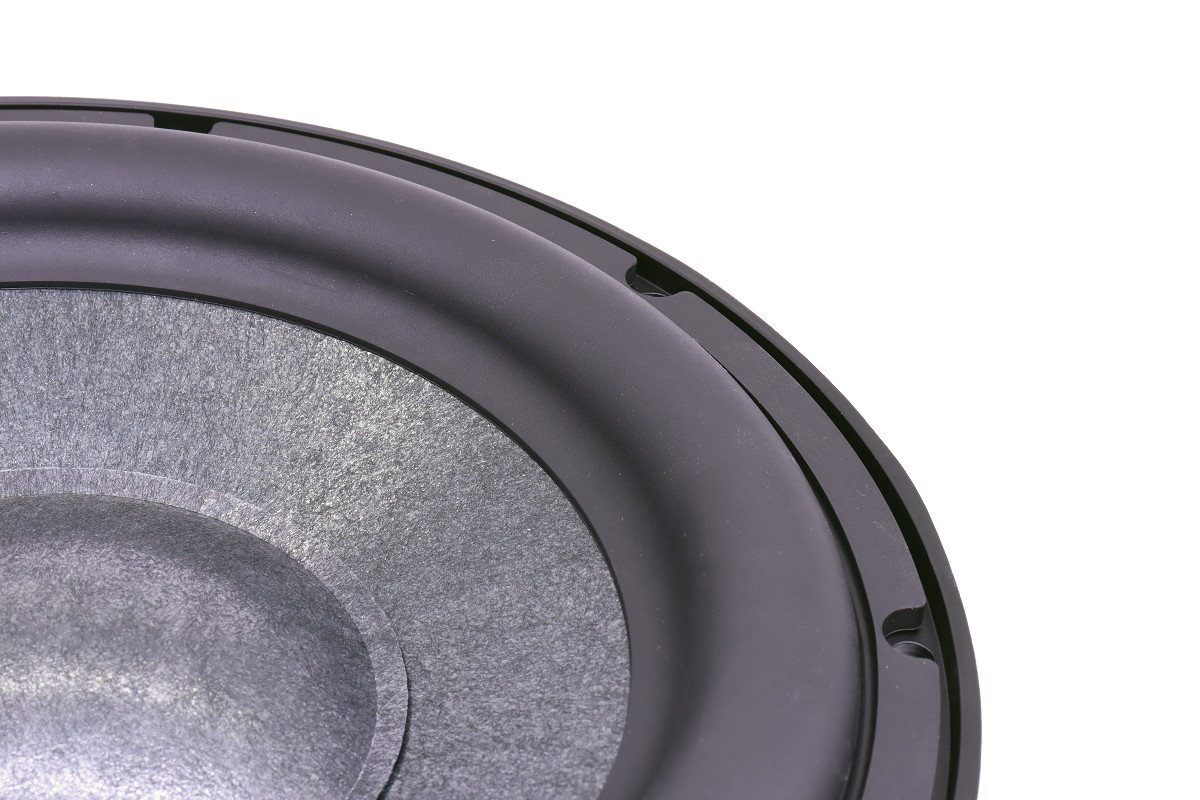

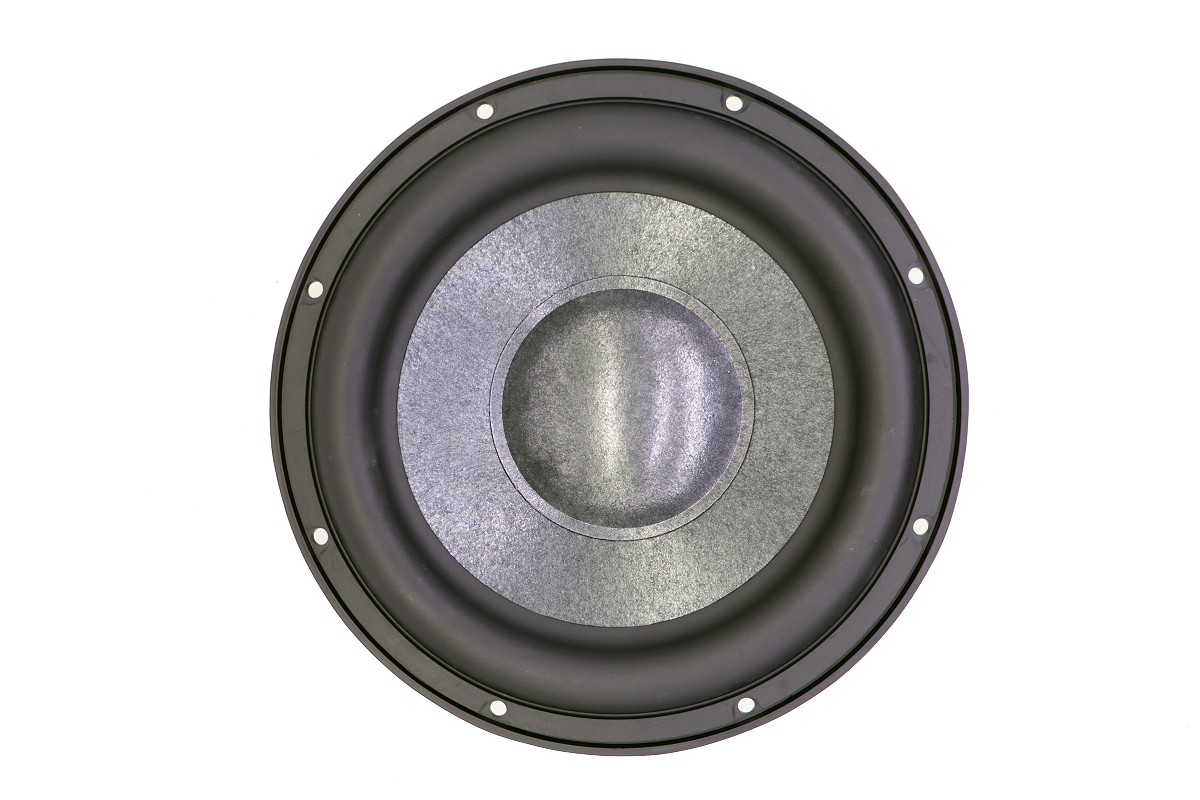

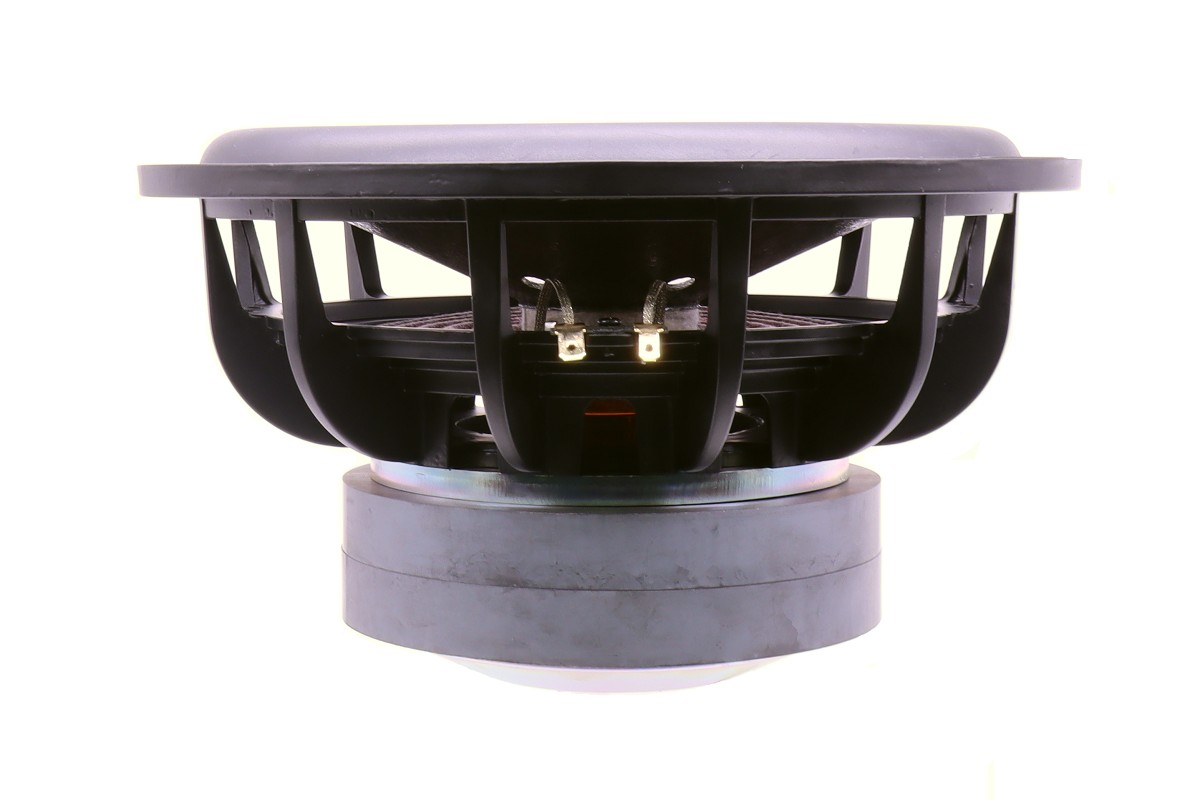

This 10 inch Woofer, features 2.0 inch voice coil, new mixed pulp and mica cone and ferrite magnet motor system. The frequency response can be extended up to 3K to produce soft and delicate sound.

10" Mica Cone Subwoofer

AUGSL0002-JN01

Category - Subwoofer
Characteristics -
Features
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
10 Inch
25 Hz
4 Ohms
87 dB
0.3 Qts
250 W
Description

This 10 inch Woofer, features 2.0 inch voice coil, new mixed pulp and mica cone and ferrite magnet motor system. The frequency response can be extended up to 3K to produce soft and delicate sound.

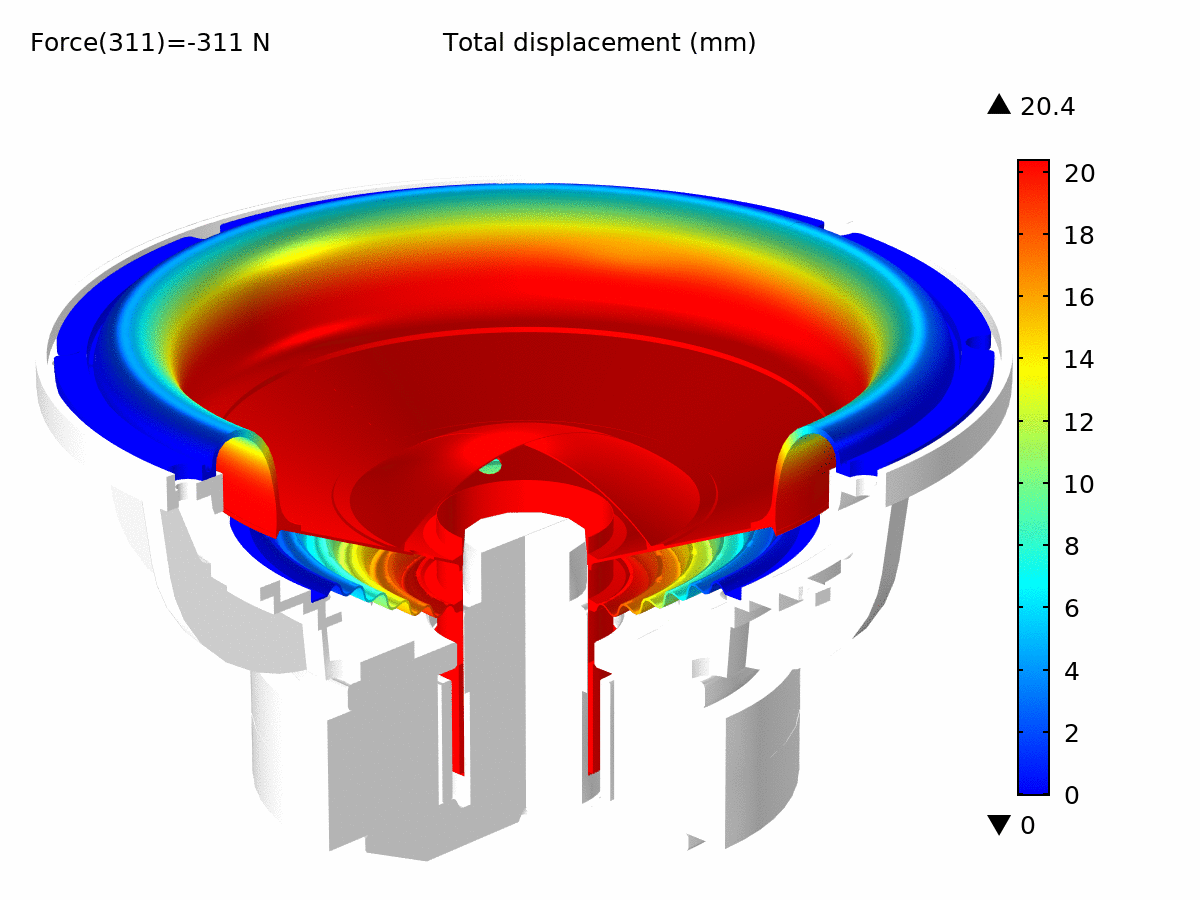

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 24.5 Hz
Mechanical Q factor [Qms] 13.65
Electrical Q factor [Qes] 0.304
Total Q factor [Qts]  0.297
Force factor [Bl] 13.49 Tm
Mechanical resistance [Rms] 1.457 kg/s
Moving mass [Mms]  129 g
Compliance [Cms] 0.326 mm/N
Effective diaph. diameter [D]  215 mm
Effective piston area [Sd] 363.05 cm²
Equivalent volume [Vas] 60.85 l
Sensitivity (2.83V/1m)  86.5 dB
Ratio Bl/√Re 8.08 N/√W
Ratio fs/Qts 82.49 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.7 Ω
Maximum impedance [Zo] 87.19 Ω
DC resistance [Re] 2.78 Ω
Voice coil inductance [Le]  0.941 mH
Power Handling
100h RMS noise test (IEC 18.4) 250 W
Long-term max power (IEC 18.2) 350 W
Voice Coil & Magnet Data
Voice coil diameter 49.55 mm
Voice coil height 33.8 mm
Voice coil layers 4
Height of gap 8 mm
Linear excursion ± 12.9 mm
Max mech. excursion ± 29 mm
Unit weight 6.85 kg
