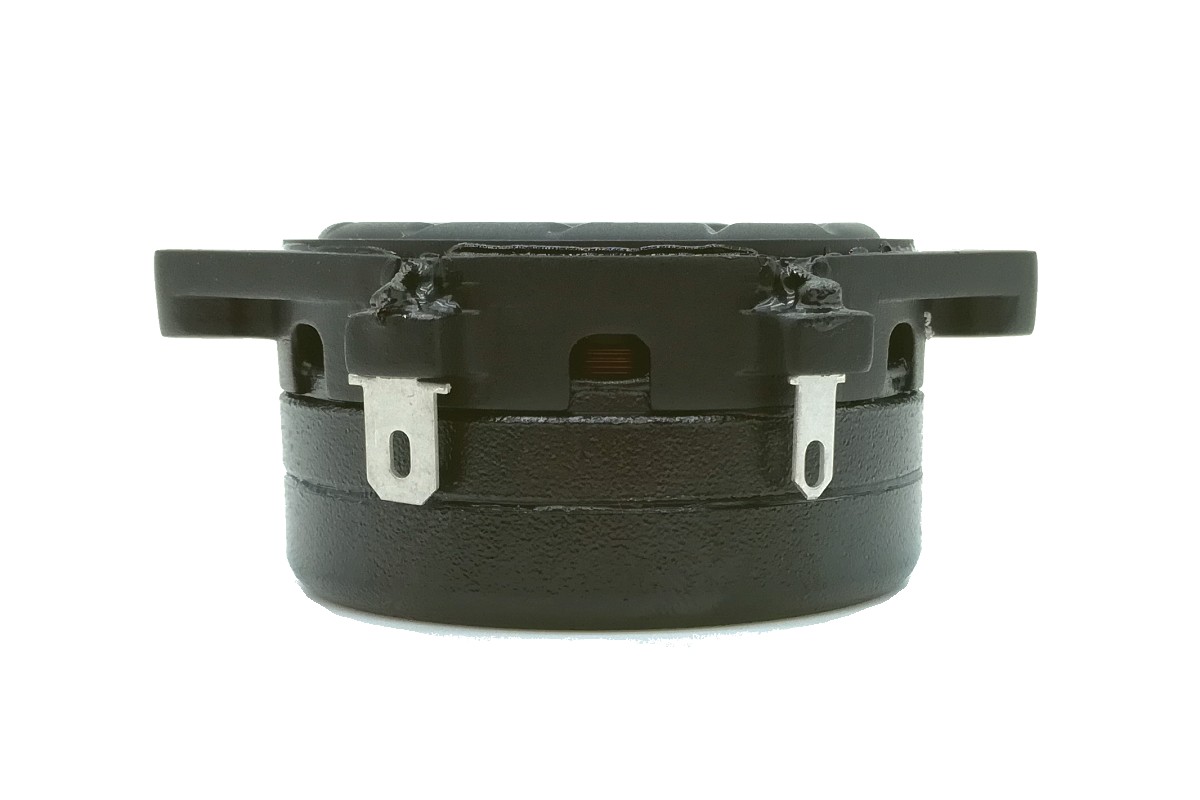

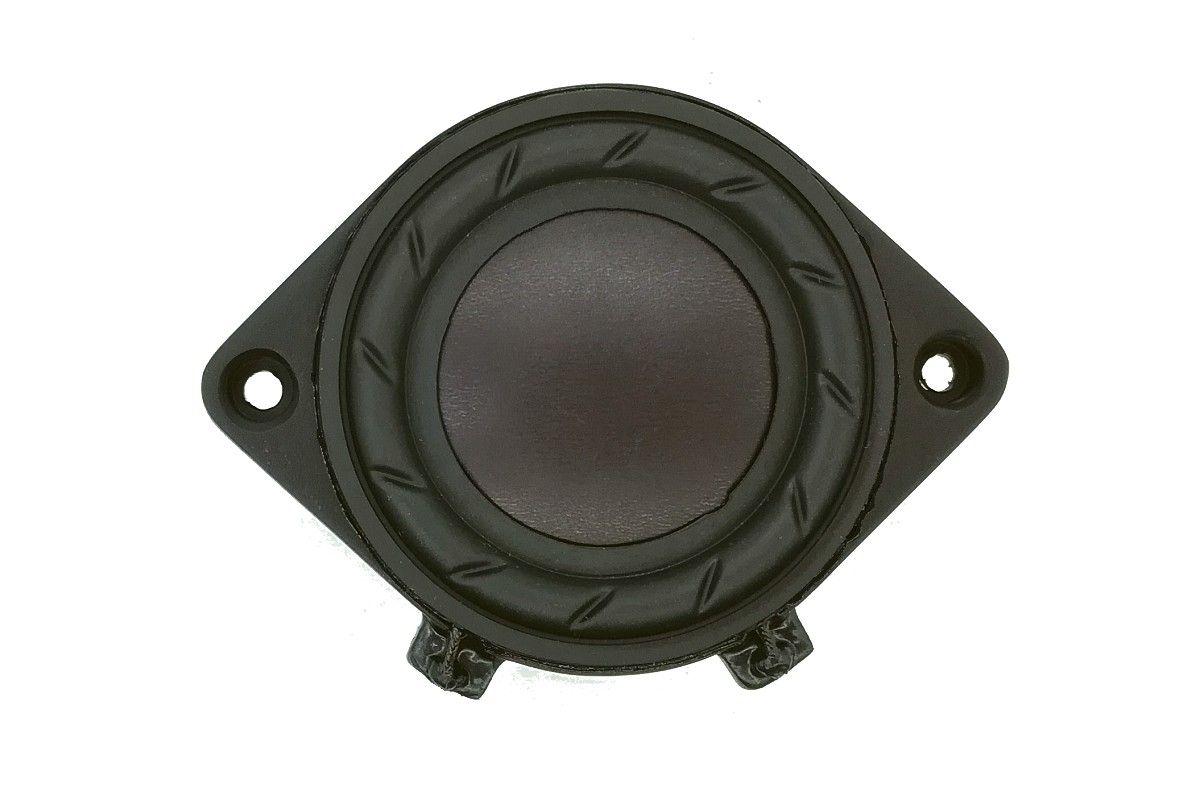

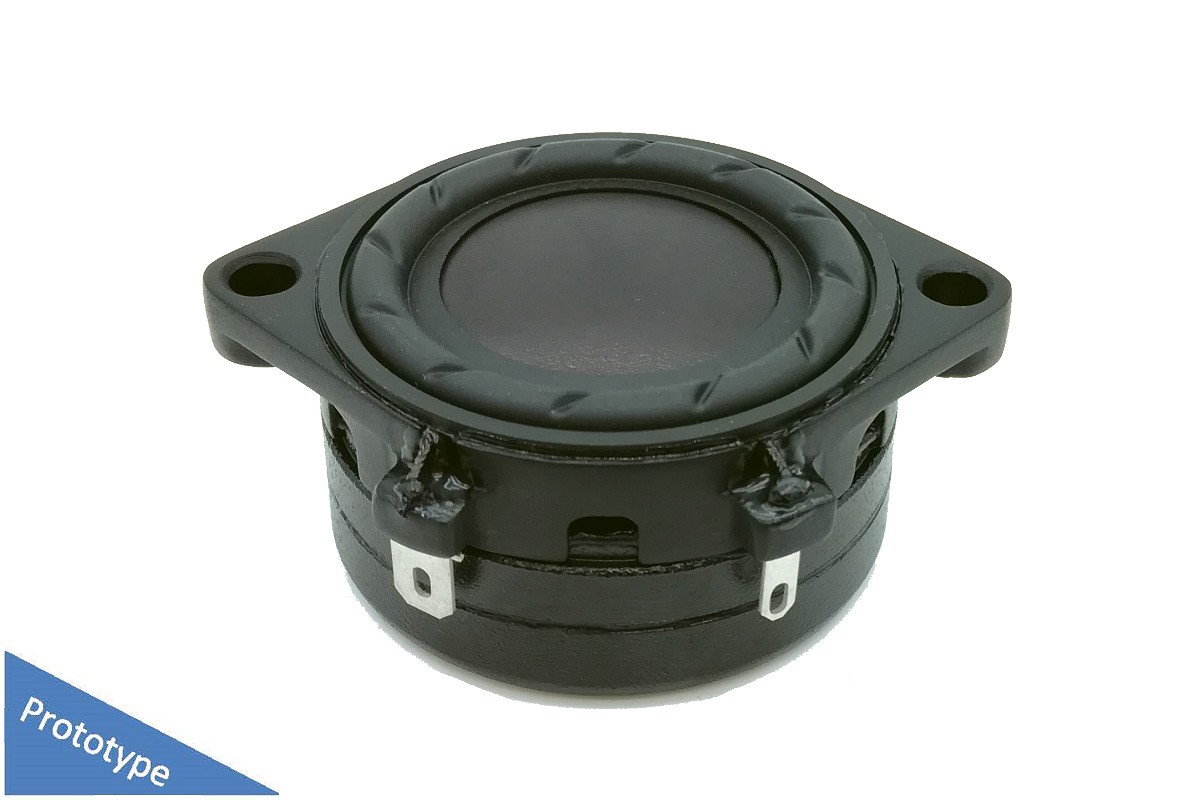

1.5" Symmetry Suspension Fullrange
AUGPL0004-JN03
Category - Fullrange
Characteristics - Compact Line
AUGPL0004-JN03
AUGPL0004-JN03
AUGPL0004-JN03

1.5" Symmetry Suspension Fullrange

AUGPL0004-JN03

Category - Fullrange
Characteristics - Compact Line
AUGPL0004-JN03
AUGPL0004-JN03
AUGPL0004-JN03
AUGPL0004-JN03
AUGPL0004-JN03
AUGPL0004-JN03
Description

This compact driver design features patented symmetry suspension, which provides excellent centering of voice coil at high excursion. Integral “one-piece” Magaluma diaphragm and voice coil former design to aid cooling of the motor. The diaphragm comes equipped with special-designed rubber surround, which helps to dampen the diaphragm resonance. The basket, voice coil former and bottom plate are vented to reduce air compression and lower distortion. This product was designed with compact sound bars and portable speaker applications.

1.5" Symmetry Suspension Fullrange

AUGPL0004-JN03

Category - Fullrange
Characteristics - Compact Line
Features
  • 1.5", Plastic Frame
  • Magaluma Diaphragm
  • Neodymium Magnet Motor System
  • Diaphragm and VC Fomer One-piece Design
  • Low Distortion(<3%)
  • Symmetry Suspension System (Patented)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
1.5 Inch
115 Hz
4 Ohms
80 dB
0.28 Qts
10 W
Description

This compact driver design features patented symmetry suspension, which provides excellent centering of voice coil at high excursion. Integral “one-piece” Magaluma diaphragm and voice coil former design to aid cooling of the motor. The diaphragm comes equipped with special-designed rubber surround, which helps to dampen the diaphragm resonance. The basket, voice coil former and bottom plate are vented to reduce air compression and lower distortion. This product was designed with compact sound bars and portable speaker applications.

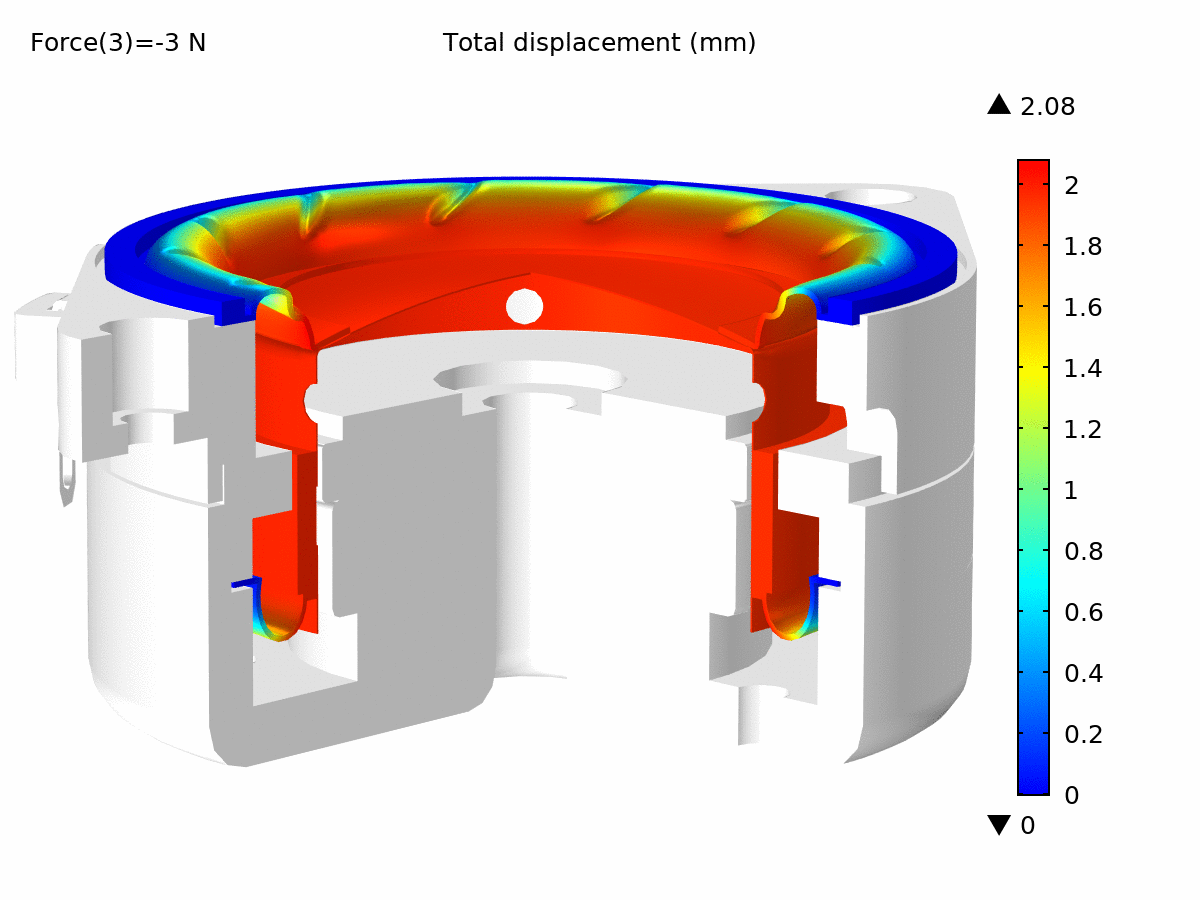

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 116 Hz
Mechanical Q factor [Qms] 1.514
Electrical Q factor [Qes] 0.343
Total Q factor [Qts]  0.279
Force factor [Bl] 4.602 Tm
Mechanical resistance [Rms] 1.299 kg/s
Moving mass [Mms]  2.686 g
Compliance [Cms] 0.694 mm/N
Effective diaph. diameter [D]  35.5 mm
Effective piston area [Sd] 9.9 cm²
Equivalent volume [Vas] 0.096 l
Sensitivity (2.83V/1m)  80 dB
Ratio Bl/√Re 2.4 N/√W
Ratio fs/Qts 415 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.841 Ω
Maximum impedance [Zo] 15.40 Ω
DC resistance [Re] 3.7 Ω
Voice coil inductance [Le]  0.261 mH
Power Handling
100h RMS noise test (IEC 18.4) 10 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 30.5 mm
Voice coil height 7.1 mm
Voice coil layers 4
Height of gap 3 mm
Linear excursion ± 2.05 mm
Max mech. excursion ± 4.0 mm
Unit weight 0.143 kg
