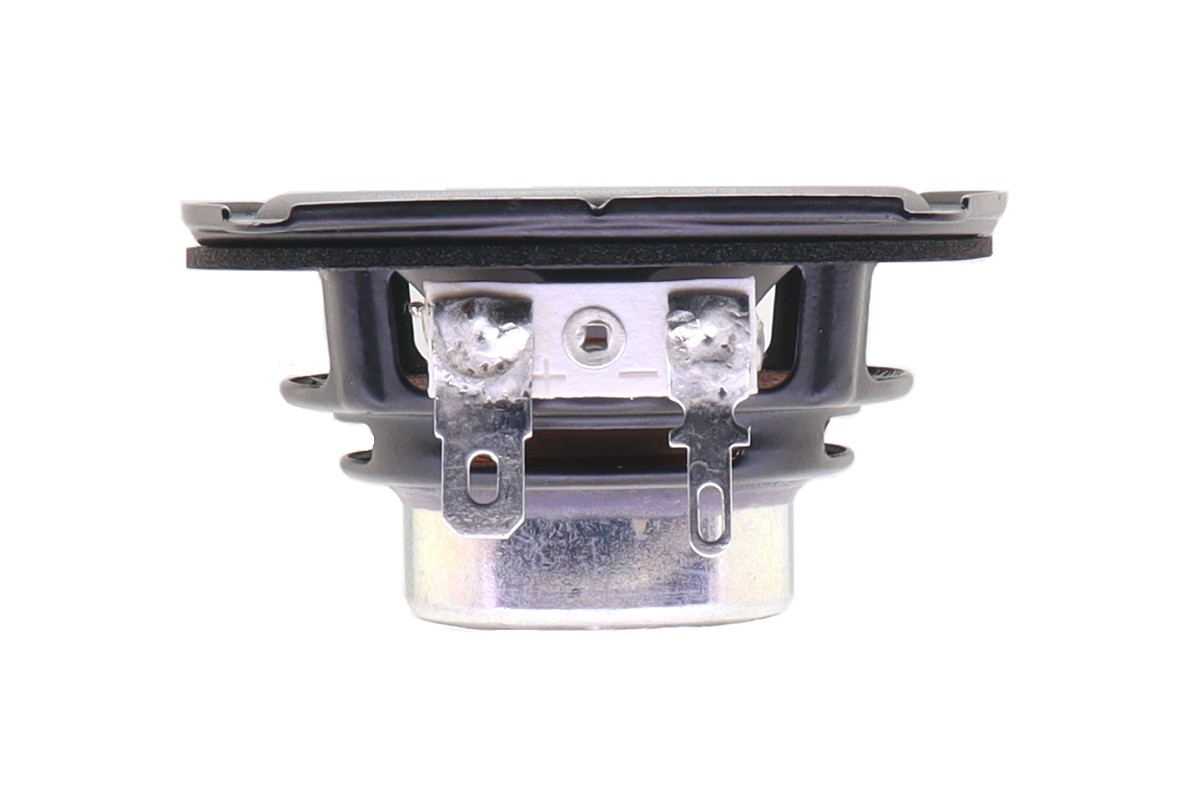

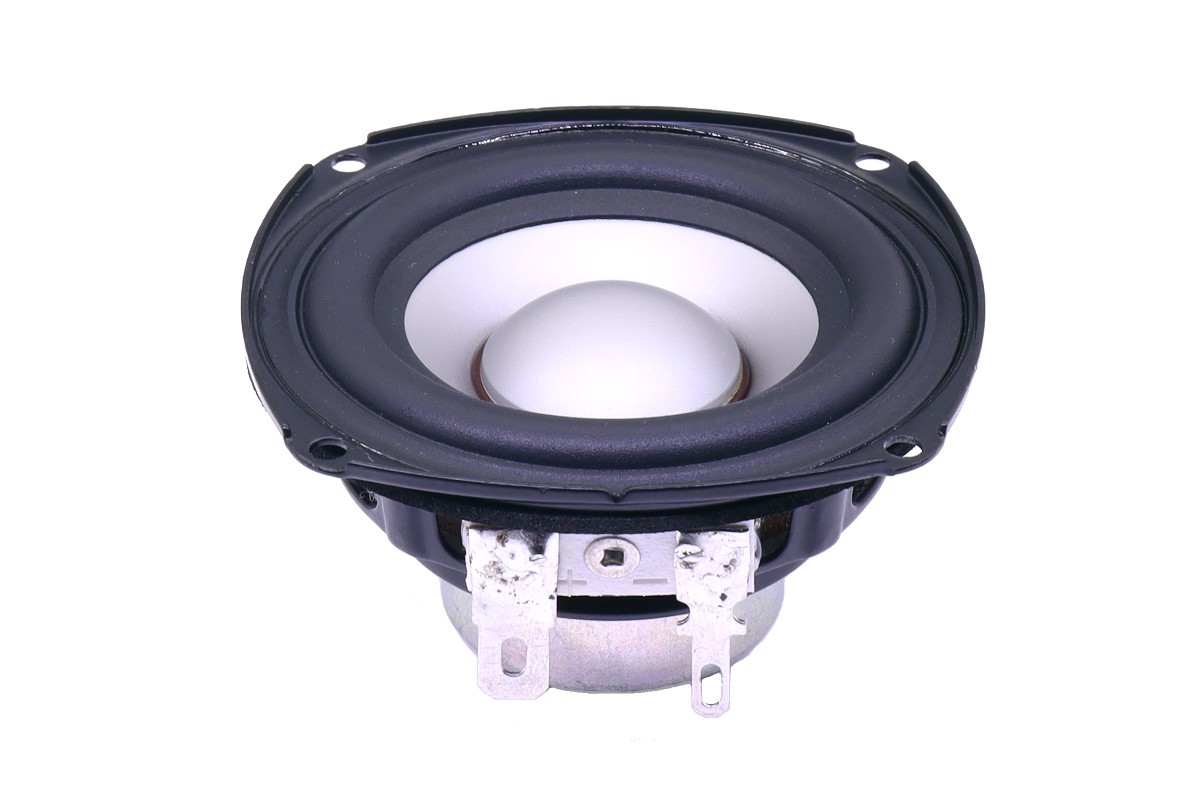

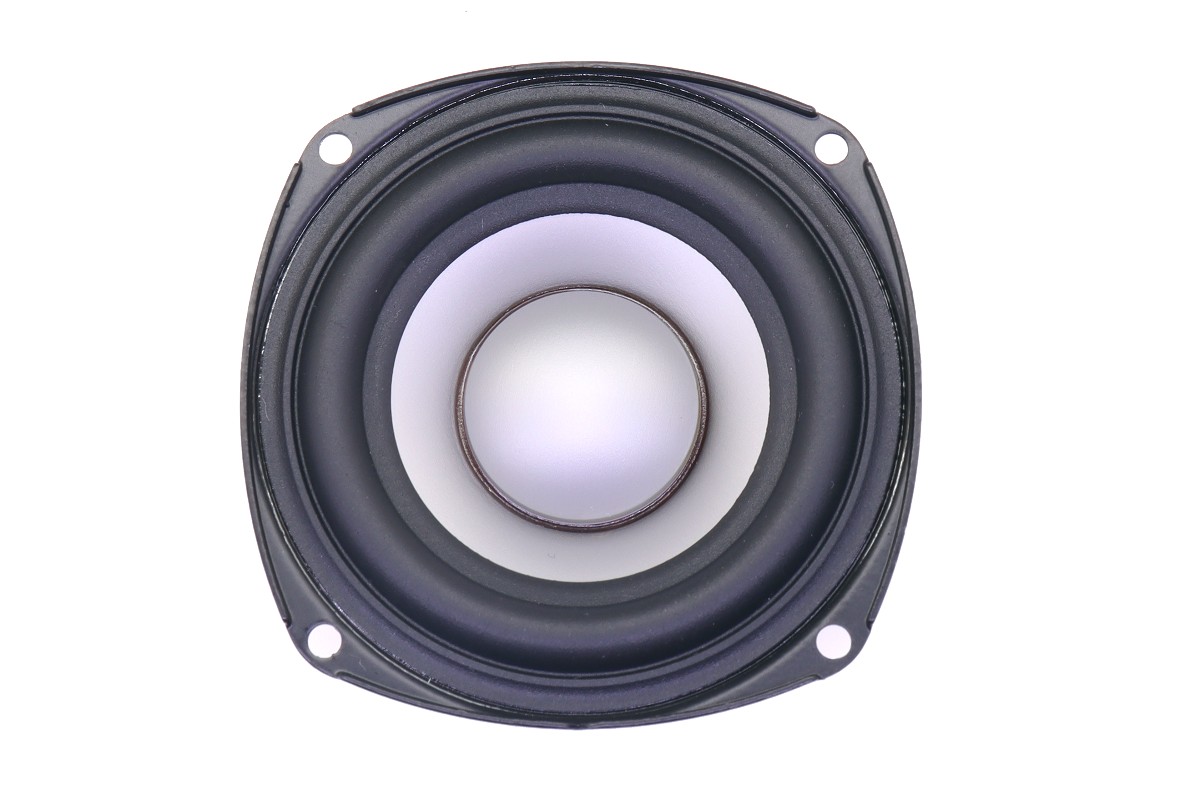

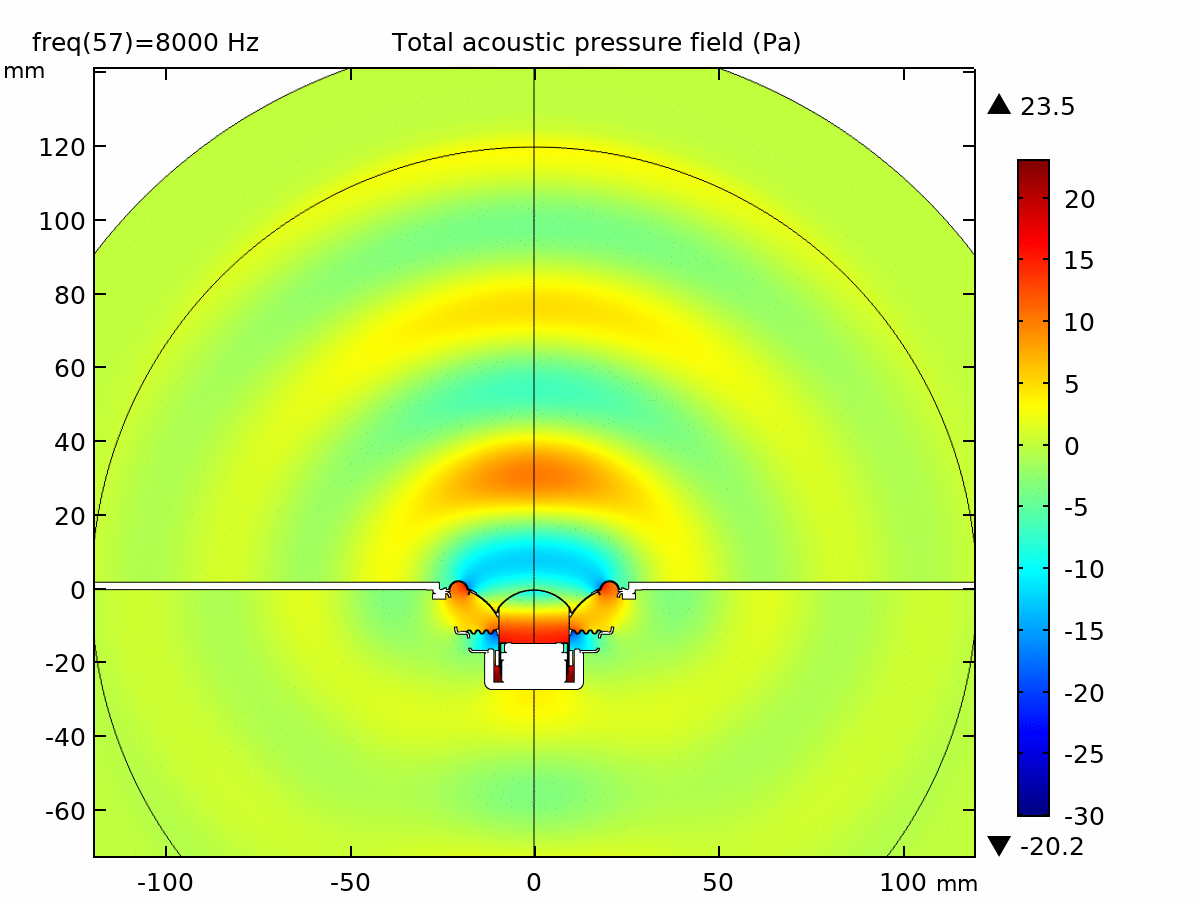

2" Aluminum Cone Fullrange
AUGFL2003-HM01
Category -
Fullrange
Characteristics -
Aluminum Alloy Diaphragm
2" Aluminum Cone Fullrange
AUGFL2003-HM01
Category -
Fullrange
Characteristics -
Aluminum Alloy Diaphragm
Description
This is a 2 inch 4 ohm with maximum 9W compact driver, it comprising 19mm voice coil with CCAW, Aluminum Cone body consist with NBR surround & Conex spider. A Neodymium motor structure. The continuous rated power handling of 6W with a peak power handling of 9W. This driver is perfect for use in any portable speaker applications.
2" Aluminum Cone Fullrange
AUGFL2003-HM01
Category -
Fullrange
Characteristics -
Aluminum Alloy Diaphragm
Features
- 2", Steel Frame
- 0.75" CCAW Voice Coil, Aluminum Former
- Aluminum Cone, Rubber Surround
- Neodymium Magnet Motor System
- Low Distortion (<3%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
2 Inch
135 Hz
3 Ohms
85 dB
0.56 Qts
6 W
Description
This is a 2 inch 4 ohm with maximum 9W compact driver, it comprising 19mm voice coil with CCAW, Aluminum Cone body consist with NBR surround & Conex spider. A Neodymium motor structure. The continuous rated power handling of 6W with a peak power handling of 9W. This driver is perfect for use in any portable speaker applications.
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 134.7 Hz |
| Mechanical Q factor [Qms] | 6.36 |
| Electrical Q factor [Qes] | 0.61 |
| Total Q factor [Qts] | 0.56 |
| Force factor [Bl] | 2.60 Tm |
| Mechanical resistance [Rms] | 0.25 kg/s |
| Moving mass [Mms] | 1.86 g |
| Compliance [Cms] | 0.75 mm/N |
| Effective diaph. diameter [D] | 41 mm |
| Effective piston area [Sd] | 13.2 cm² |
| Equivalent volume [Vas] | 0.1854 l |
| Sensitivity (2.83V/1m) | 85 dB |
| Ratio Bl/√Re | 0.98 N/√W |
| Ratio fs/Qts | 240.54 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 3 Ω |
| Minimum impedance [Zmin] | 3.52 Ω |
| Maximum impedance [Zo] | 18.55 Ω |
| DC resistance [Re] | 2.64 Ω |
| Voice coil inductance [Le] | 0.069 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 6 W |
| Long-term max power (IEC 18.2) | 9 W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 19.03 mm |
| Voice coil height | 4.2 mm |
| Voice coil layers | 4 |
| Height of gap | 2 mm |
| Linear excursion | ± 1.1 mm |
| Max mech. excursion | ± 4 mm |
| Unit weight | 0.057 kg |
