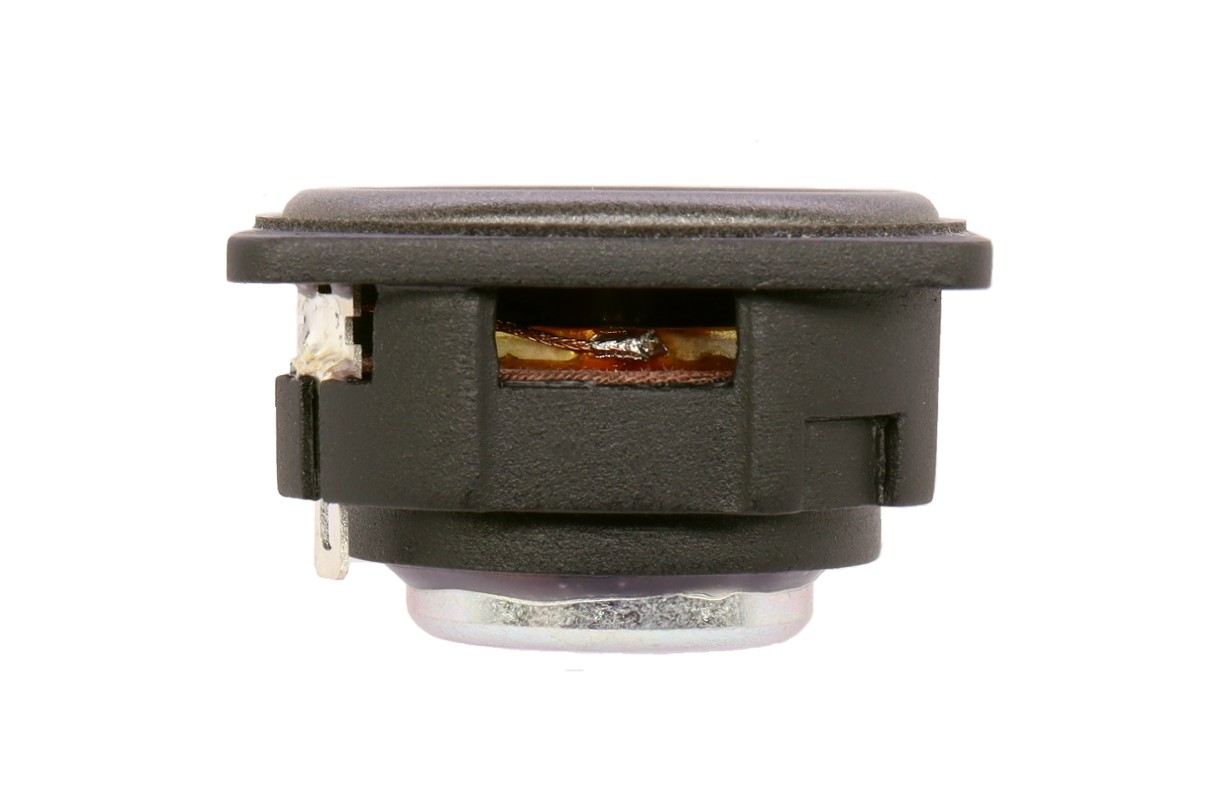

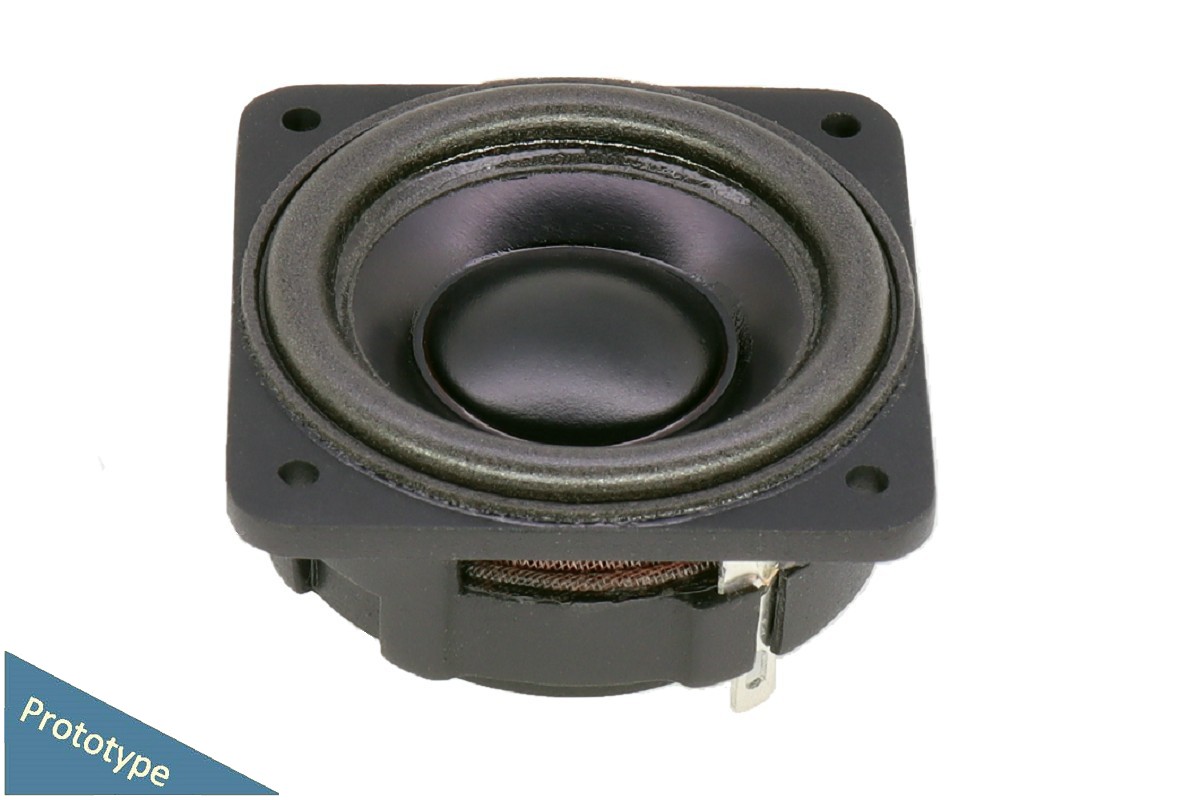

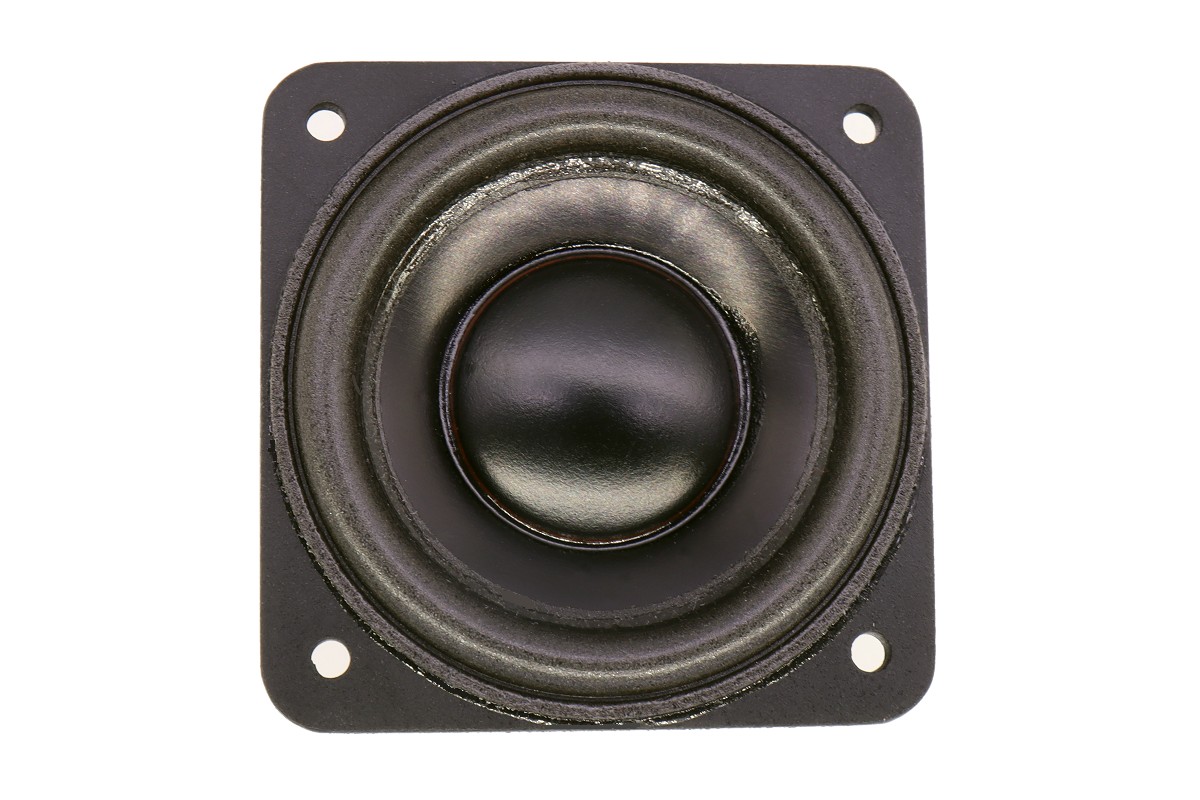

1.5" Aluminum Cone Fullrange
AUGFL0001-JN01
Category - Fullrange
Characteristics - Aluminum Alloy Diaphragm
AUGFL0001-JN01
AUGFL0001-JN01
AUGFL0001-JN01

1.5" Aluminum Cone Fullrange

AUGFL0001-JN01

Category - Fullrange
Characteristics - Aluminum Alloy Diaphragm
AUGFL0001-JN01
AUGFL0001-JN01
AUGFL0001-JN01
AUGFL0001-JN01
AUGFL0001-JN01
AUGFL0001-JN01
Description

This compact size of Fullrange1.5 inch driver features 0.8 inch CCAW voice coil, Aluminum diaphragm with foam surround and Neodymium magnet motor system. This fine unit is designed to reach high frequency response up to 40KHz with low distortion for Premium speaker applications.

1.5" Aluminum Cone Fullrange

AUGFL0001-JN01

Category - Fullrange
Characteristics - Aluminum Alloy Diaphragm
Features
  • 1.5”, Plastic Frame
  • 0.8” PESVCCAW Voice Coil , Aluminum Former
  • Aluminum Cone , Foam Surround
  • Neodymium Magnet Motor System
  • Effective Frequency Band:200Hz-40KHz
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
1.5 Inch
195 Hz
4 Ohms
83 dB
0.49 Qts
5 W
Description

This compact size of Fullrange1.5 inch driver features 0.8 inch CCAW voice coil, Aluminum diaphragm with foam surround and Neodymium magnet motor system. This fine unit is designed to reach high frequency response up to 40KHz with low distortion for Premium speaker applications.

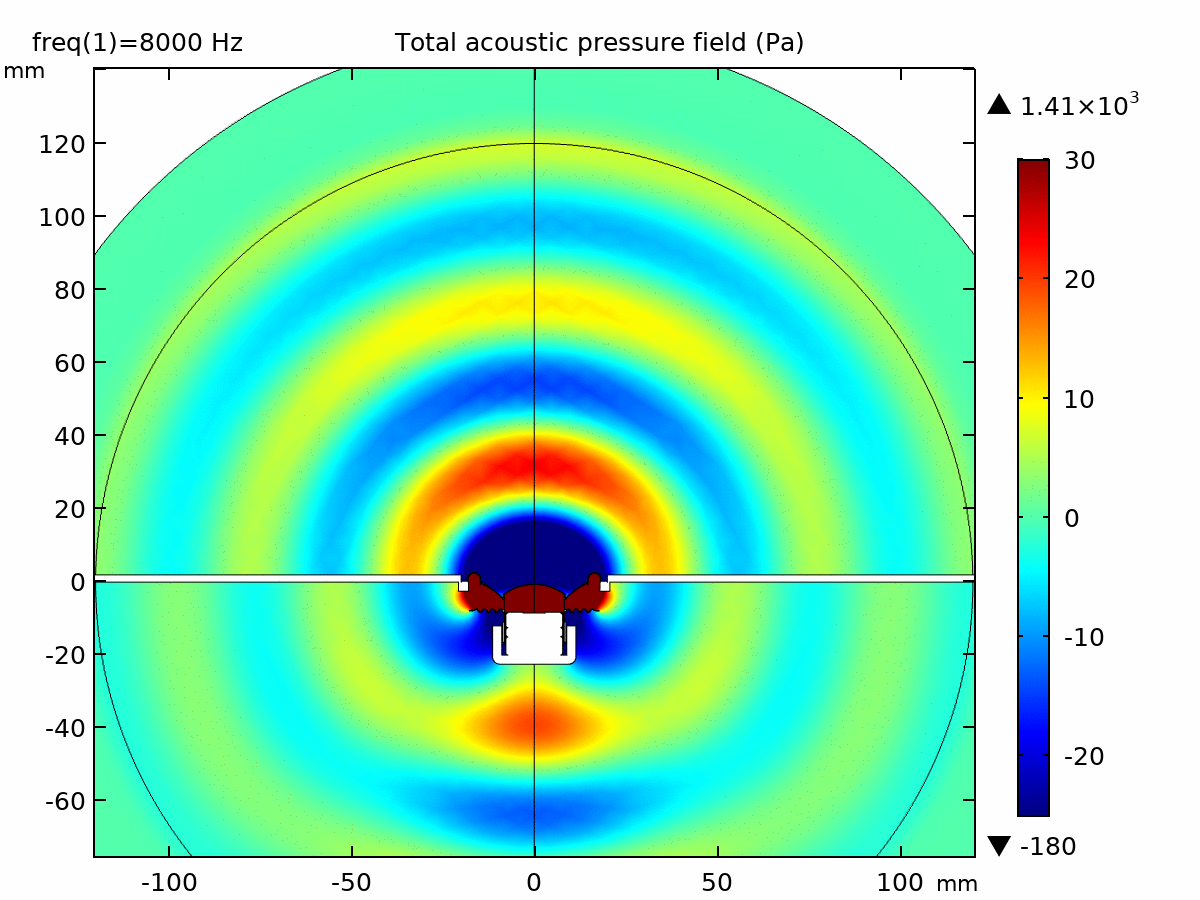

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 194.5 Hz
Mechanical Q factor [Qms] 1.96
Electrical Q factor [Qes] 0.662
Total Q factor [Qts]  0.495
Force factor [Bl] 2.47 Tm
Mechanical resistance [Rms] 0.615 kg/s
Moving mass [Mms]  0.986 g
Compliance [Cms] 0.161 mm/N
Effective diaph. diameter [D]  32.5 mm
Effective piston area [Sd] 8.29 cm²
Equivalent volume [Vas] 0.066 l
Sensitivity (2.83V/1m)  82.5 dB
Ratio Bl/√Re 1.35 N/√W
Ratio fs/Qts 392.92 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  4.03 Ω
Maximum impedance [Zo] 11.8 Ω
DC resistance [Re] 3.36 Ω
Voice coil inductance [Le]  0.031 mH
Power Handling
100h RMS noise test (IEC 18.4) 5 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 16.4 mm
Voice coil height 5.5 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 1.5 mm
Max mech. excursion ± 2.5 mm
Unit weight 0.044 kg
