1" Textile Dome Tweeter
AUGDL2001-JN01
Category - Tweeter
Characteristics -
AUGDL2001-JN01
AUGDL2001-JN01
AUGDL2001-JN01

1" Textile Dome Tweeter

AUGDL2001-JN01

Category - Tweeter
Characteristics -
AUGDL2001-JN01
AUGDL2001-JN01
AUGDL2001-JN01
AUGDL2001-JN01
AUGDL2001-JN01
AUGDL2001-JN01
Description

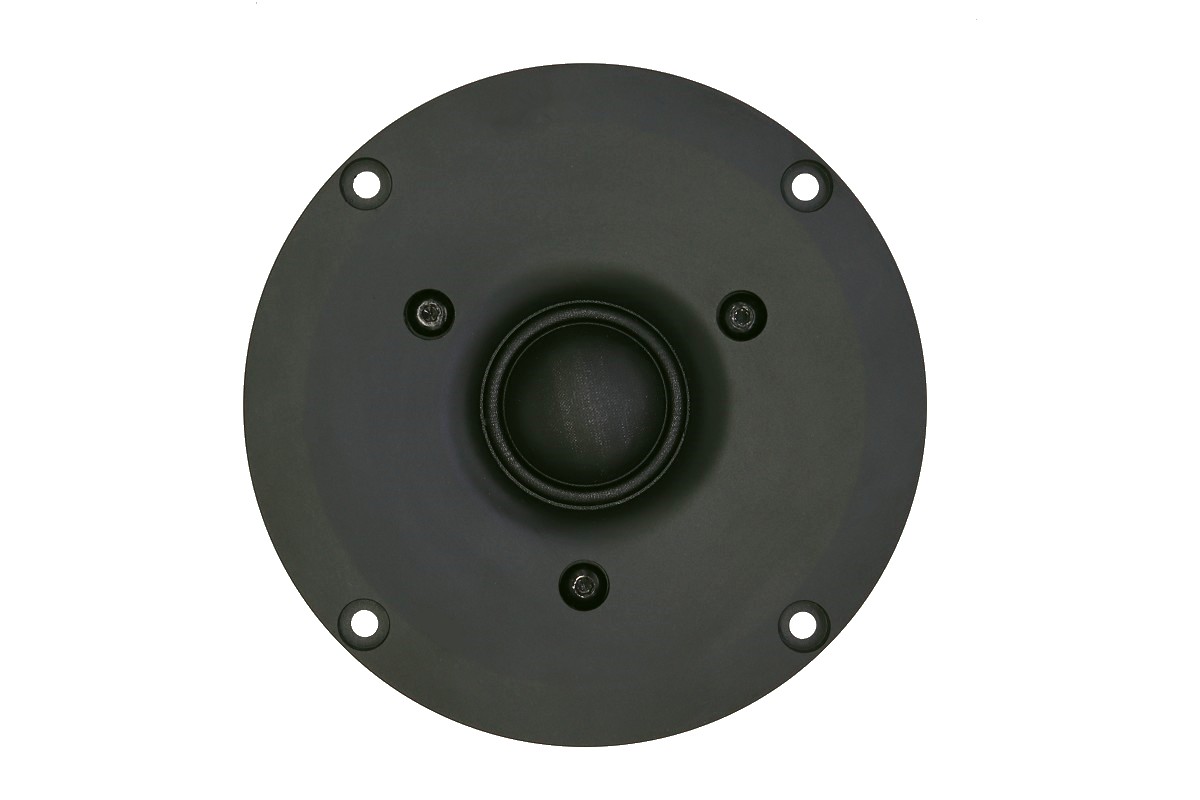

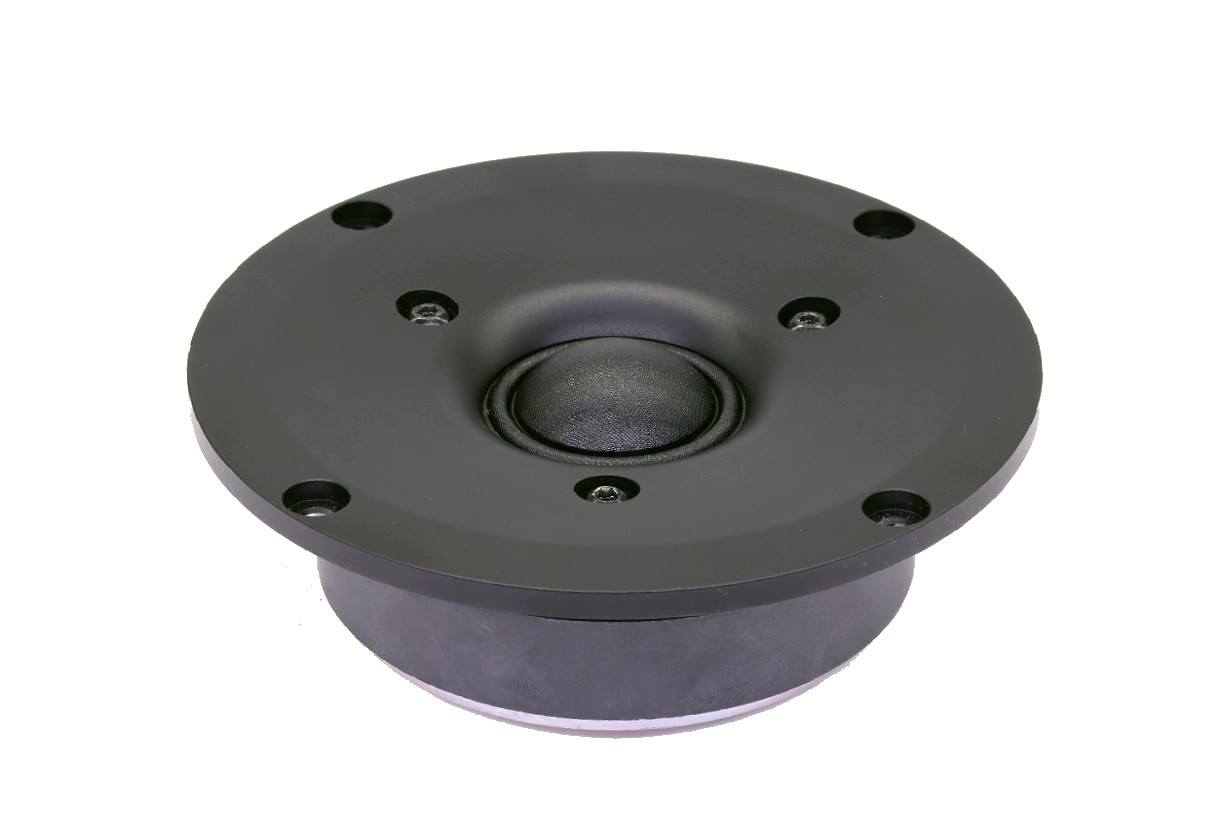

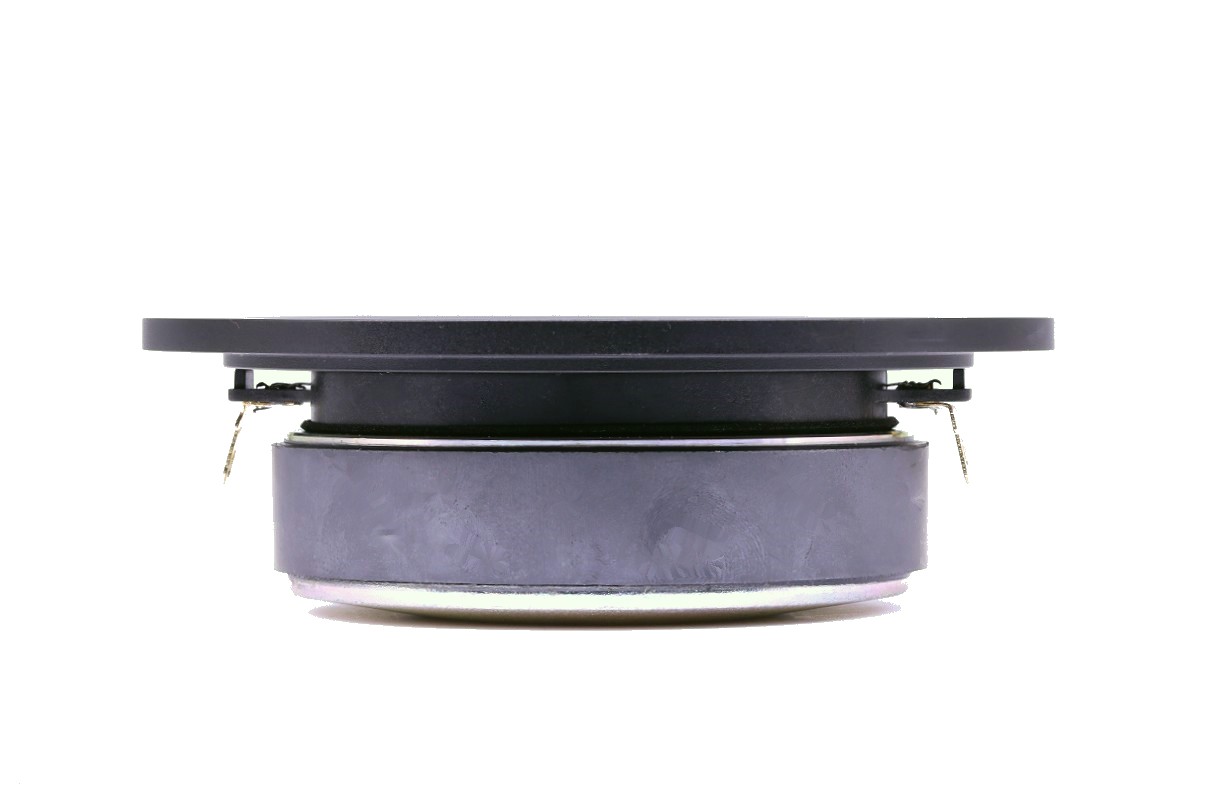

This 1 inch dome Tweeter features an 4 inch plastic front panel, CCAW voice coil and ferrofluid, which helps the driver dissipate heat. Silk dome with soft surround and ferrite magnet motor system not only achieve low distortion, but also the sound is clear and delicate.

1" Textile Dome Tweeter

AUGDL2001-JN01

Category - Tweeter
Characteristics -
Features
  • 4", Plastic Front Panel
  • 1" CCAW Voice Coil, Aluminum Former
  • Textile Dome Diaphragm
  • Ferrite Magnet Motor System
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
1 Inch
710 Hz
4 Ohms
90 dB
0.83 Qts
20 W
Description

This 1 inch dome Tweeter features an 4 inch plastic front panel, CCAW voice coil and ferrofluid, which helps the driver dissipate heat. Silk dome with soft surround and ferrite magnet motor system not only achieve low distortion, but also the sound is clear and delicate.

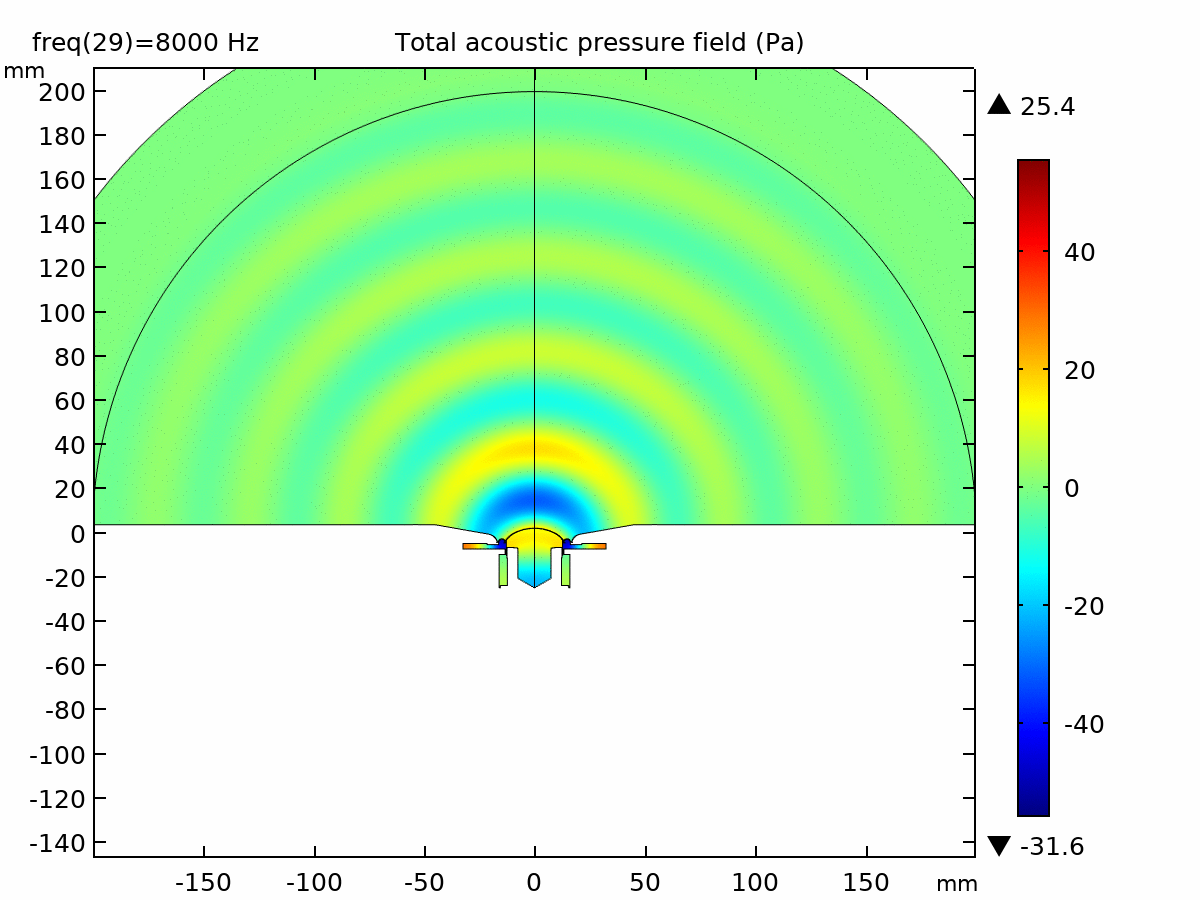

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 711 Hz
Mechanical Q factor [Qms] 2.63
Electrical Q factor [Qes] 1.21
Total Q factor [Qts]  0.83
Force factor [Bl] 2.10 Tm
Mechanical resistance [Rms] 0.58 kg/s
Moving mass [Mms]  0.35 g
Compliance [Cms] 0.145 mm/N
Effective diaph. diameter [D]  28 mm
Effective piston area [Sd] 6.16 cm²
Equivalent volume [Vas] 0.0078 l
Sensitivity (2.83V/1m)  90 dB
Ratio Bl/√Re 1.13 N/√W
Ratio fs/Qts 856.6 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.45 Ω
Maximum impedance [Zo] 9.7 Ω
DC resistance [Re] 3.45 Ω
Voice coil inductance [Le]  0.01 mH
Power Handling
100h RMS noise test (IEC 18.4) 20 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 2.1 mm
Voice coil layers 2
Height of gap 2.1 mm
Linear excursion ± 0.2 mm
Max mech. excursion ± - mm
Unit weight 0.66 kg
