Description

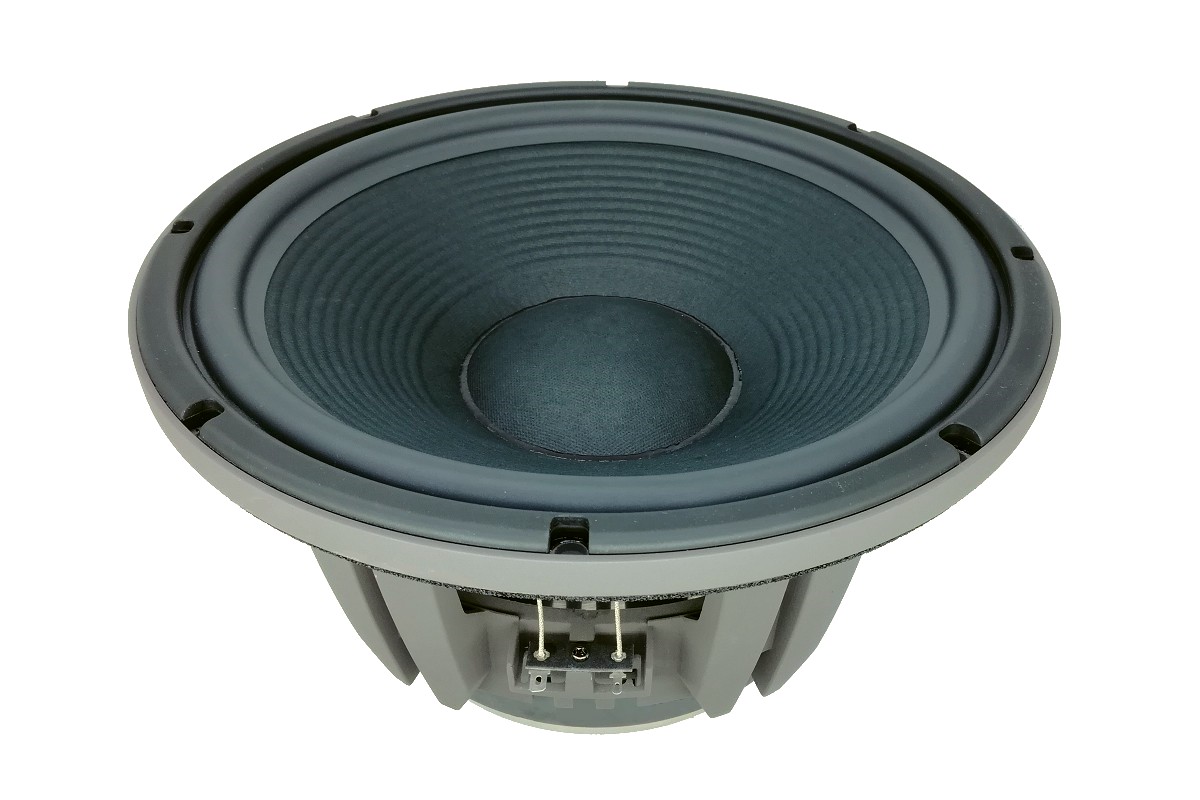

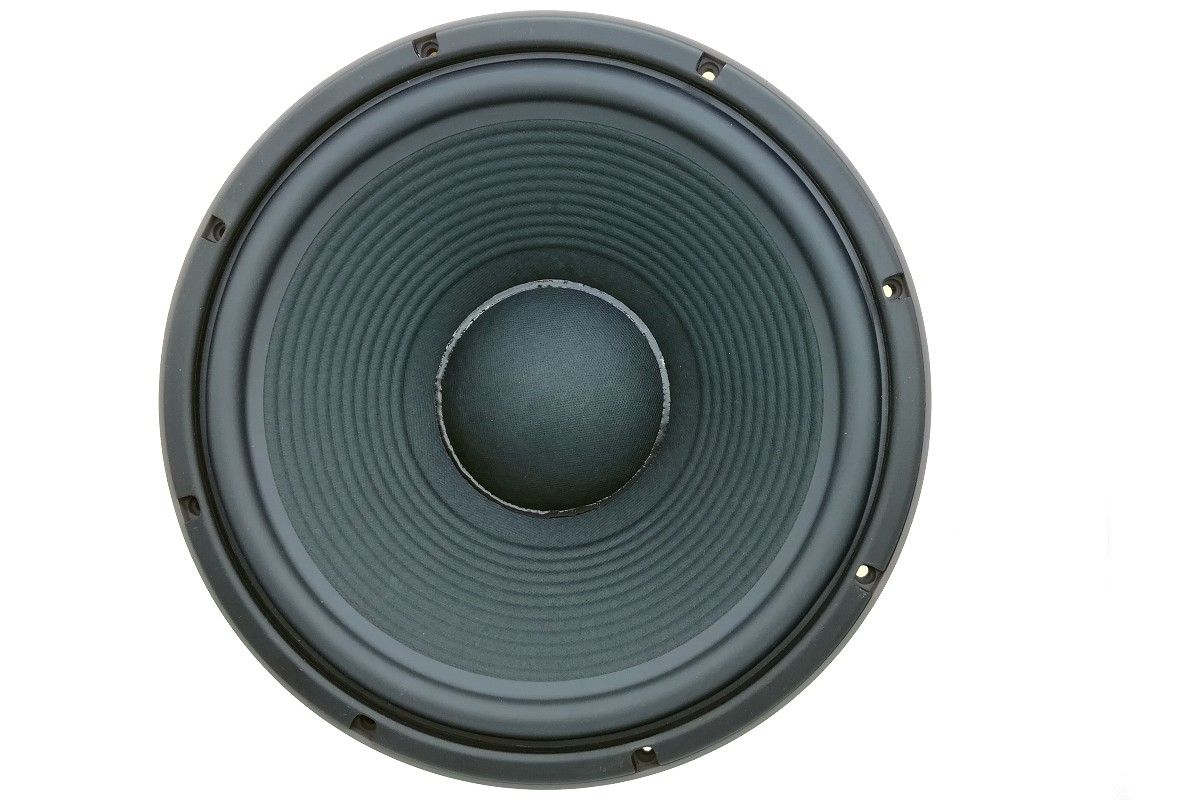

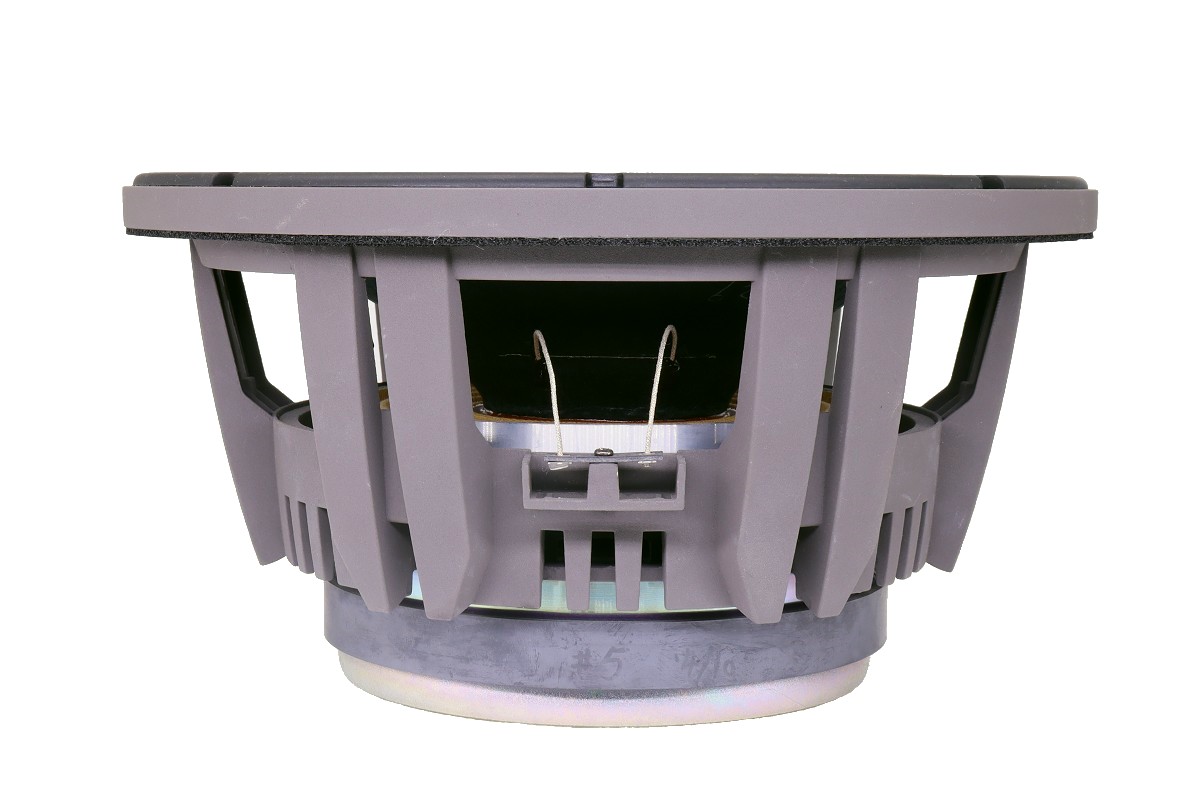

This 8 ohm, 12 inch Woofer driver features a strong Ferrite magnet motor with long-throw 3” CCAW voice coil to provide the high excursion performance, customized aluminum shorting ring to eliminate the distortion at low frequency, semi-pressed paper cone collocation with rubber surround and aluminum frame to create sonorous sound experience. This woofer is one of the kind for the high power woofer sound systems.

12" Paper Cone Woofer

ASDWDB502-0800

Category - Woofer
Characteristics -
Features
  • 12”, Aluminum Die-cast Frame
  • 3" CCAW Voice Coil, GFB-G For mer
  • Paper Cone, Rubber Surround
  • Ferrite Magnet Motor System
  • High Sensitivity
  • Copper-Shorting Ring
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
12 Inch
34 Hz
8 Ohms
95 dB
0.28 Qts
250 W
Description

This 8 ohm, 12 inch Woofer driver features a strong Ferrite magnet motor with long-throw 3” CCAW voice coil to provide the high excursion performance, customized aluminum shorting ring to eliminate the distortion at low frequency, semi-pressed paper cone collocation with rubber surround and aluminum frame to create sonorous sound experience. This woofer is one of the kind for the high power woofer sound systems.

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 34Hz
Mechanical Q factor [Qms] 8.45
Electrical Q factor [Qes] 0.299
Total Q factor [Qts]  0.287
Force factor [Bl]  18.34Tm
Mechanical resistance [Rms]  2.117kg/s
Moving mass [Mms]   84.73 g
Compliance [Cms]  0.265mm/N
Effective diaph. diameter [D]   260 mm
Effective piston area [Sd]  530.93cm²
Equivalent volume [Vas]  105.64l
Sensitivity (2.83V/1m)   95dB
Ratio Bl/√Re  7.875N/√W
Ratio fs/Qts  118.4Hz
Electrical Data
Nominal impedance [Zn]  8 Ω
Minimum impedance [Zmin]  6.37 Ω
Maximum impedance [Zo] 97.06 Ω
DC resistance [Re] 5.5 Ω
Voice coil inductance [Le]  0.41 mH
Power Handling
100h RMS noise test (IEC 18.4) 250 W
Long-term max power (IEC 18.2) -  W
Voice Coil & Magnet Data
Voice coil diameter 75.5 mm
Voice coil height 20.5 mm
Voice coil layers 1
Height of gap 13 mm
Linear excursion ± 3.75mm
Max mech. excursion ± -mm
Unit weight 10 kg
