2" Paper Cone Midrange
ASDML0800-0200
Category - Midrange
Characteristics -
ASDML0800-0200
ASDML0800-0200
ASDML0800-0200

2" Paper Cone Midrange

ASDML0800-0200

Category - Midrange
Characteristics -
ASDML0800-0200
ASDML0800-0200
ASDML0800-0200
ASDML0800-0200
ASDML0800-0200
ASDML0800-0200

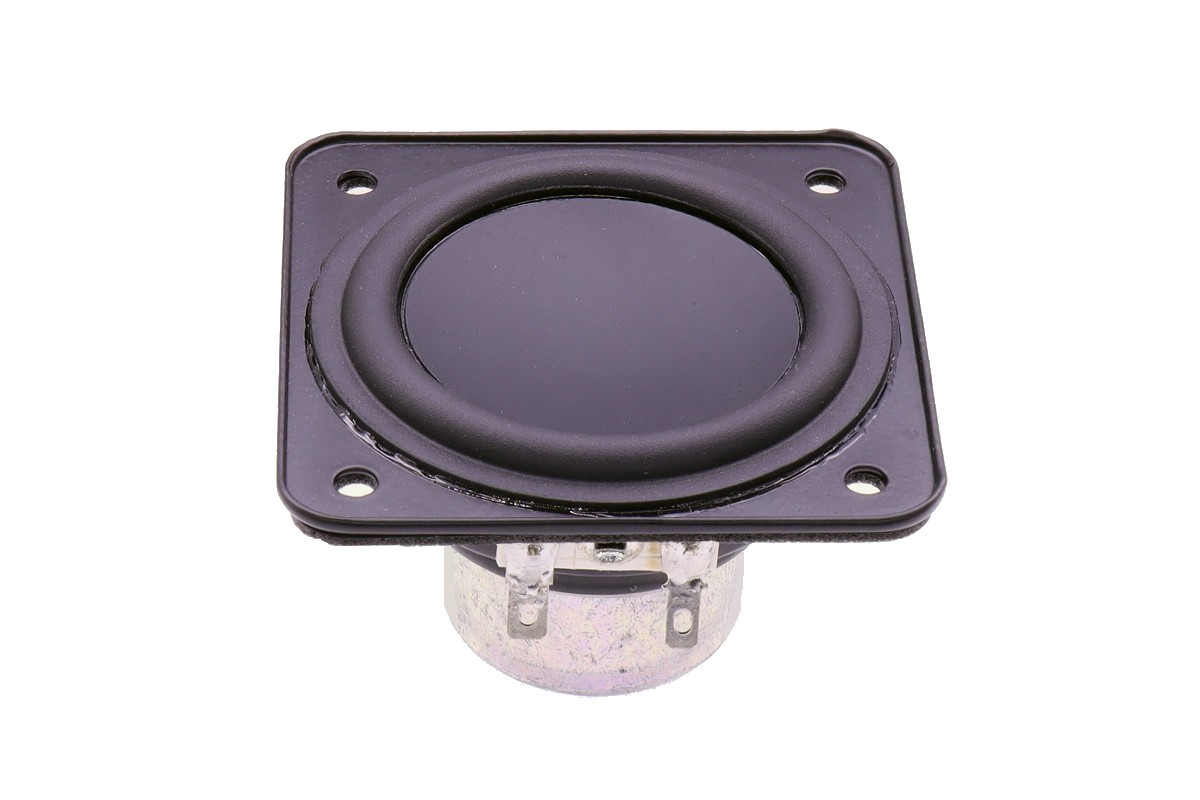

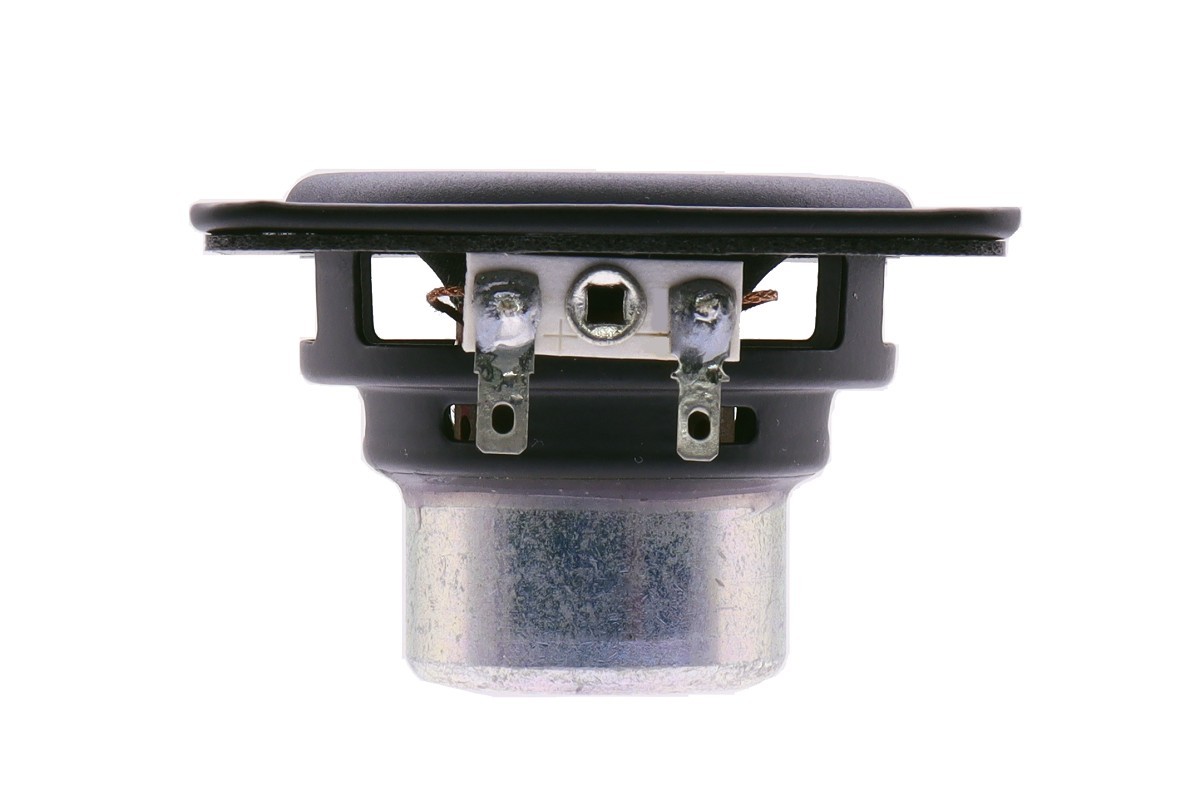

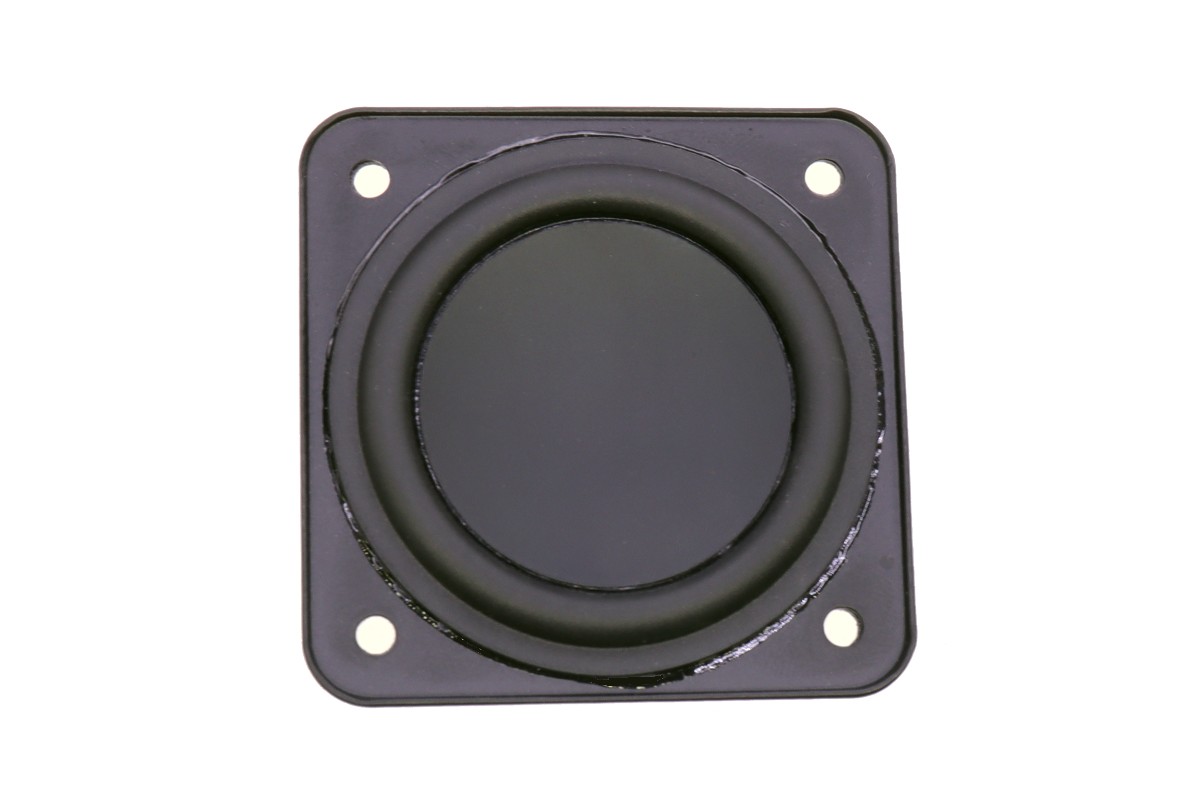

Description

This 2 inch 2 ohm Midrange driver, with 0.8 inch voice coil copper wire, Kapton former, paper cone and damped rubber surround. It contains dual Neodymium magnet motor system which provides maximum flux in a compact package. The Kapton former and basket under spider are vented holes so as to reduce air compression effects and aid cooling of the motor under high excursion conditions.

2" Paper Cone Midrange

ASDML0800-0200

Category - Midrange
Characteristics -
Features
  • 2”, Steel Frame
  • 0.8” CCAW Voice Coil, Kapton Former
  • PULP Diaphragm and Coating Black Dust Cap
  • Dual Neodymium Magnet Motor System
  • Low Distortion (<3%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
2 Inch
180 Hz
2 Ohms
83 dB
0.5 Qts
8 W
Description

This 2 inch 2 ohm Midrange driver, with 0.8 inch voice coil copper wire, Kapton former, paper cone and damped rubber surround. It contains dual Neodymium magnet motor system which provides maximum flux in a compact package. The Kapton former and basket under spider are vented holes so as to reduce air compression effects and aid cooling of the motor under high excursion conditions.

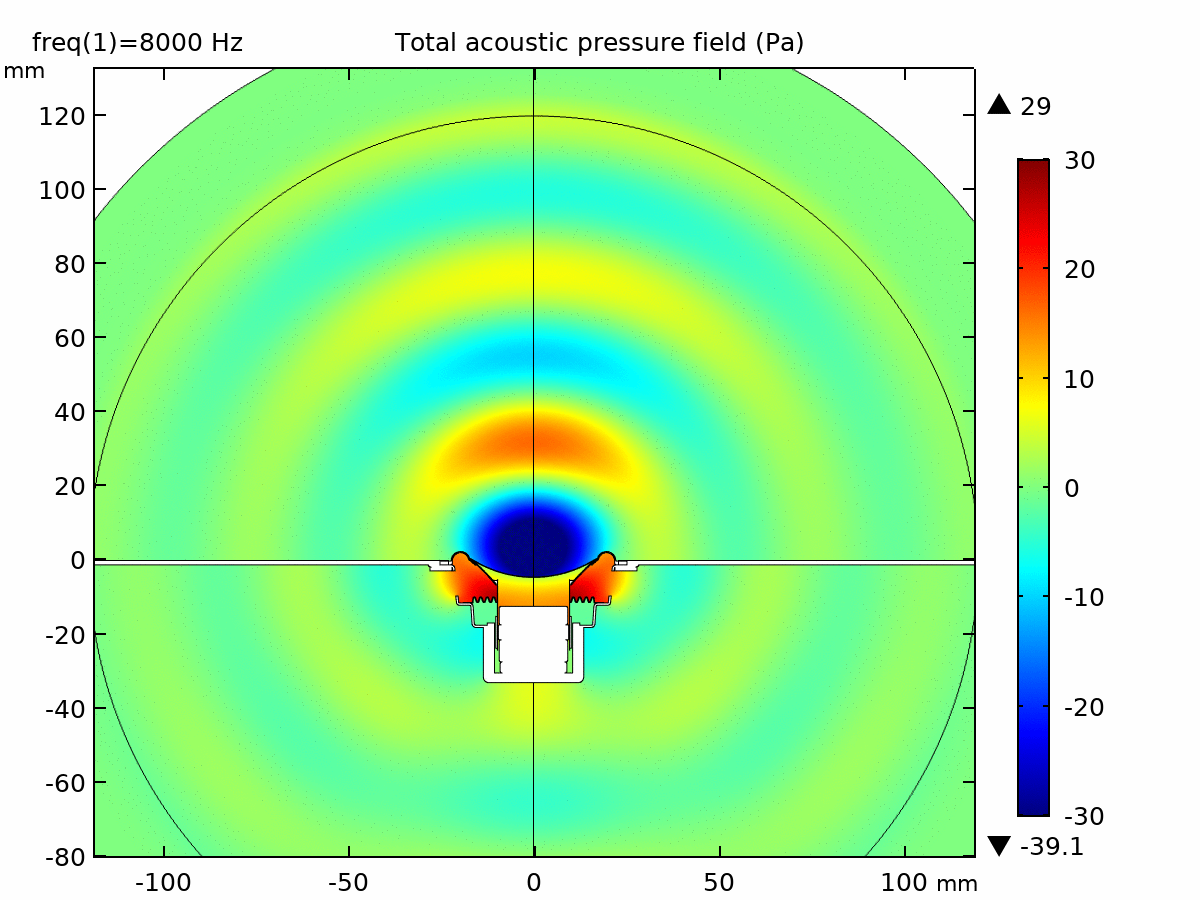

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 180.9 Hz
Mechanical Q factor [Qms] 8.733
Electrical Q factor [Qes] 0.526
Total Q factor [Qts]  0.505
Force factor [Bl] 2.657Tm
Mechanical resistance [Rms] 0.205 kg/s
Moving mass [Mms]  1.577 g
Compliance [Cms] 0.491 mm/N
Effective diaph. diameter [D]  41 mm
Effective piston area [Sd] 13.2 cm²
Equivalent volume [Vas] 0.121 l
Sensitivity (2.83V/1m)  83 dB
Ratio Bl/√Re 1.829 N/√W
Ratio fs/Qts 358.2 Hz
Electrical Data
Nominal impedance [Zn]  2 Ω
Minimum impedance [Zmin]  2.58 Ω
Maximum impedance [Zo] 20.79 Ω
DC resistance [Re] 2.11 Ω
Voice coil inductance [Le]  0.071 mH
Power Handling
100h RMS noise test (IEC 18.4) 8 W
Long-term max power (IEC 18.2) 10 W
Voice Coil & Magnet Data
Voice coil diameter 19.4 mm
Voice coil height 6.0 mm
Voice coil layers 2
Height of gap 4 mm
Linear excursion ± 1.0 mm
Max mech. excursion ± 5.0 mm
Unit weight 0.089 kg
