Description

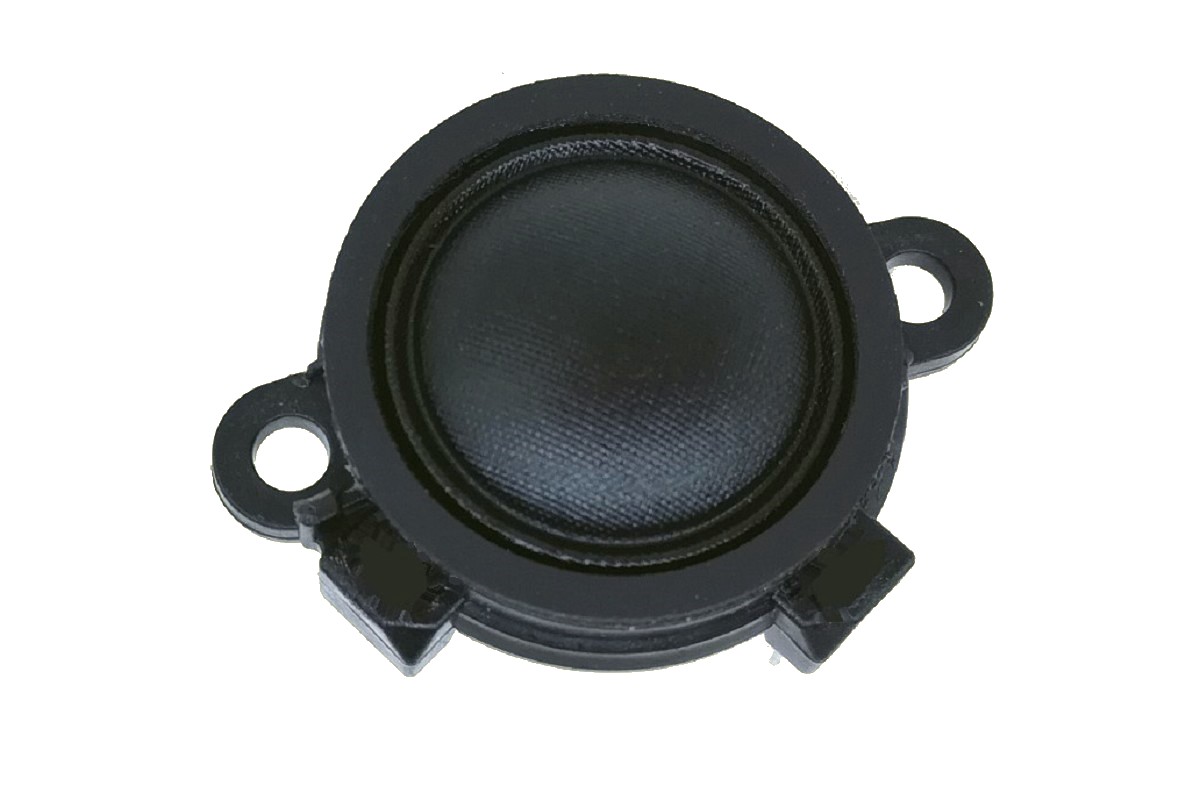

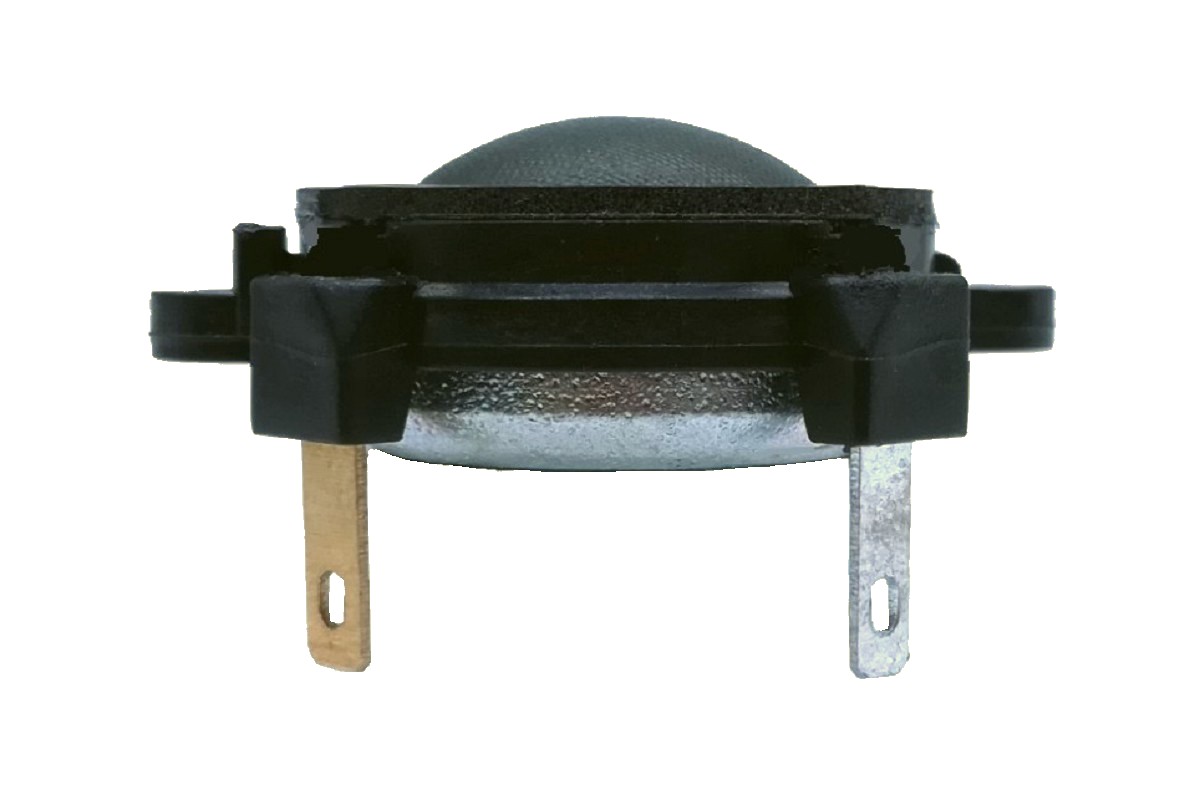

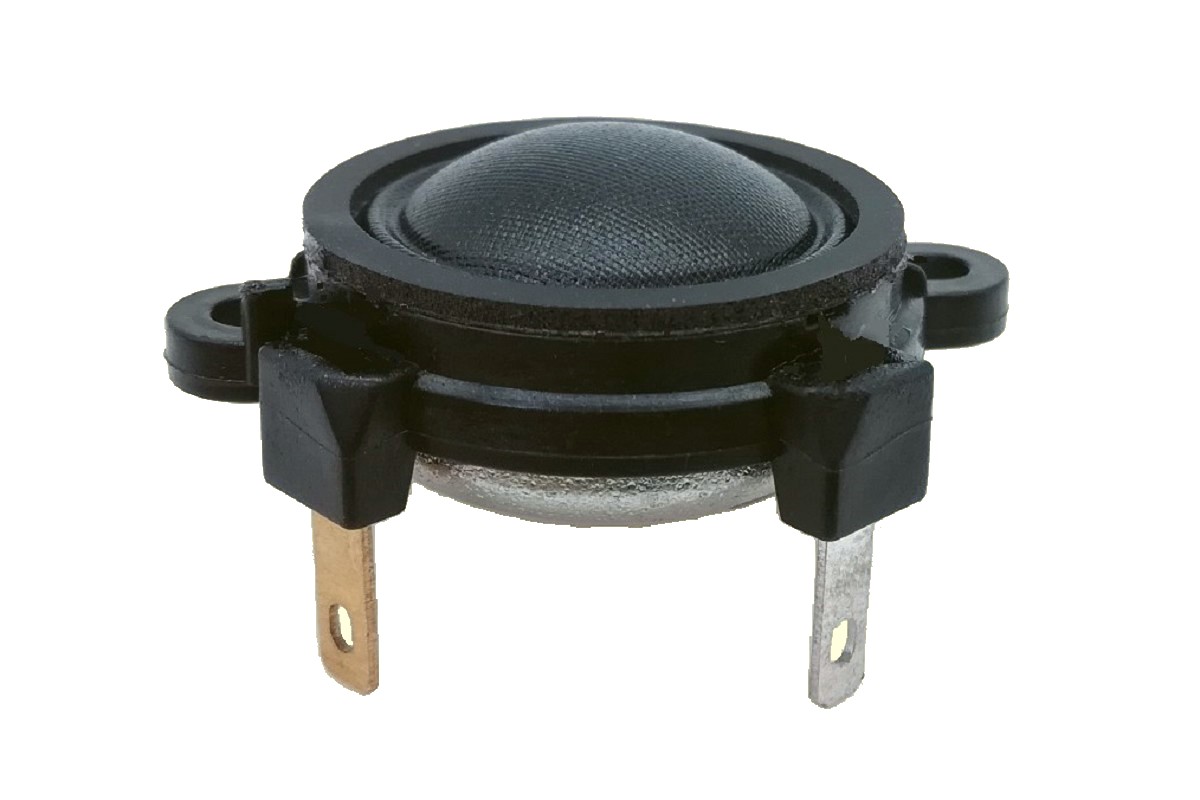

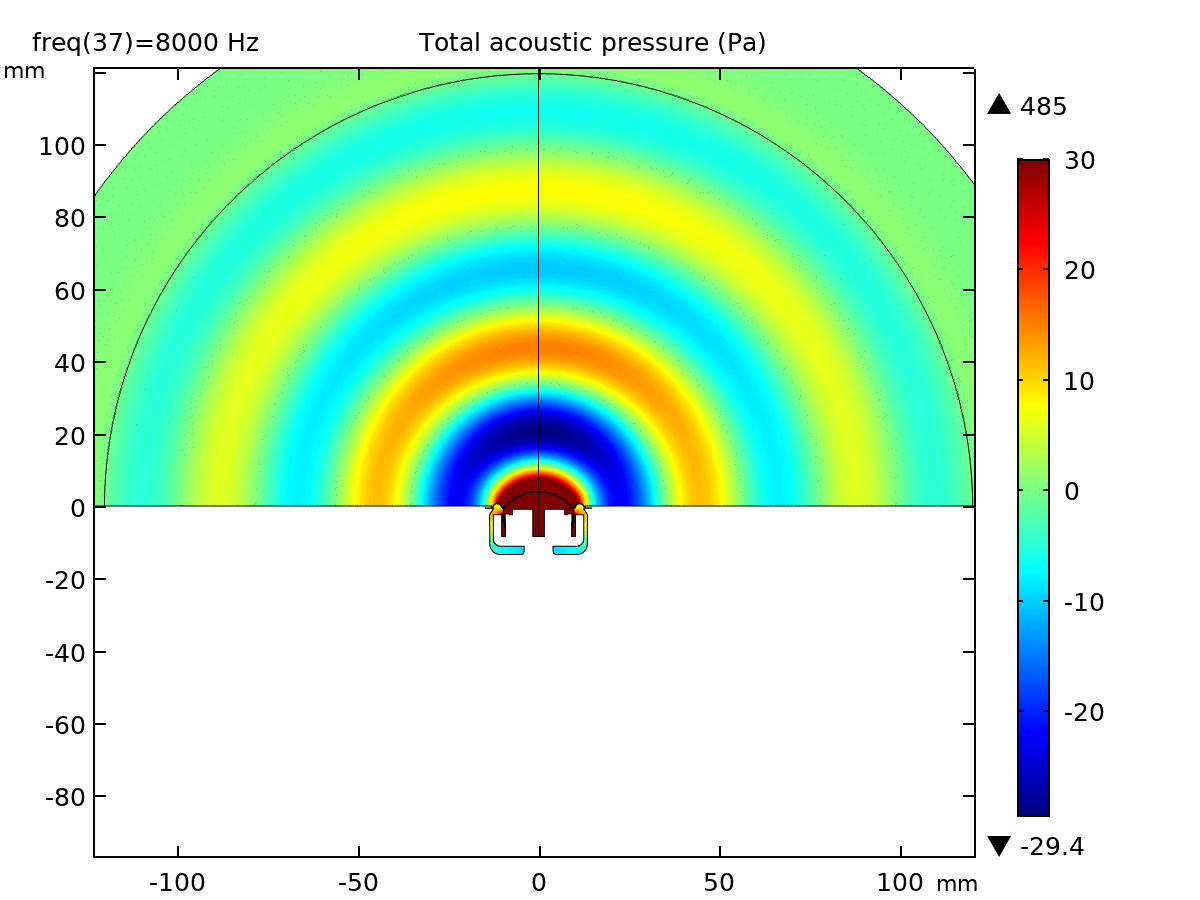

This compact Tweeter features an 4 ohm 0.6 inch voice coil, a textile dome diaphragm and Neodymium magnet motor system. This Tweeter uses CCAW, which further extend the high frequency response and is up to the standard of IPX7. The clever design of a circular frame is easy to install into customized faceplates.
Features
- 0.6", Plastic Frame
- Textile Dome Diaphragm
- Neodymium Magnet Motor System
- Water Proof Speakers IPX7
- Low Distortion (<3%)
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
0.6 Inch
1780 Hz
4 Ohms
86 dB
1.92 Qts
10 W
Description
This compact Tweeter features an 4 ohm 0.6 inch voice coil, a textile dome diaphragm and Neodymium magnet motor system. This Tweeter uses CCAW, which further extend the high frequency response and is up to the standard of IPX7. The clever design of a circular frame is easy to install into customized faceplates.
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 1780 Hz |
| Mechanical Q factor [Qms] | 5.143 |
| Electrical Q factor [Qes] | 3.065 |
| Total Q factor [Qts] | 1.921 |
| Force factor [Bl] | 1.387 Tm |
| Mechanical resistance [Rms] | 0.284 kg/s |
| Moving mass [Mms] | 0.131 g |
| Compliance [Cms] | 0.061 mm/N |
| Effective diaph. diameter [D] | 18 mm |
| Effective piston area [Sd] | 2.54 cm² |
| Equivalent volume [Vas] | 0.0006 l |
| Sensitivity (2.83V/1m) | 86 dB |
| Ratio Bl/√Re | 0.69 N/√W |
| Ratio fs/Qts | 926.6 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 4 Ω |
| Minimum impedance [Zmin] | 4.27 Ω |
| Maximum impedance [Zo] | 10.0 Ω |
| DC resistance [Re] | 4.03 Ω |
| Voice coil inductance [Le] | 0.028 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 10 W |
| Long-term max power (IEC 18.2) | - W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 16.4 mm |
| Voice coil height | 2 mm |
| Voice coil layers | 2 |
| Height of gap | 2 mm |
| Linear excursion | ± 0 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 0.022 kg |
